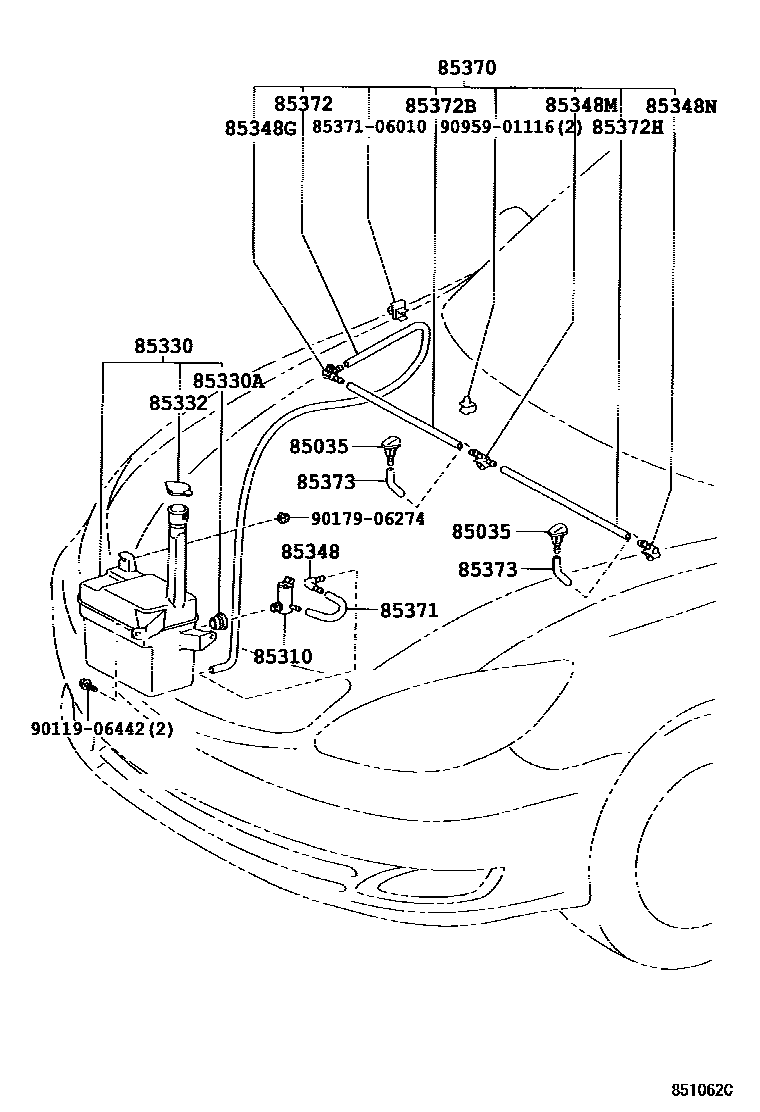

Toyota CAMRY 挡风玻璃清洗器 — Figure 8503
Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-AA041 · 85381-AA042 |
| 85310 | Windshield washer motor and pump assembly | 85330-YC030 |
| 85330 | Windshield washer fluid tank assembly | 85315-YC070 |
| 85330A | Windshield washer fluid tank bushing | 90069-50002 |
| 85332 | Windshield washer fluid tank cap | 85316-16070 |
| 85348 | Windshield washer hose connector No. 1 | 85355-20200 |
| 85348G | Windshield washer hose connector No. 2 | 85377-06020 |
| 85348M | No. 3 windshield washer hose connector | 85378-AA010 |
| 85348N | No. 4 windshield washer hose connector | 85375-AA020 |
| 85370 | Windshield washer hose assembly | 85370-YC060 |
| 85371 | Windshield washer hose (from motor to connector) | 85355-14481 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 85374-AA060 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 85374-AA040 |
| 85372H | No. 3 windshield washer hose (from connector to connector) | 85374-AA050 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33024 |
