Toyota CAMRY 防盗装置 — Figure 8424

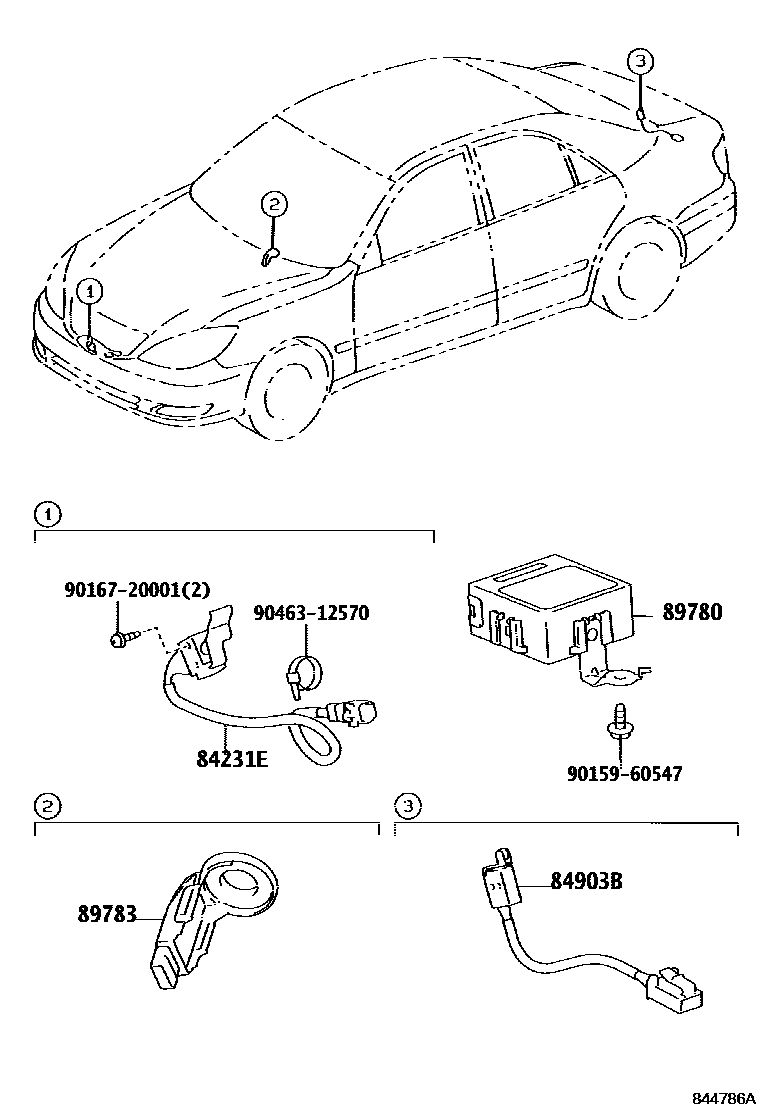

Toyota CAMRY EPC diagram 8424, 防盗装置, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84231E | Door control light switch (anti-theft) | 84231-33100 |
| 84903B | Door unlock switch sub-assembly | 84903-06010 · 84903-33160 |
| 89780 | Transceiver key ECU assembly | 89780-33090 · 89780-33180 |
| 89783 | transceiver key amplifier | 89783-YC010 |
