Toyota CAMRY ABS 和 VSC — Figure 8414

Toyota CAMRY EPC diagram 8414, ABS 和 VSC, with 1 images and 7 PNC and OE references.

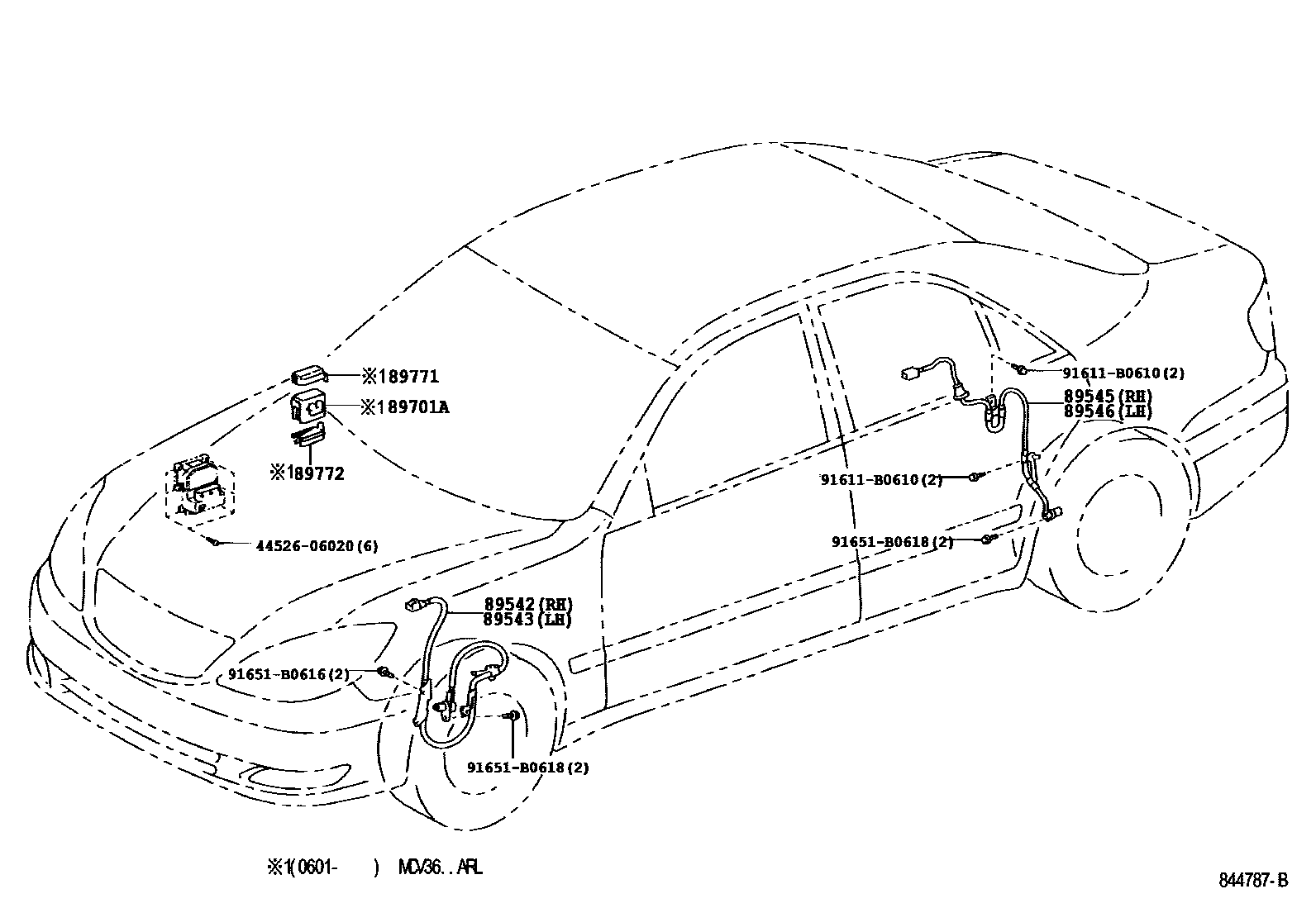

Toyota CAMRY ABS 和 VSC EPC diagram — 844787B
ABS 和 VSC — 844787B (200208 – 999999)

PNC and OE references

PNCPart nameOE numbers
89542Right front wheel speed sensor89542-33080
89543Left front wheel speed sensor89543-33030
89545Right rear wheel speed sensor89545-33020
89546Left rear wheel speed sensor89546-33020
89701AABS relay box sub-assembly89701-12020
89771ABS relay box upper cover89771-YC010
89772ABS relay box lower cover89772-12020
