Toyota CAMRY 电子燃油喷射系统 — Figure 8404

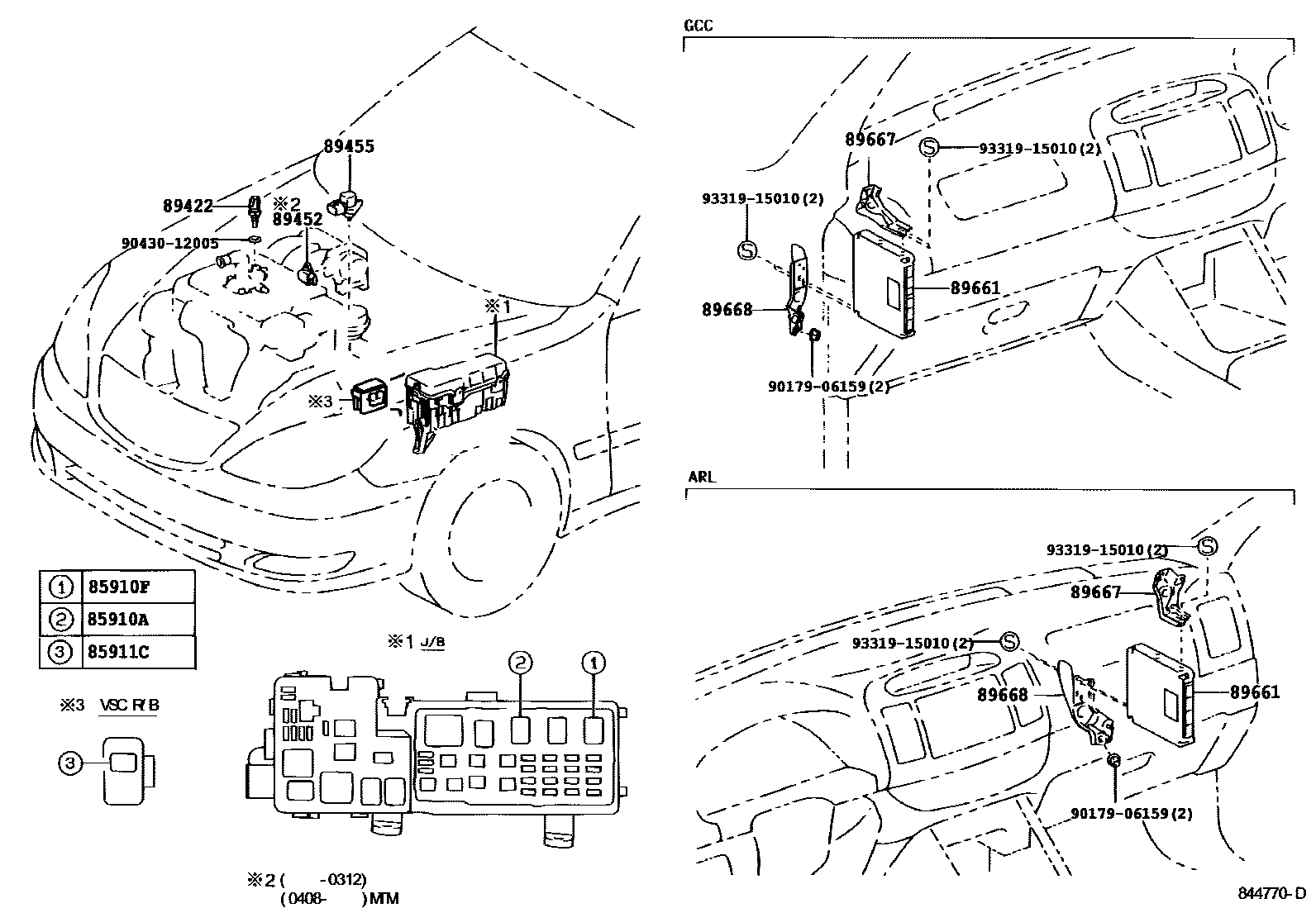

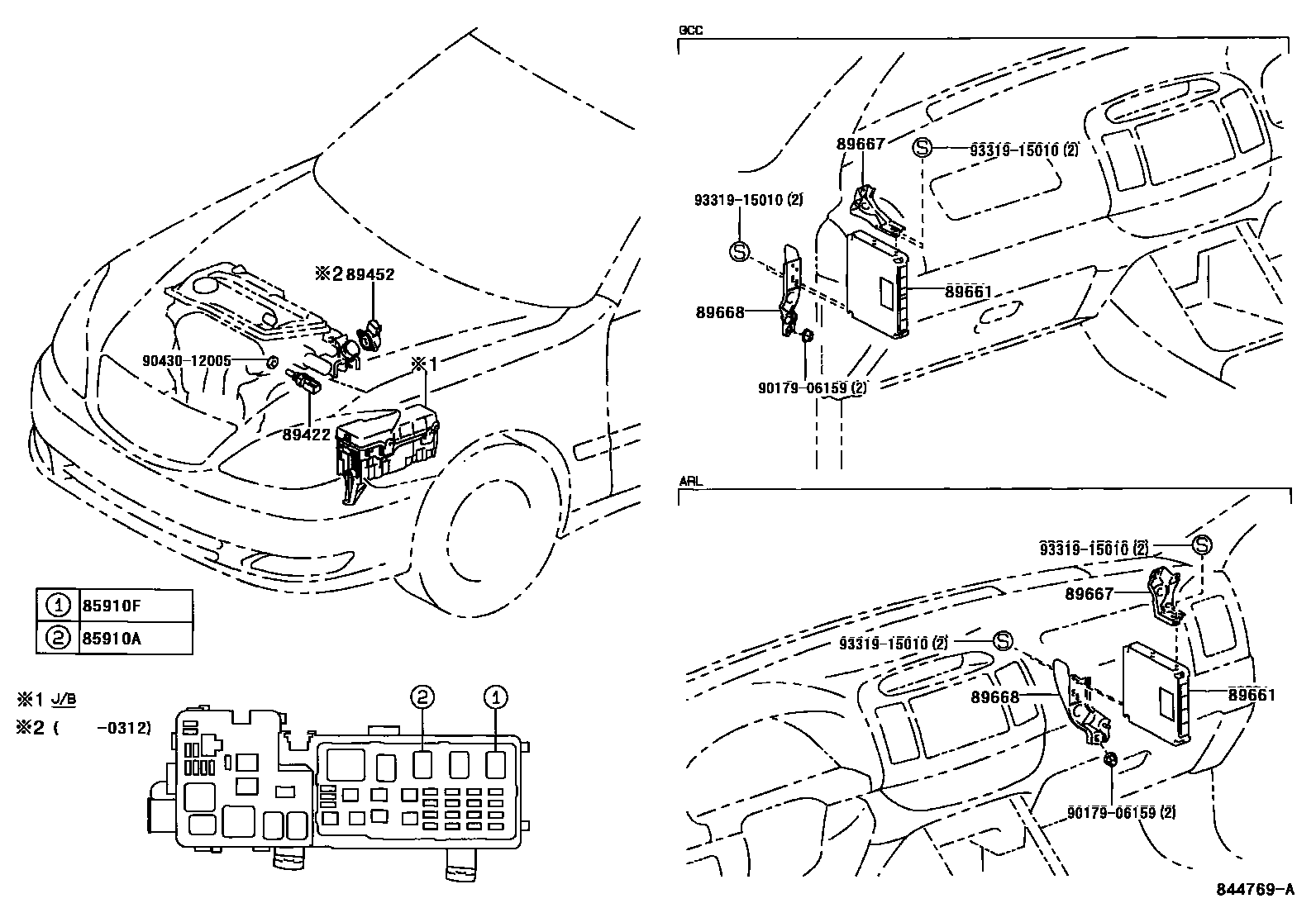

Toyota CAMRY EPC diagram 8404, 电子燃油喷射系统, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 90080-87008 |
| 85910F | ECU relay (for EFI) | 90080-87008 |
| 85911C | EFI2 relay | 90080-87008 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33020 · 89422-33030 · 89422-35010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-06020 · 89452-33030 |
| 89455 | EGR valve position sensor | 89455-33020 |
| 89661 | Engine control ECU | 89661-33D70 · 89661-33D80 · 89661-33E10 · 89661-YY020 · 89666-06420 · 89666-06430 · 89666-06440 · 89666-06450 · 89666-06460 · 89666-06470 |
| 89667 | Engine control ECU bracket | 89667-33120 · 89667-33130 |
| 89668 | No. 2 engine control ECU bracket | 89668-33150 · 89668-33160 · 89668-33170 |
