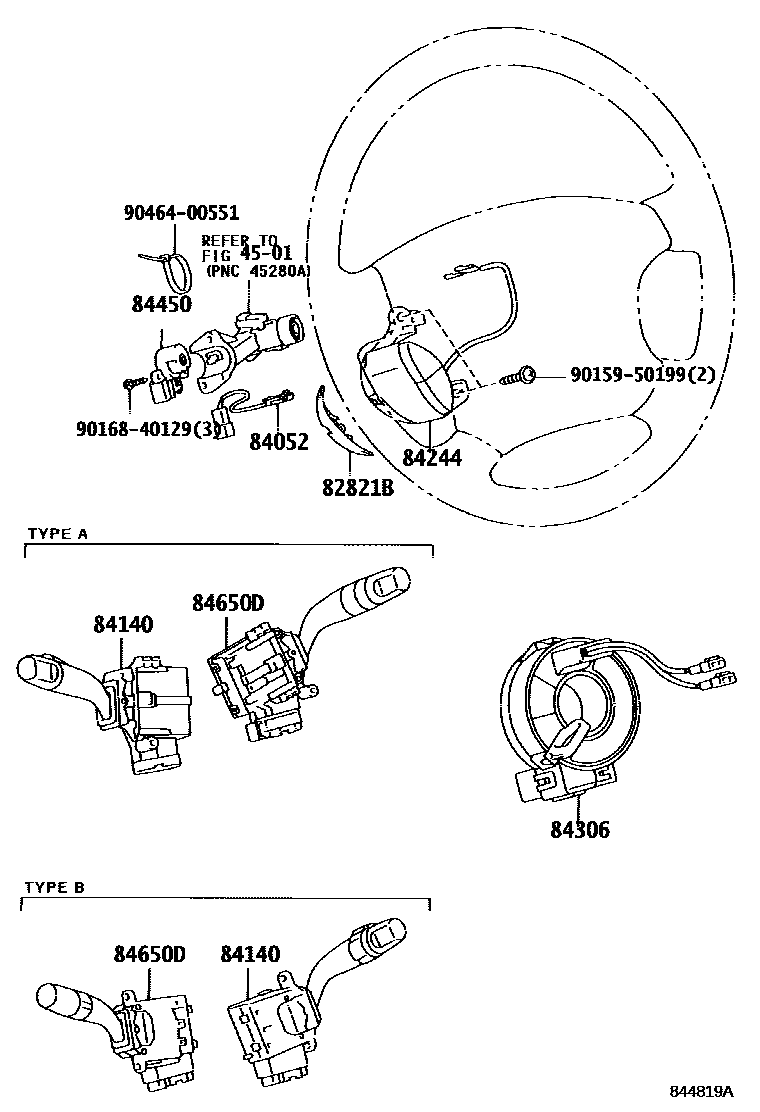

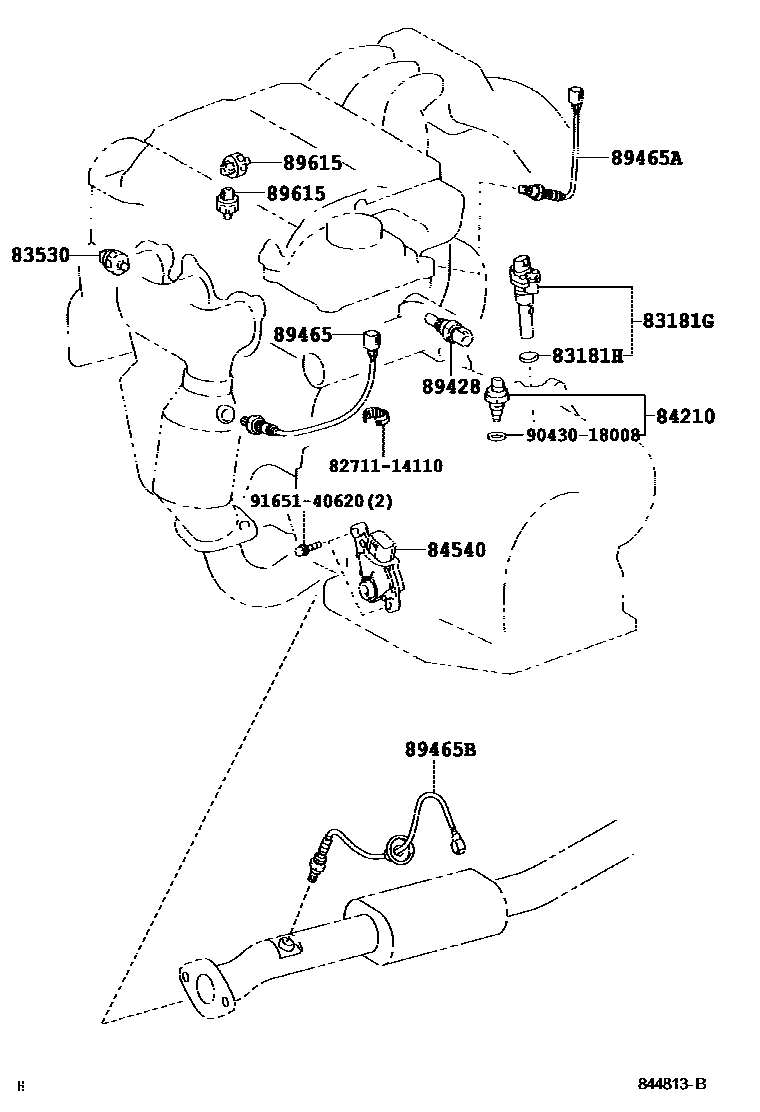

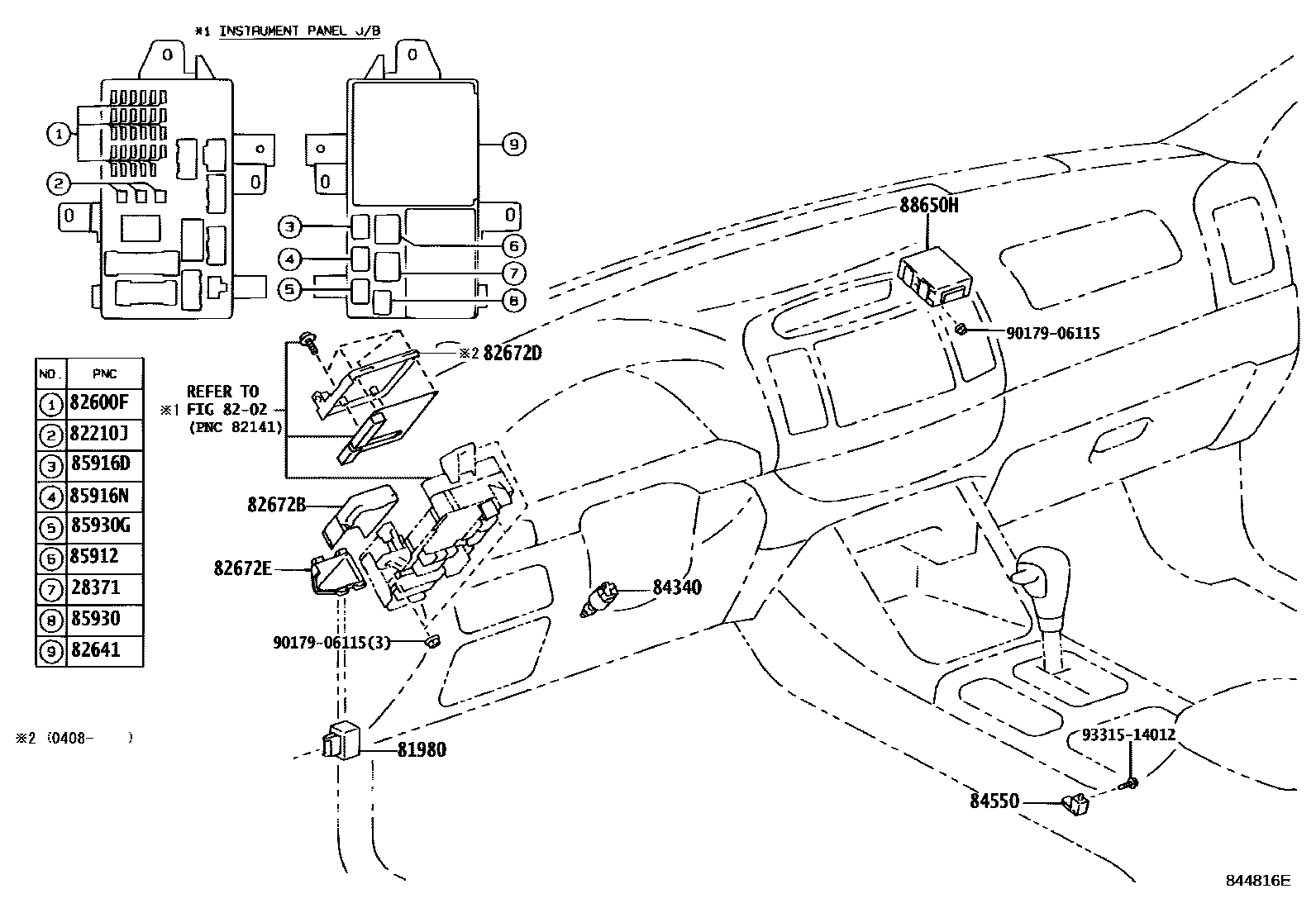

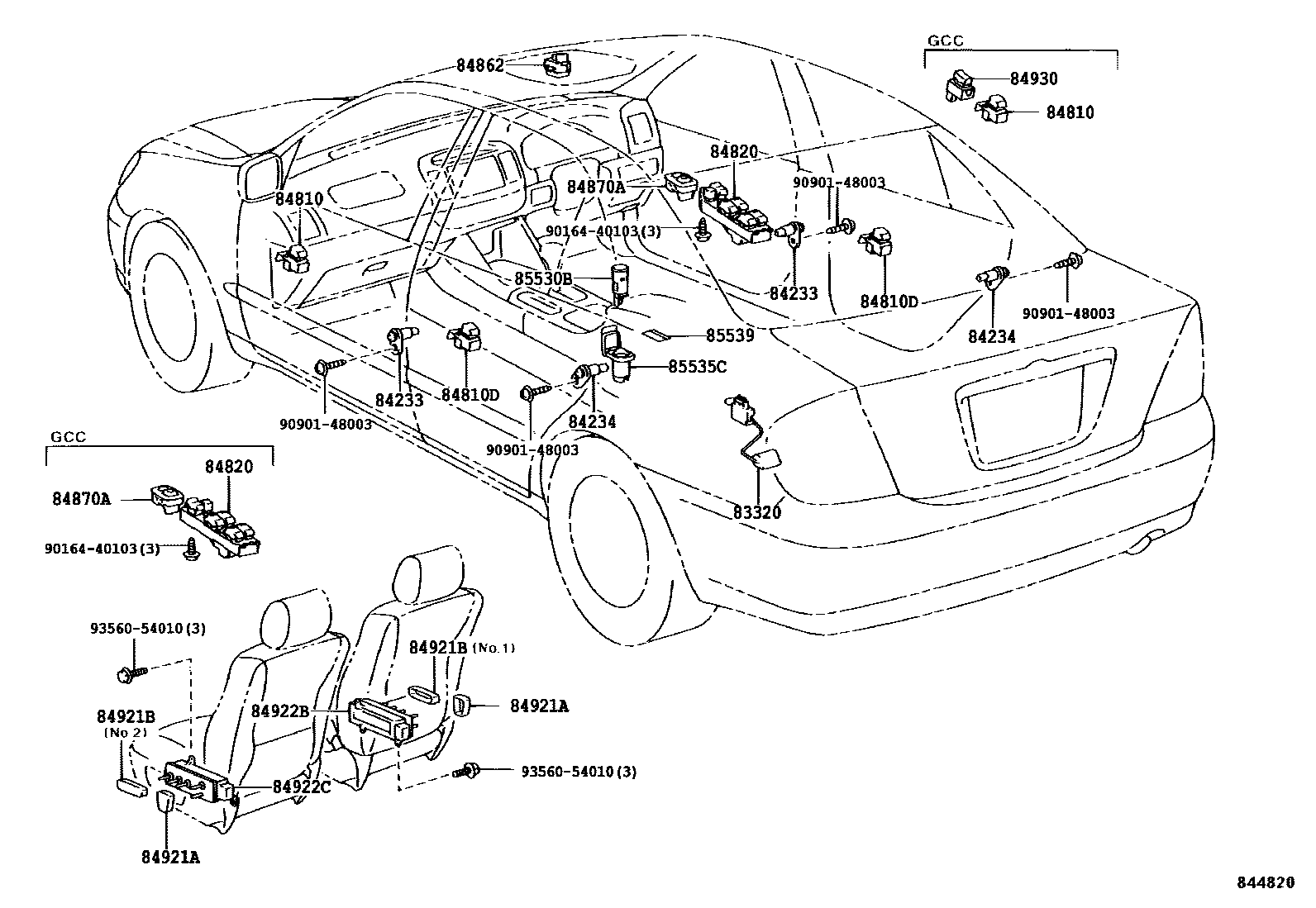

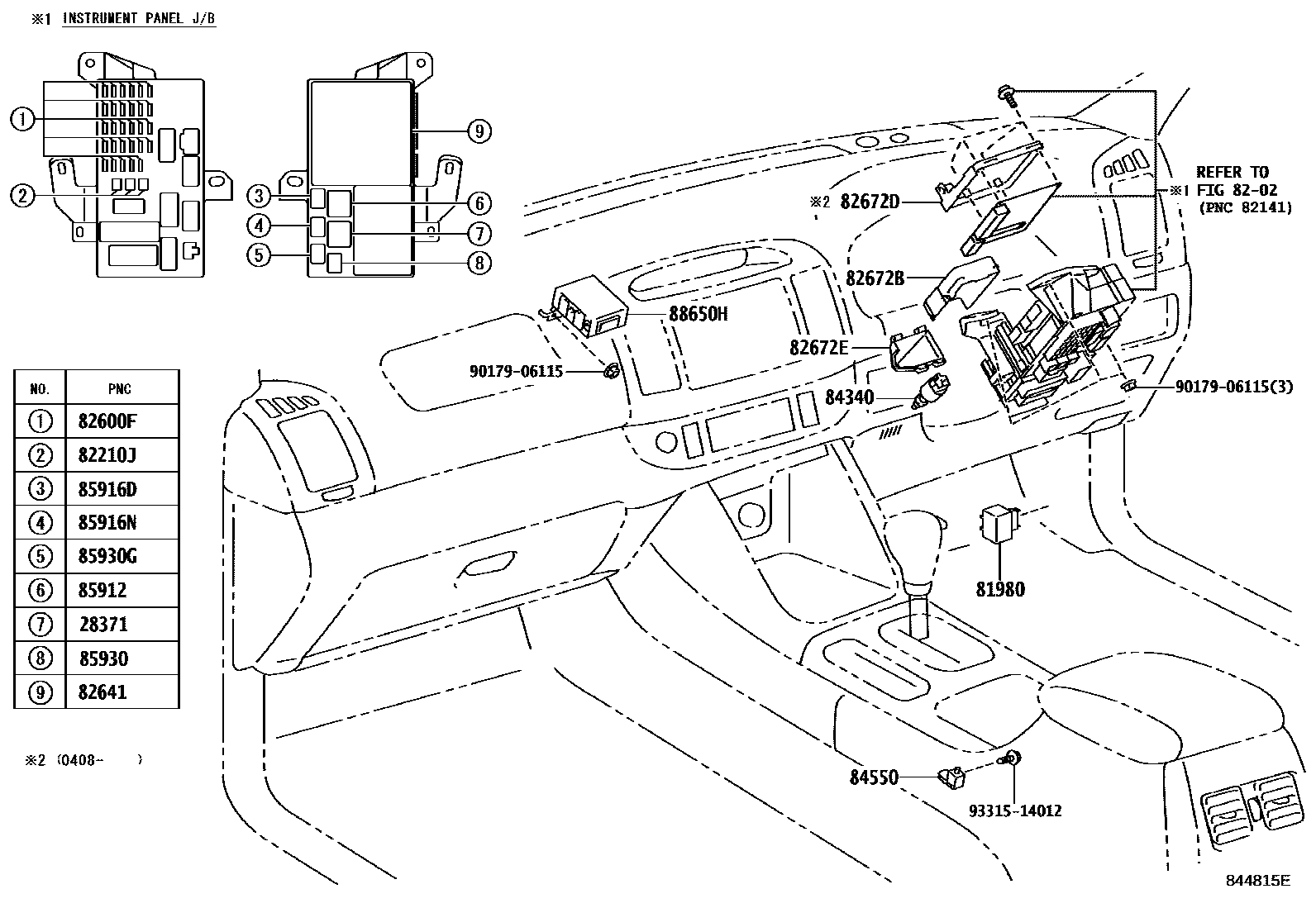

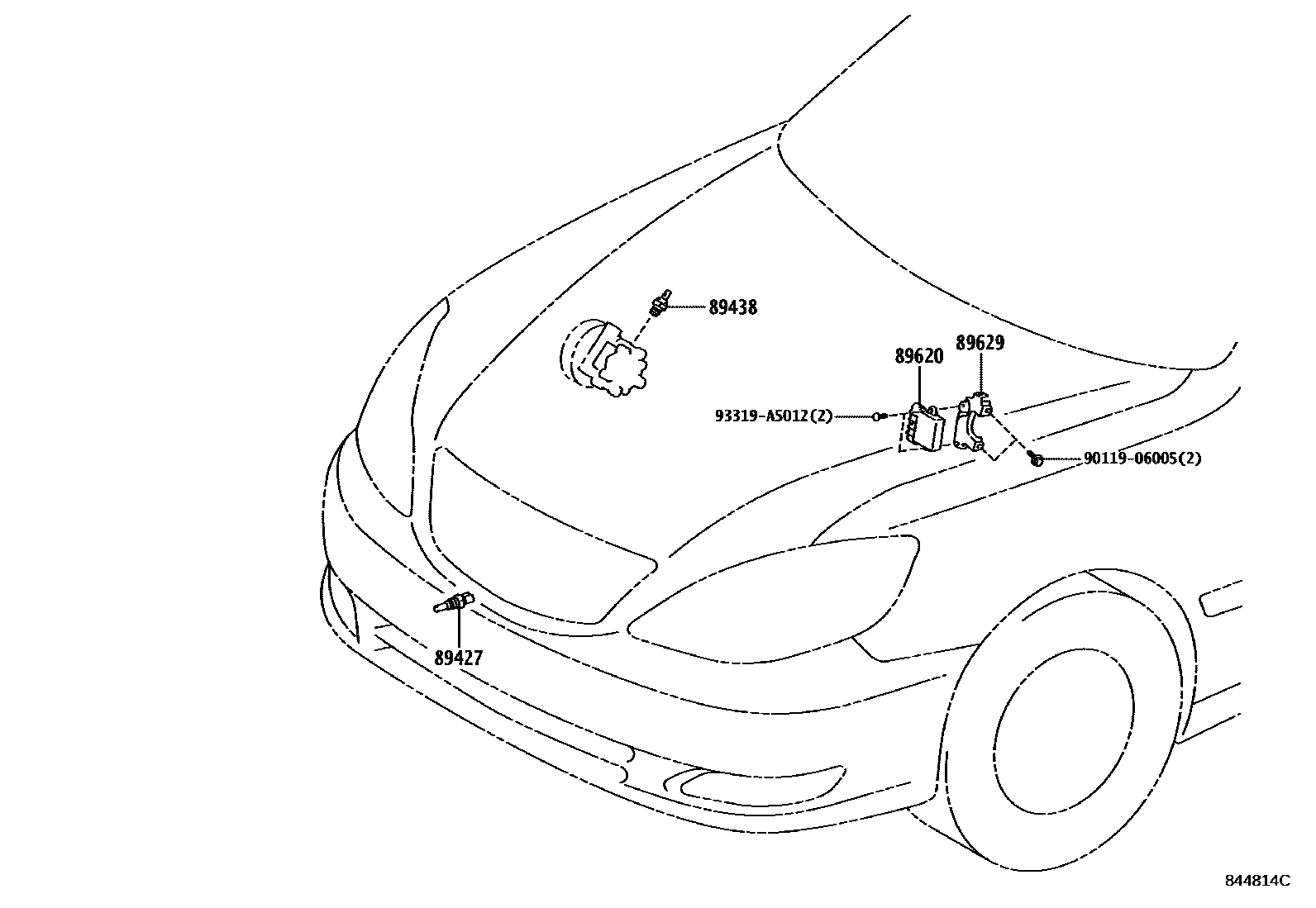

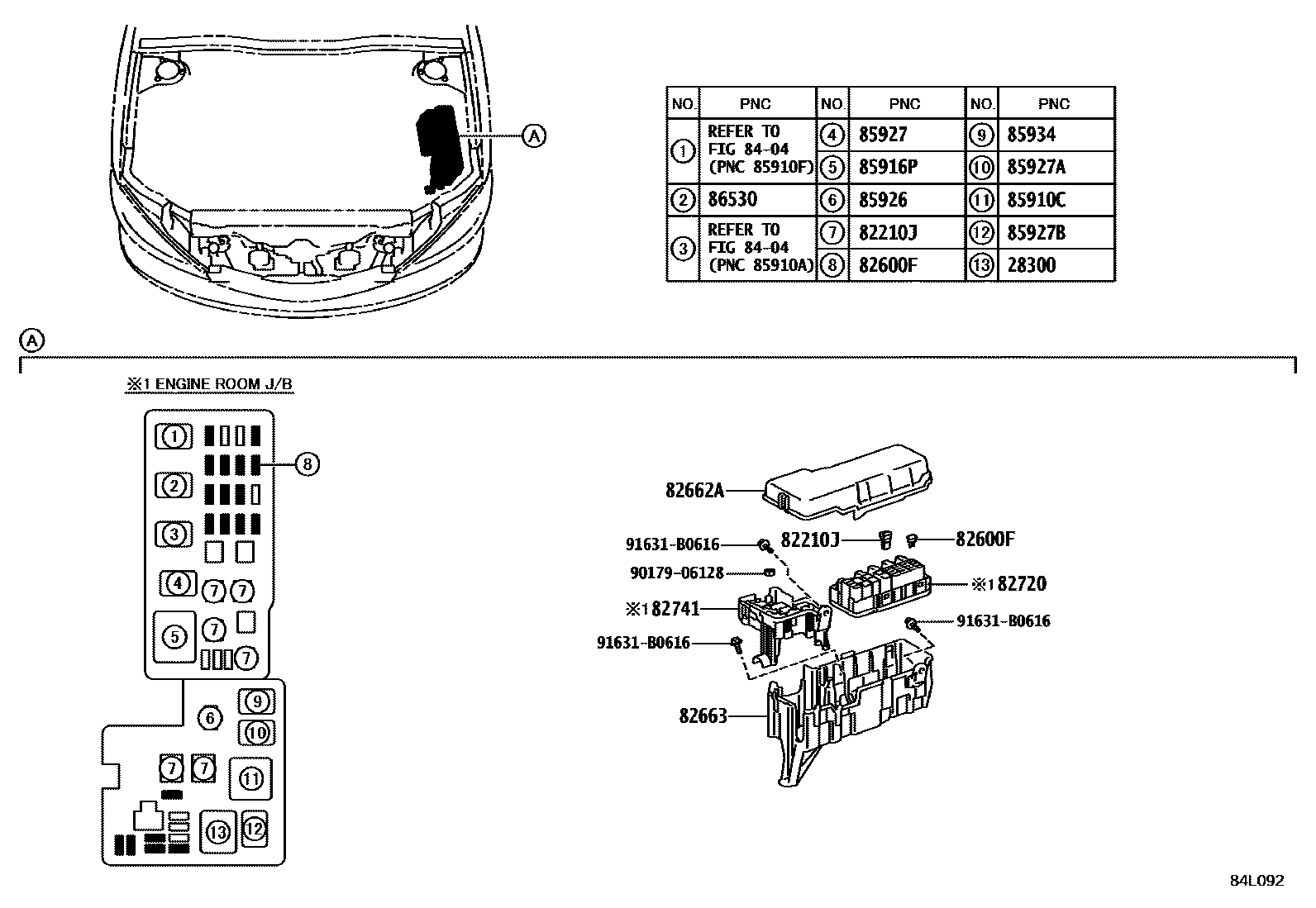

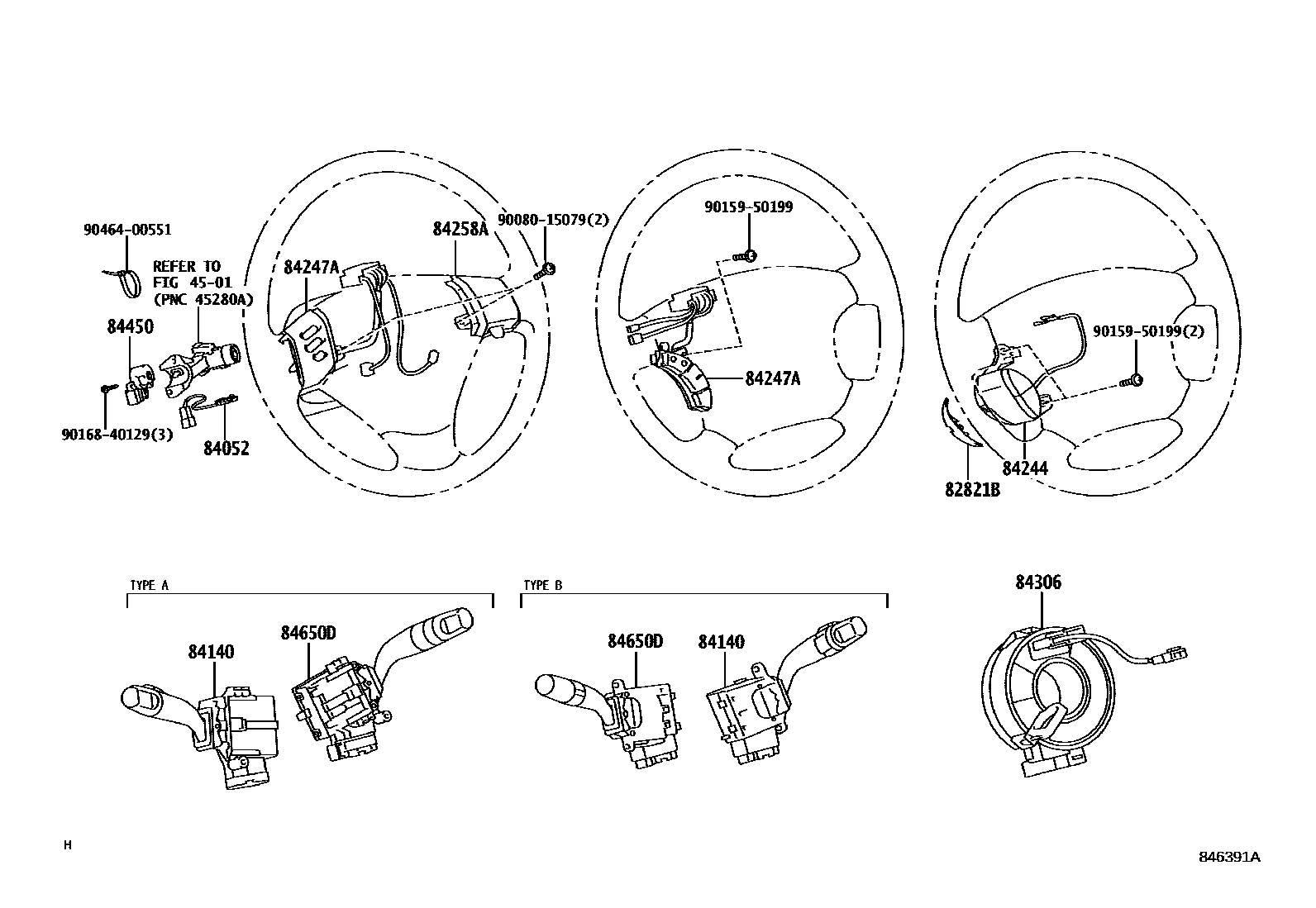

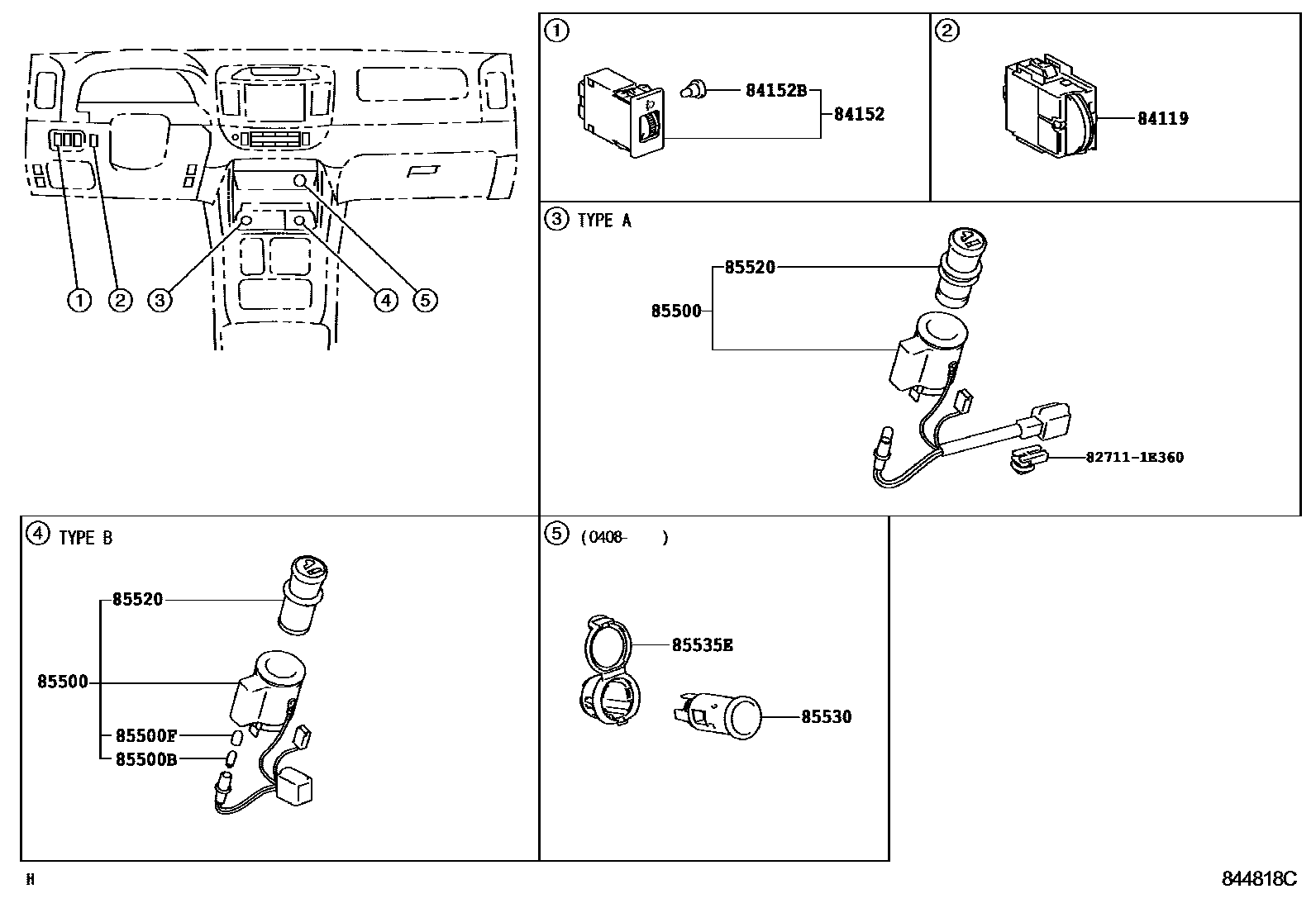

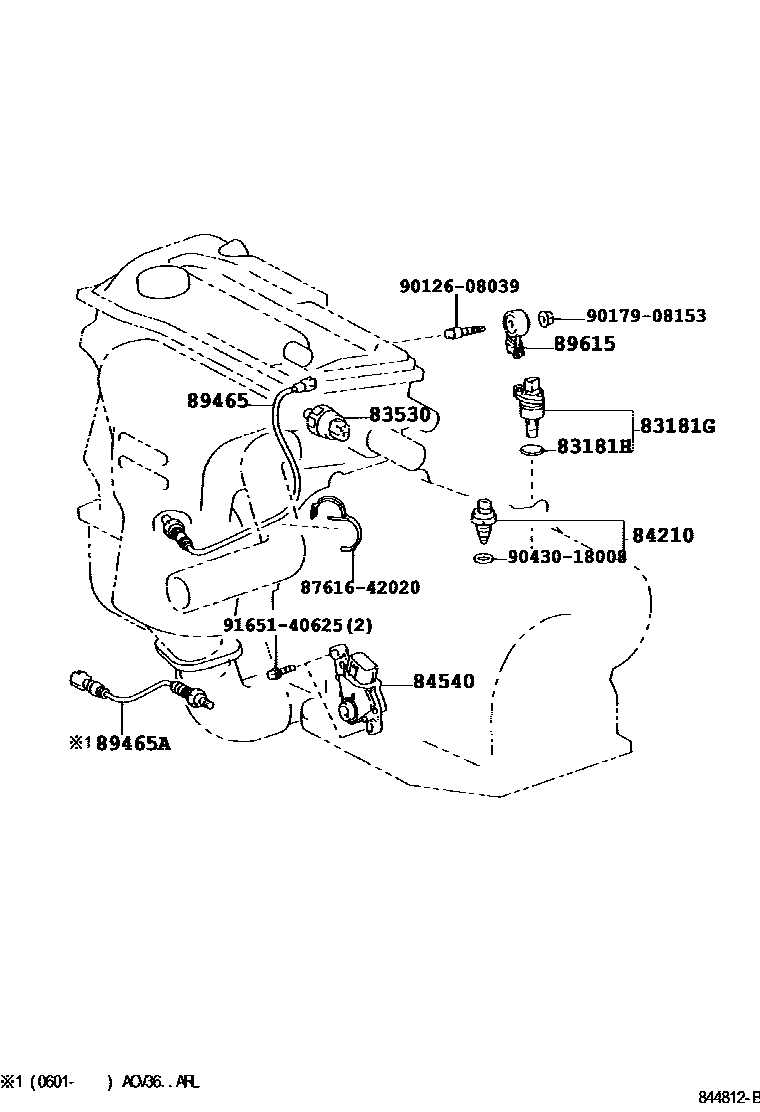

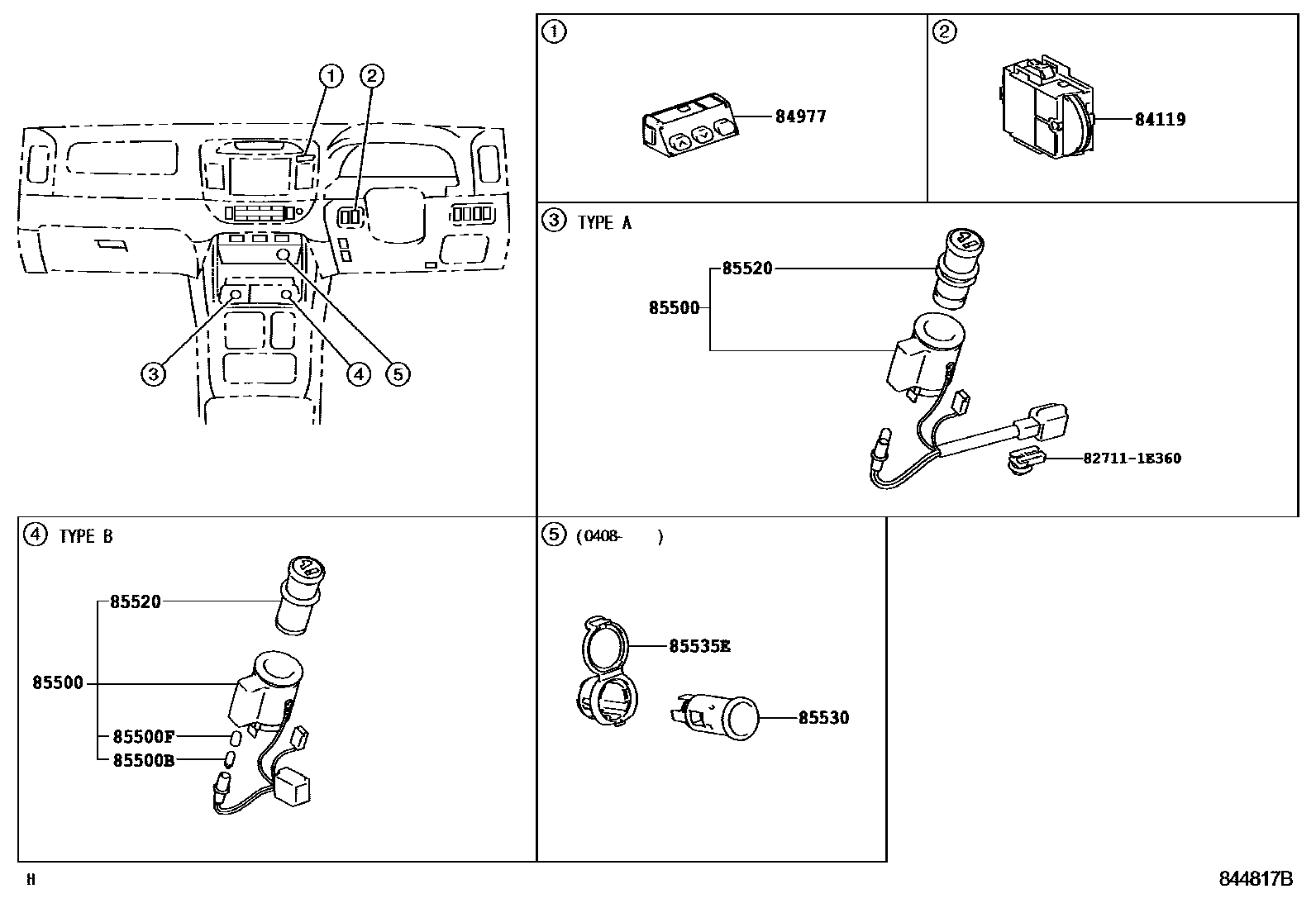

Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 11 images and 73 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-06010 · 28300-10020 |
| 28371 | No. 1 ignition relay | 90987-02025 |
| 81980 | Turn signal flasher relay assembly | 81980-50030 |
| 82210J | fuse | 90982-08280 · 90982-08281 · 90982-08282 |
| 82600F | Spare fuse | 90080-82020 · 90080-82021 · 90080-82022 · 90080-82023 · 90080-82024 · 90080-82031 · 90080-82033 |
| 82641 | Integrated relay No. 1 | 82641-YC080 · 82641-YC090 · 82641-YC091 · 82641-YC100 · 82641-YC110 · 82641-YC120 · 82641-YC121 · 82641-YC130 · 82641-YC131 |
| 82662A | No. 1 relay box upper cover | 82662-YC010 · 82662-YC020 · 82662-YC030 · 82662-YC040 · 82662-YC050 · 82662-YC060 · 82662-YC070 · 82662-YC080 · 82662-YC090 |
| 82663 | Relay box lower cover | 82663-YC010 |
| 82672B | Junction box cover | 82672-33200 |
| 82672D | Junction box cover | 82672-06100 |
| 82672E | Junction box cover | 82672-33210 |
| 82720 | Engine room junction box assembly | 82720-06050 · 82720-06080 · 82720-06081 |
| 82741 | Engine room relay box | 82741-YC010 · 82741-YC020 |
| 82821B | Connector cover | 82821-33200 |
| 83181G | speedometer sensor | 83181-12030 · 83181-12040 · 83181-12050 |
| 83181H | O-ring (for speedometer sensor) | 96711-24018 · 96711-24030 |
| 83320 | Fuel gauge sensor assembly | 83320-33070 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-32030 |
| 84119 | Light control rheostat | 84119-33130 · 84119-YC090 · 84119-YC100 |
| 84140 | Headlight dimmer switch assembly | 84140-06120 · 84140-06130 · 84140-06160 · 84140-06170 |
| 84152 | Headlight beam height adjustment switch | 84152-12060 |
| 84152B | Bulb (for headlight beam height adjustment switch) | 90010-08100 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84233 | Door control light switch assembly (for front door) | 84231-02070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-02070 |
| 84244 | Steering wheel trim cover switch | 84244-33020 · 84244-33040 · 84244-33100 · 84244-33110 |
| 84306 | Spiral cable sub-assembly | 84306-02080 · 84306-06050 · 84306-58011 |
| 84340 | brake light switch assembly | 84340-06020 · 84340-06030 · 84340-06031 |
| 84450 | Ignition or starter switch assembly | 84450-12200 |
| 84540 | Neutral start switch assembly | 84540-20200 · 84540-32110 · 84540-48010 |
| 84550 | Parking brake switch assembly | 84550-02040 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-02260 · 84652-06130 |
| 84810 | Electric window lift switch assembly | 84810-YC010 |
| 84810D | Rear electric window lift switch assembly | 84810-YC010 |
| 84820 | Electric window lift main switch assembly | 84820-06030 · 84820-06040 · 84820-10090 · 84820-33160 · 84820-33180 · 84820-33220 |
| 84870A | Exterior rearview mirror switch assembly | 84870-06060 |
| 84922B | Front right electric seat switch | 84922-33070 |
| 84922C | Front left electric seat switch | 84922-33080 |
| 84930 | Door control switch assembly | 84930-33080 |
| 84977 | driving monitor switch | 84977-YC011 · 84977-YC012 |
| 85500 | Cigarette lighter assembly | 85500-33040 · 85500-41030 |
| 85500B | Cigarette lighter bulb | 90981-11018 |
| 85500F | Cigarette lighter bulb cover | 84998-10510 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-33020 |
| 85530B | No. 1 rear power socket assembly | 85530-33020 |
| 85535C | Rear power outlet cover | 85535-33020 |
| 85535E | No. 2 power outlet cover | 85535-48060 |
| 85539 | Power socket attention labels | 85539-33010 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04010 |
| 85912 | defogger relay | 90987-02025 |
| 85916D | fog light relay | 90987-02020 · 90987-02027 |
| 85916N | Tail light relay | 90987-02020 · 90987-02027 |
| 85916P | headlight relay | 90987-02025 |
| 85926 | Headlight dimmer relay | 85926-30020 |
| 85927 | cooling fan relay | 90080-87008 |
| 85927A | Cooling fan relay No. 2 | 90080-87009 |
| 85927B | Cooling fan relay No. 3 | 90080-87008 |
| 85930 | Electric window relay assembly | 90080-87008 |
| 85930G | ACC relay | 90080-87008 |
| 85934 | Electromagnetic clutch relay | 90987-02028 |
| 86530 | Speaker relay assembly | 90080-87008 |
| 88650H | Air conditioning amplifier assembly | 88650-06070 · 88650-06080 |
| 89427 | Temperature detection switch | 89428-21010 |
| 89428 | No. 2 temperature detection switch | 89428-41010 |
| 89438 | Power steering oil pressure switch | 89438-33010 |
| 89465 | oxygen sensor | 89465-06110 · 89465-06160 · 89465-33240 · 89465-40060 · 89467-33080 · 89467-41030 |
| 89465A | Oxygen sensor No. 2 | 89465-06110 · 89465-33220 · 89465-40060 · 89467-41030 |
| 89465B | Oxygen sensor No. 3 | 89465-33510 |
| 89615 | knock control sensor | 89615-12090 · 89615-20090 |
| 89620 | Ignition assembly | 89621-35020 |
| 89629 | Ignition bracket assembly | 89629-33120 |
