Toyota CAMRY 车内灯 — Figure 8121

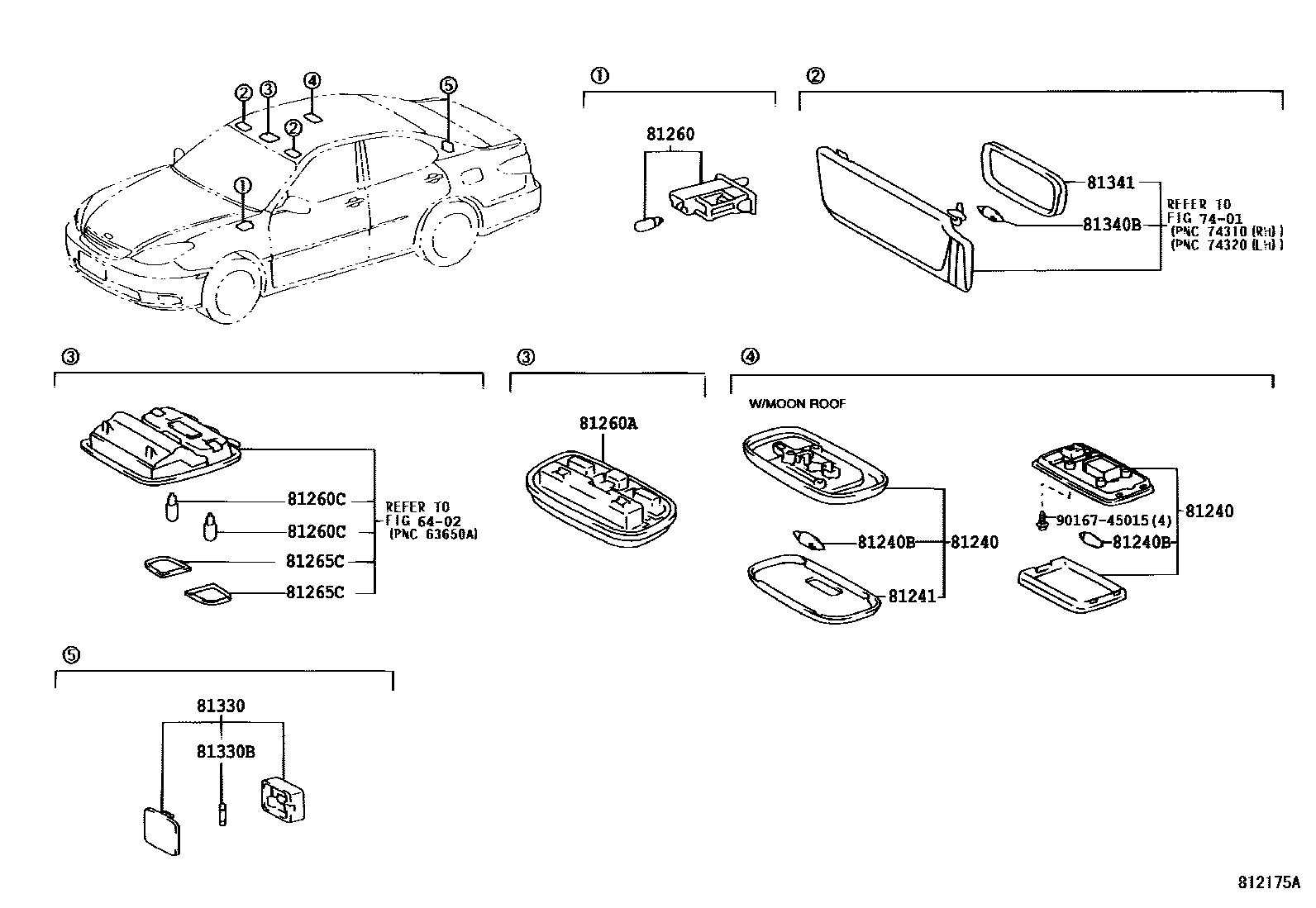

Toyota CAMRY EPC diagram 8121, 车内灯, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81240B | Interior light bulb No. 1 | 90089-81002 · 90981-14001 · 90981-14011 |
| 81241 | Interior light cover No. 1 | 81241-33030 |
| 81260 | Glove box light assembly | 81260-YC030 |
| 81260C | Light bulb (for reading lamp) | 90084-81002 · 90981-12020 |
| 81265C | No. 1 reading lamp shade | 81265-AA010 · 81265-AA020 |
| 81330 | No. 1 trunk light assembly | 81330-YC010 |
| 81330B | trunk light bulb | 90089-81005 |
| 81340B | Bulb (for vanity lights) | 90084-98013 |
| 81341 | vanity lamp shade | 81351-AA010 |
