Toyota CAMRY 高位刹车灯 — Figure 8117

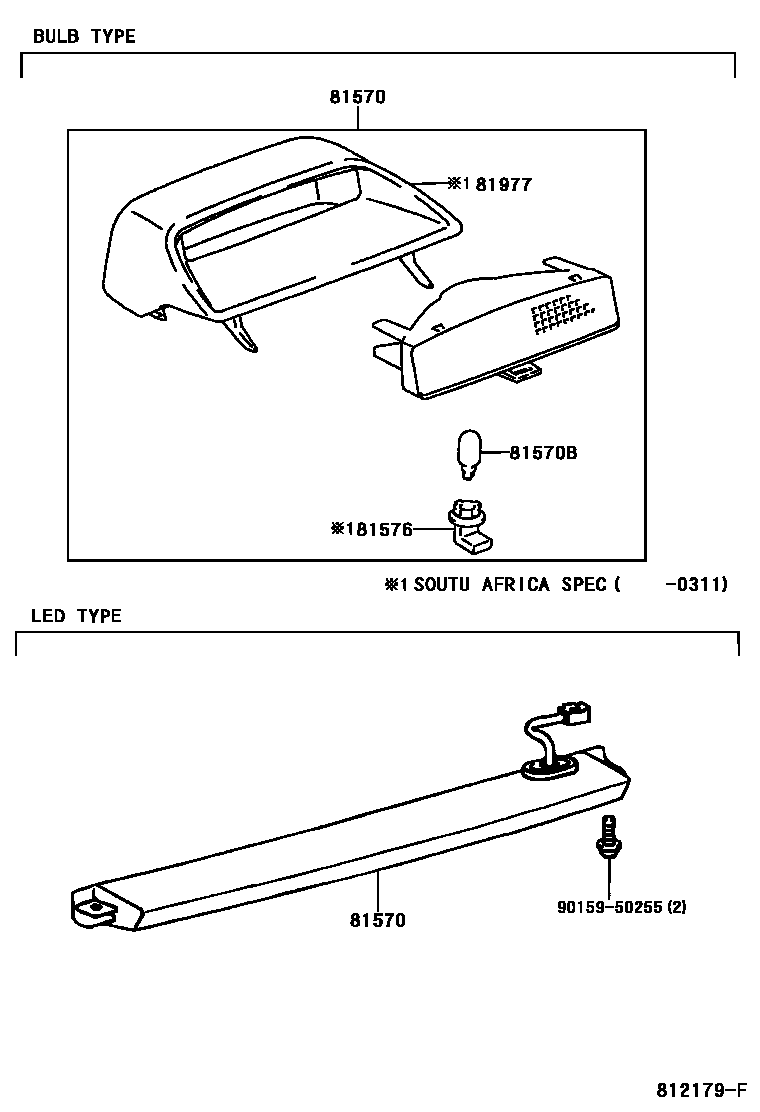

Toyota CAMRY EPC diagram 8117, 高位刹车灯, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81570 | Central brake light assembly | 81570-AA020 |
| 81570B | Bulb (for center brake light) | 90981-11039 |
| 81576 | Central brake light holder and wiring harness | 81576-08010 |
