Toyota CAMRY 后组合灯 — Figure 8111

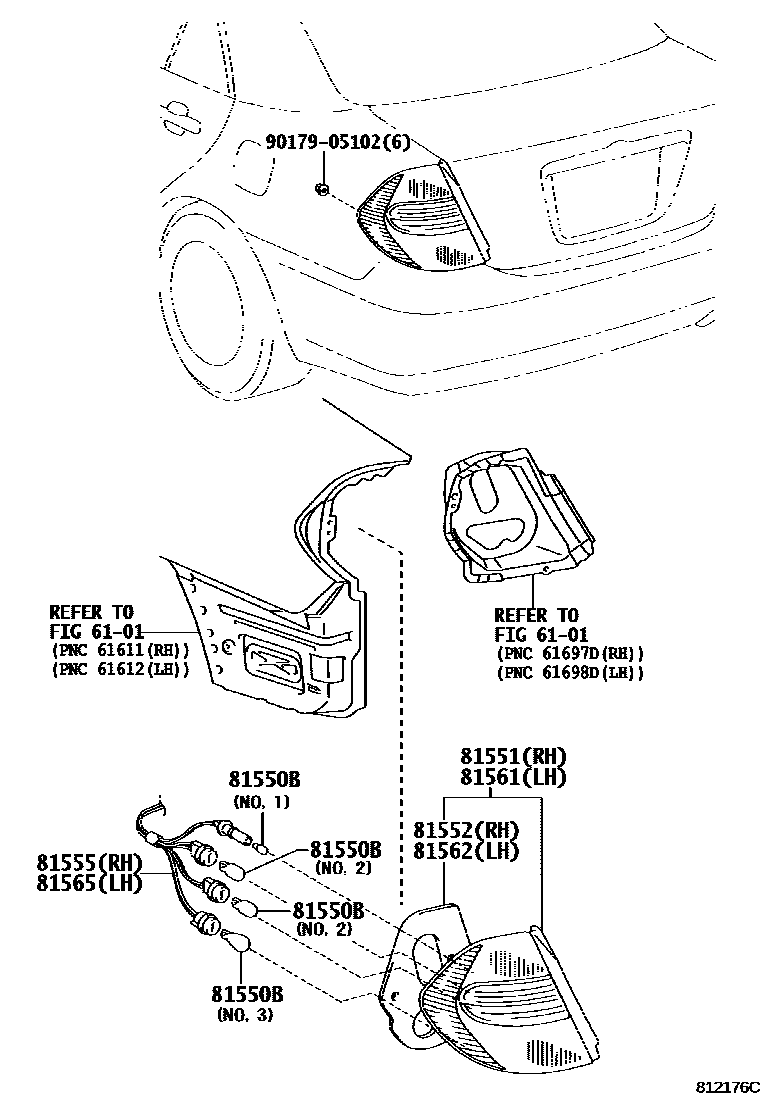

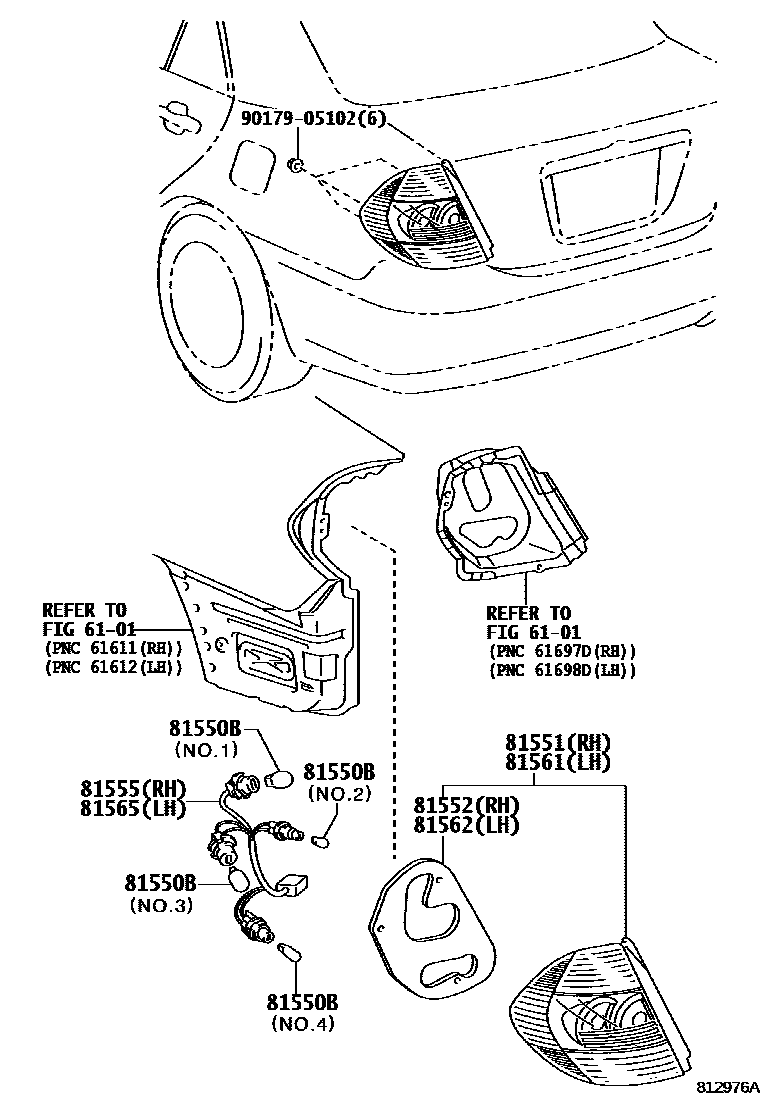

Toyota CAMRY EPC diagram 8111, 后组合灯, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550B | Bulb (for rear combination lights) | 90981-11048 · 90981-11059 · 90981-13043 · 90981-13044 · 90981-15021 · 99132-12050 |
| 81551 | Right rear combination lamp shade | 81551-06160 · 81551-8Y003 · 81551-8Y004 |
| 81552 | Right rear combination lamp shade gasket | 81552-06160 · 81552-8Y003 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-06160 · 81555-8Y003 |
| 81561 | Left rear combination lamp shade | 81561-06170 · 81561-8Y003 · 81561-8Y004 |
| 81562 | Left rear combination lamp shade gasket | 81552-06160 · 81562-8Y002 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-8Y003 · 81565-06170 |
