Toyota CAMRY Fog Lamp — Figure 8102

Toyota CAMRY EPC diagram 8102, Fog Lamp, with 2 images and 6 PNC and OE references.

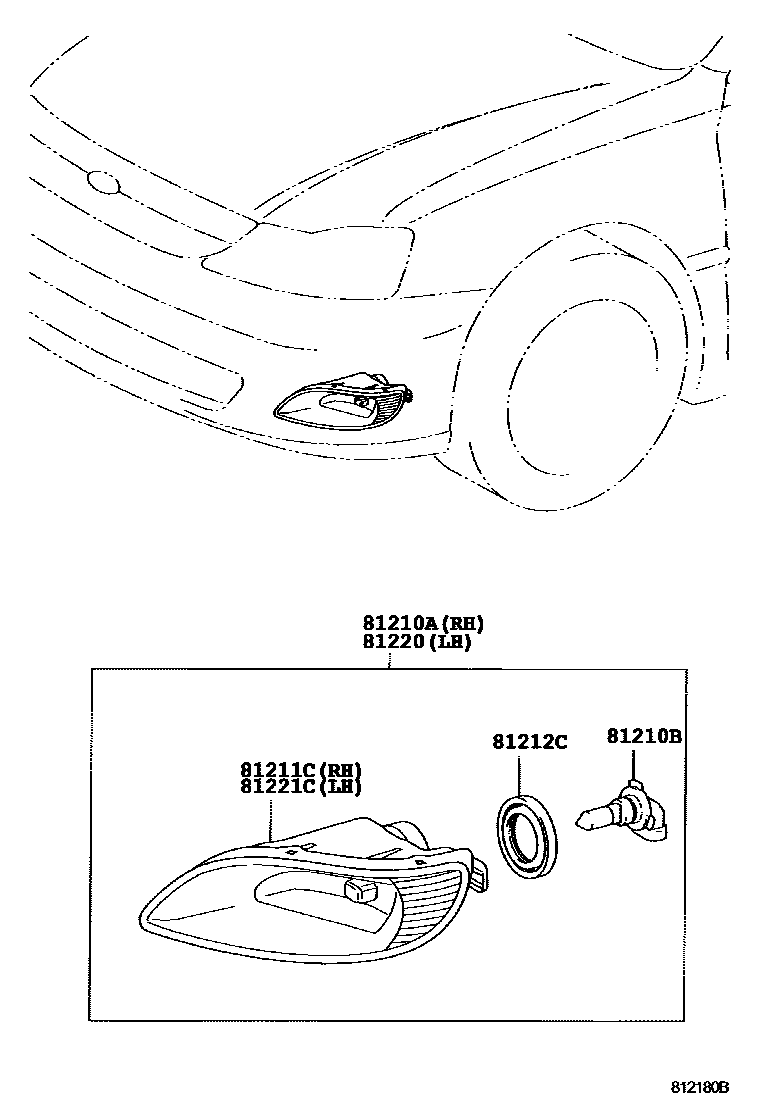

Toyota CAMRY Fog Lamp EPC diagram — 812180B
Fog Lamp — 812180B (200208 – 200408)

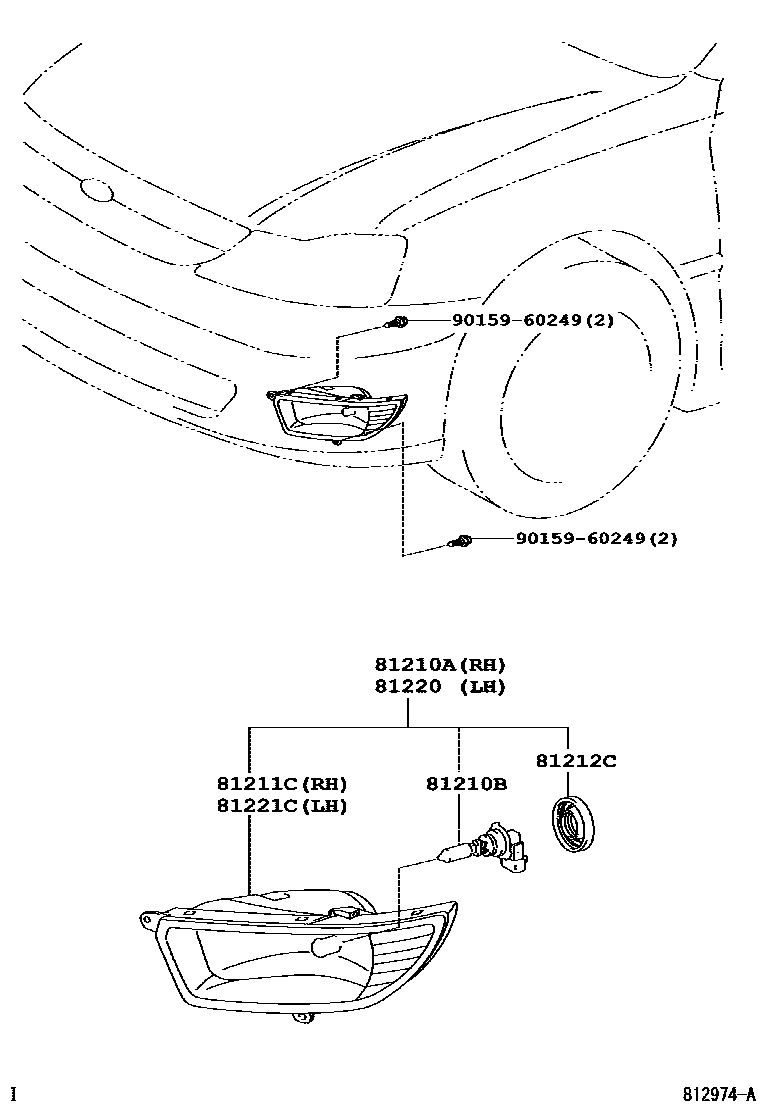

Toyota CAMRY Fog Lamp EPC diagram — 812974A
Fog Lamp — 812974A (200408 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210ARight fog light assembly81210-06040 · 81210-AA010
81210Bfog light bulb90981-13047
81211CRight fog light assembly81211-06040 · 81211-AA010
81212Cfog light cover81212-06010 · 90075-65010
81220Left fog light assembly81220-06040 · 81220-AA010
81221CLeft fog light assembly81221-06040 · 81221-AA010
