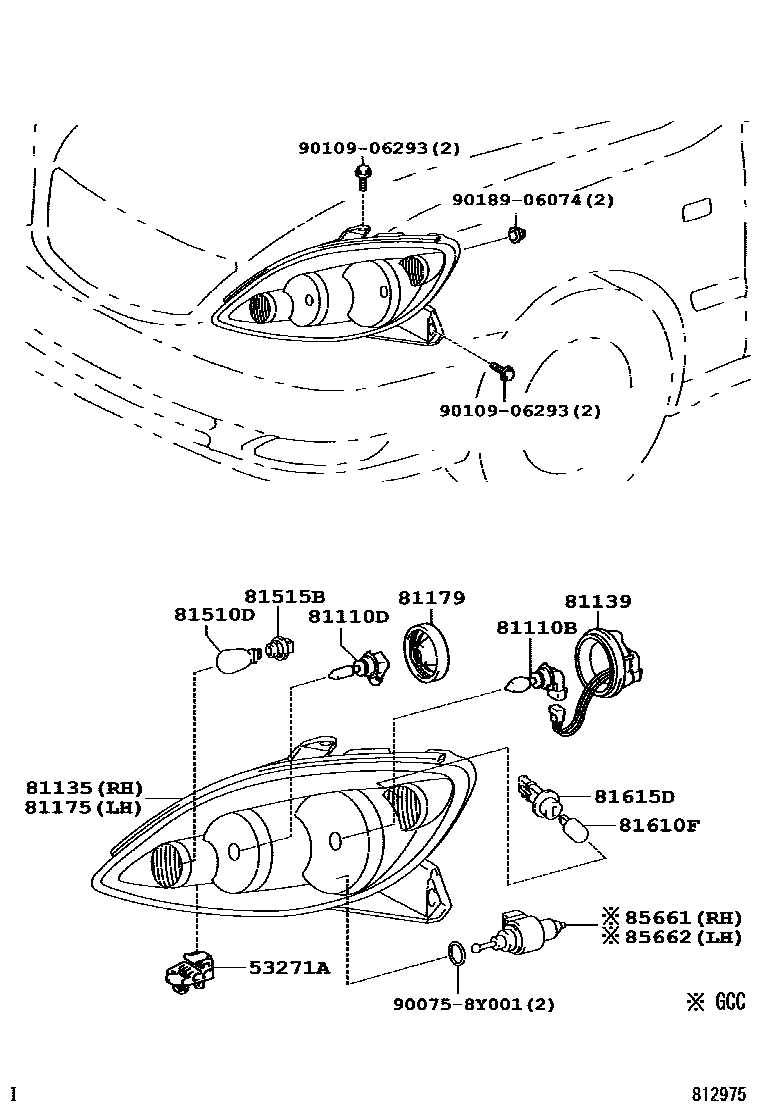

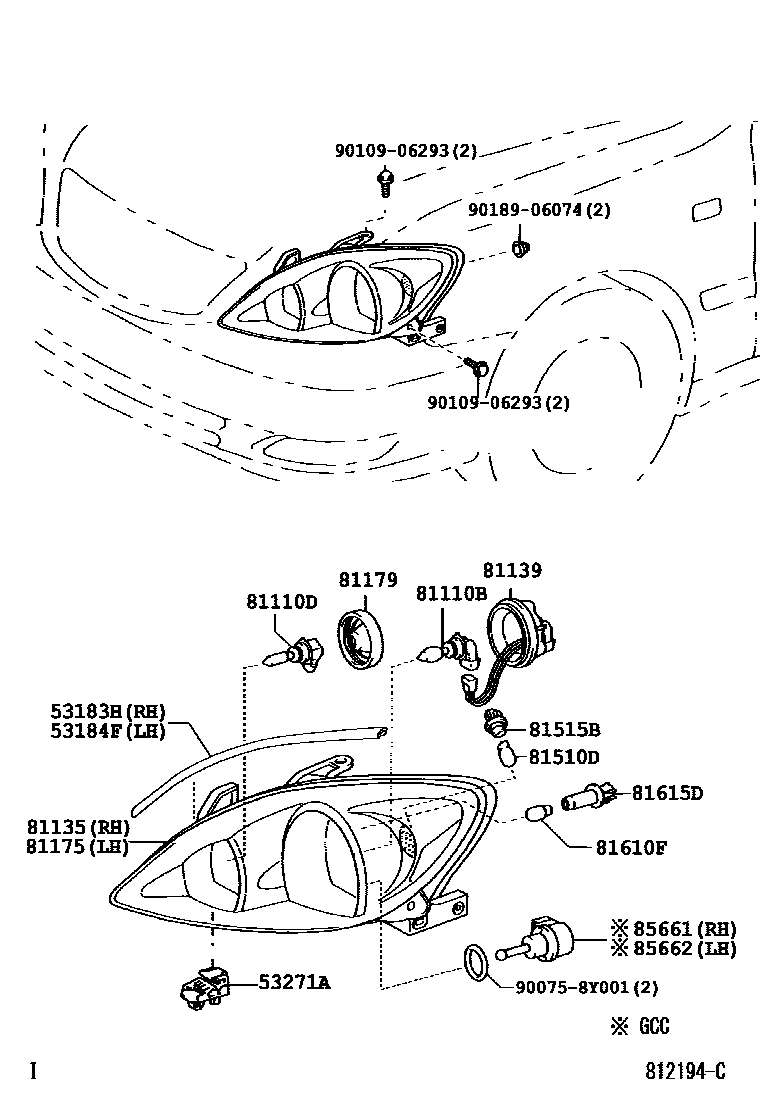

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53183H | Right headlight cover seal | 53183-8Y001 |
| 53184F | Left headlight cover seal | 53184-8Y001 |
| 53271A | Headlight mounting bracket | 53271-44010 |
| 81110B | Bulb (for headlight No. 1) | 90981-13015 |
| 81110D | Bulb (for headlight No. 2) | 90011-11036 · 90981-8Y001 |
| 81135 | Right headlight assembly assembly | 81130-8Y002 · 81130-8Y003 · 81130-8Y004 · 81130-8Y005 · 81130-YC090 · 81130-YC100 · 81130-YC110 · 81130-YC120 |
| 81139 | Headlight lamp holder cover | 81139-YC090 |
| 81175 | Left headlight assembly assembly | 81170-8Y002 · 81170-8Y003 · 81170-8Y004 · 81170-8Y005 · 81170-YC090 · 81170-YC100 · 81170-YC110 · 81170-YC120 |
| 81179 | Headlight lamp holder cover | 81179-YC090 |
| 81510D | Bulb (for front turn signal lamp) | 99132-11210 · 99132-8Y001 |
| 81515B | Front turn signal lamp holder | 81515-8Y002 · 90069-81044 |
| 81610F | Light bulb (for width indicator light) | 84999-YC010 · 99132-12050 |
| 81615D | Width light lamp holder | 90069-81043 · 90069-8Y001 |
| 85661 | Right headlight beam height adjustment motor | 85661-8Y001 |
| 85662 | Left headlight beam height adjustment motor | 85661-8Y001 |
