Toyota CAMRY accelerator pedal connecting rod — Figure 7801

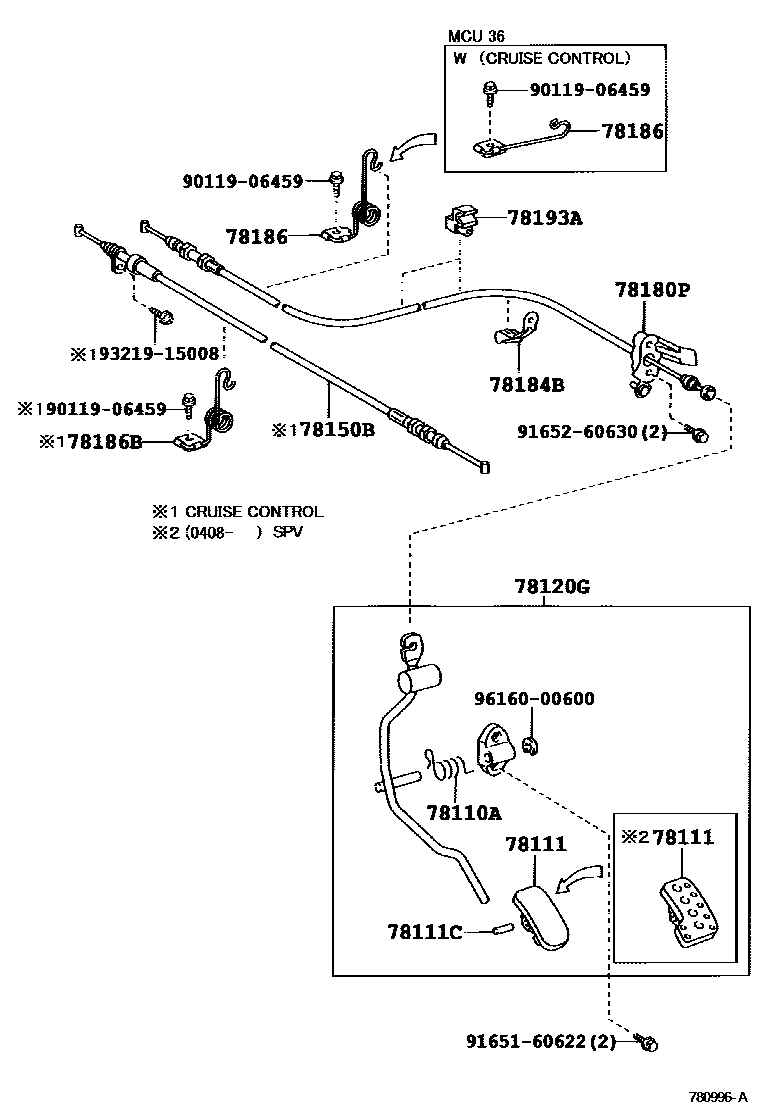

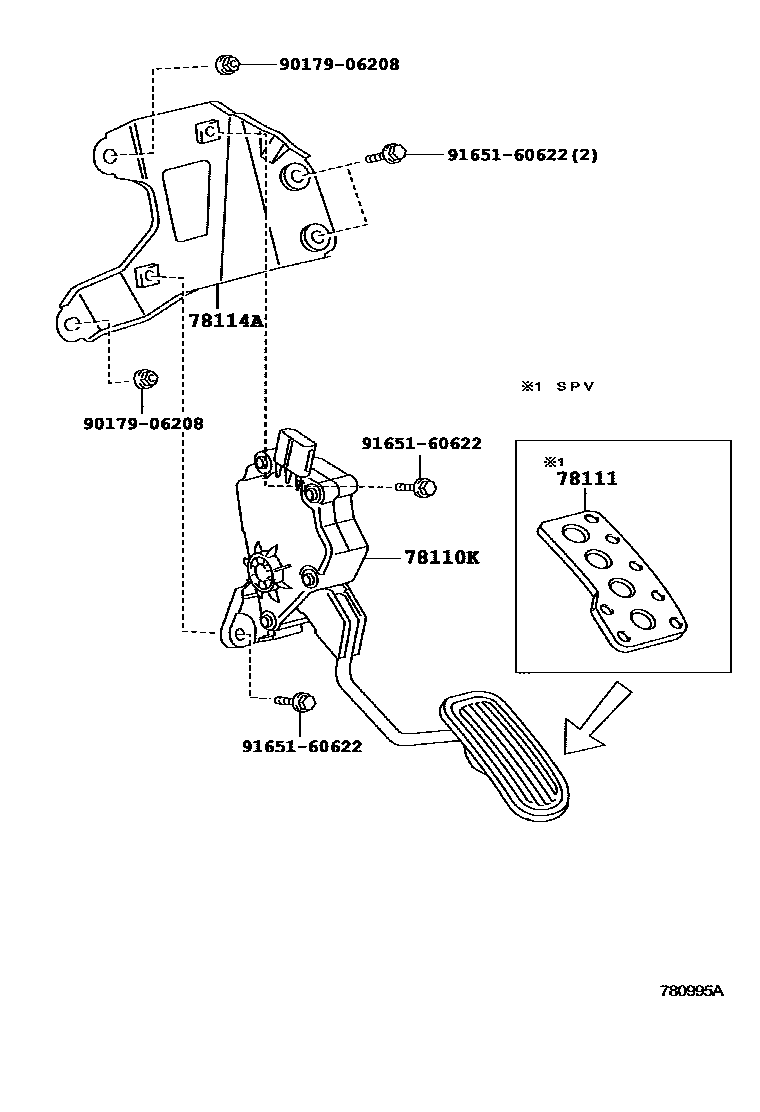

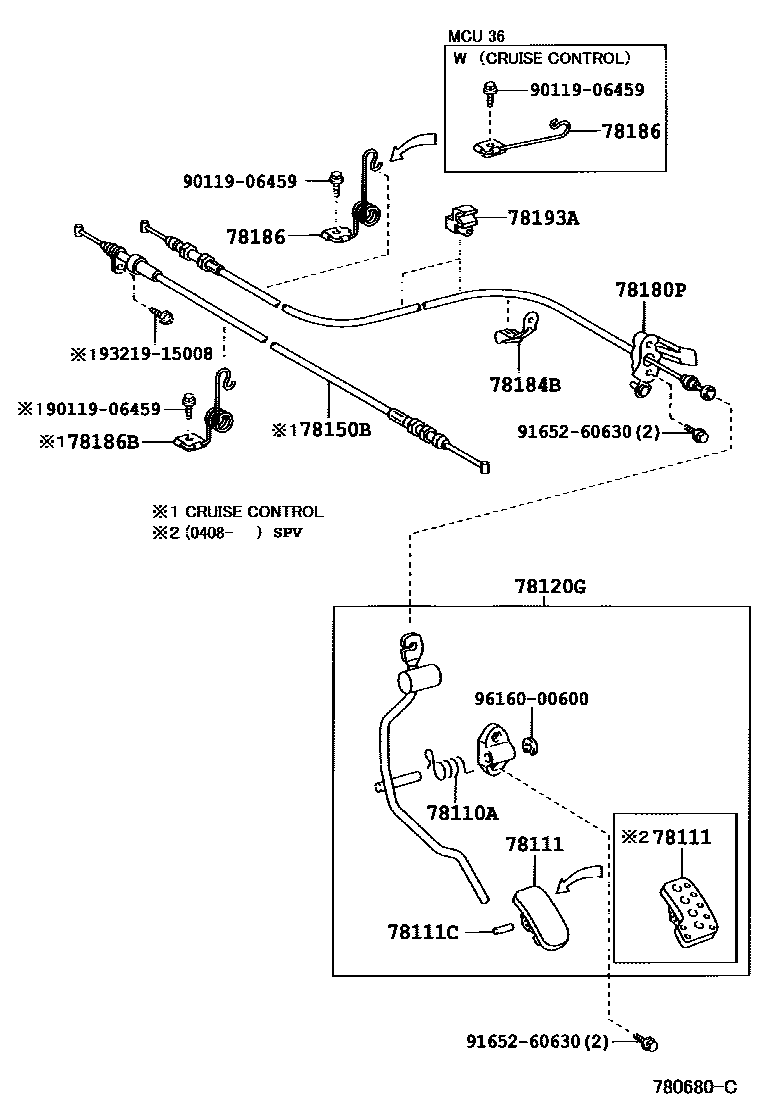

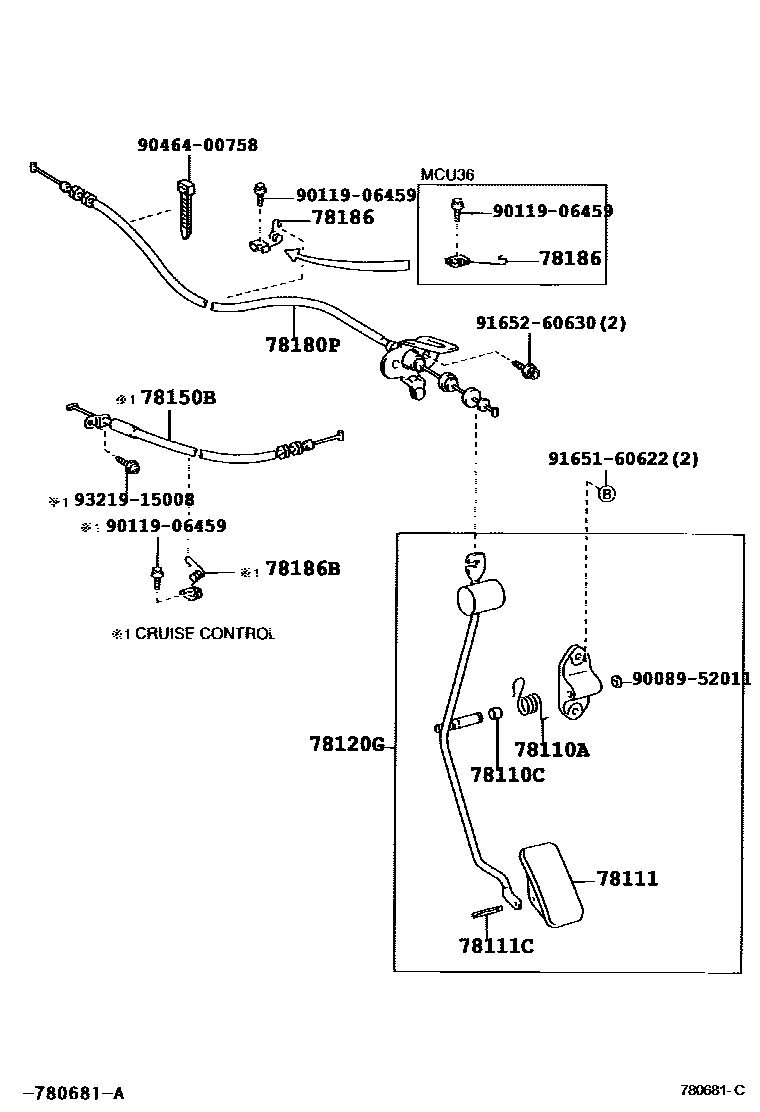

Toyota CAMRY EPC diagram 7801, accelerator pedal connecting rod, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110A | Spring (for accelerator pedal lever) | 90089-50016 · 90089-50024 · 90089-50050 · 90089-50082 |
| 78110C | Bushing (for accelerator pedal lever) | 90089-38046 |
| 78110K | Accelerator pedal connecting rod assembly with sensor | 78110-33030 · 78110-33040 |
| 78111 | accelerator pedal | 78111-YC020 · 78111-YC040 · 78111-YF010 |
| 78111C | pin (for gas pedal) | 90089-25006 · 90254-04019 |
| 78114A | accelerator pedal bracket | 78114-33010 |
| 78120G | Accelerator pedal lever assembly | 78120-YC050 · 78120-YC070 · 78120-YC080 · 78120-YC090 · 78120-YC100 · 78120-YF010 |
| 78150B | Accelerator pedal automatic transmission cable assembly | 78150-33120 · 78150-33130 |
| 78180P | Accelerator pedal control cable assembly | 78180-06170 · 78180-06180 · 78180-06190 · 78180-06200 · 78180-06210 · 78180-06220 · 78180-06230 |
| 78184B | Throttle pedal control cable bracket | 78184-33050 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-33070 · 78186-33150 · 78186-33160 · 78186-33170 · 78186-33200 · 78186-33210 |
| 78186B | No. 2 accelerator pedal control cable bracket | 78186-33140 · 78186-33190 |
| 78193A | No. 3 accelerator pedal control cable bracket | 78193-28010 |
