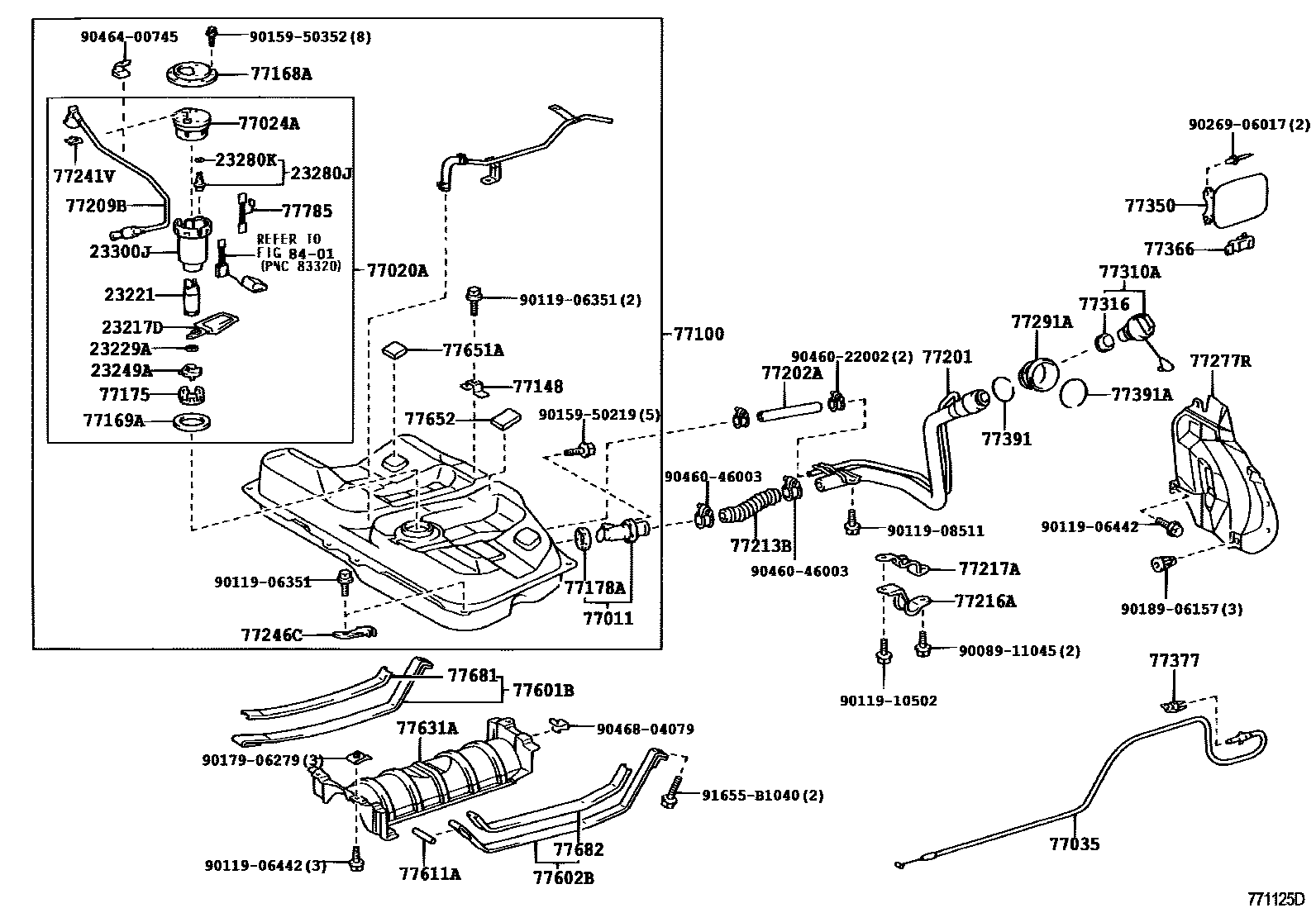

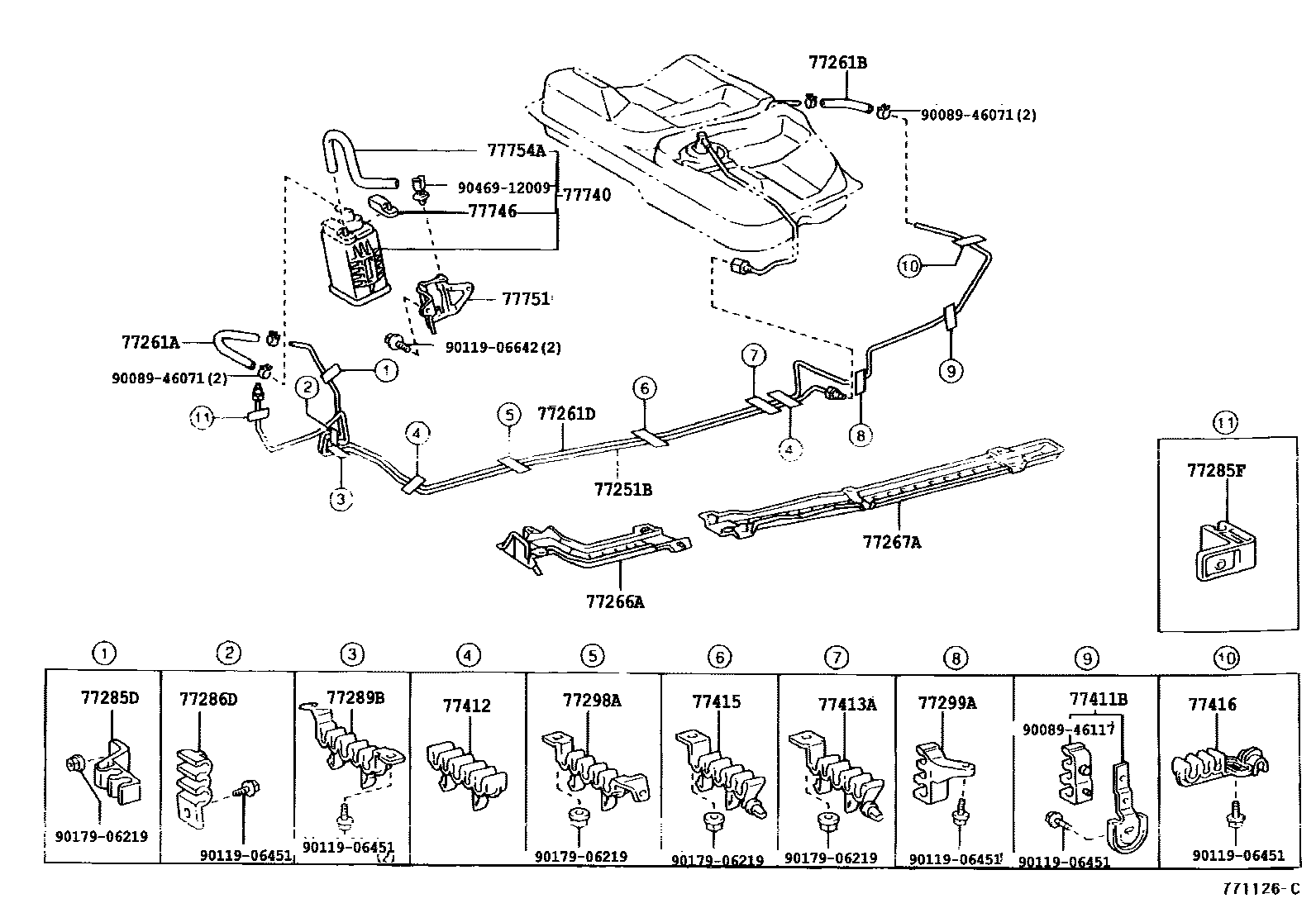

Toyota CAMRY 燃油箱和燃油管 — Figure 7701
Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 2 images and 62 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23217D | fuel pump filter | 23217-0C010 |
| 23221 | fuel pump | 23221-20040 |
| 23229A | Clip (for fuel pump filter) | 23229-16010 |
| 23249A | Rubber gasket (for fuel pump) | 23249-0D010 · 23249-46180 |
| 23280J | Fuel pressure regulator assembly | 23280-22010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-07020 |
| 23300J | fuel filter assembly | 23300-0D030 · 23300-21010 |
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-YC010 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-06040 |
| 77024A | Fuel absorber sub-assembly | 77024-06060 · 77024-33030 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-06060 · 77035-06070 |
| 77100 | fuel tank assembly | 77100-YC070 |
| 77148 | Fuel pipe to fuel tank bracket | 77148-32010 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-33050 |
| 77169A | Fuel suction pipe fixed gasket | 77169-33020 |
| 77175 | No. 2 oil suction pipe bracket | 77175-33020 |
| 77178A | Fuel tank filler pipe lower gasket | 77178-YC010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-YC040 |
| 77202A | No. 1 fuel hose (for breather pipe) | 90089-44016 |
| 77209B | Fuel pump pipe sub-assembly | 77209-33060 |
| 77213B | Fuel tank to filler pipe hose | 77213-33010 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-YC020 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-YC010 |
| 77241V | Pipe joint clip | 77241-06010 · 77241-33011 |
| 77246C | Main fuel pipe bracket | 77246-33020 |
| 77251B | main fuel pipe | 77251-YC050 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-YC050 |
| 77266A | No. 1 fuel line protection device | 77266-YC020 |
| 77267A | No. 2 fuel pipe protection device | 77267-YF010 |
| 77277R | Fuel tank filler pipe protection device | 77277-YC050 |
| 77285D | No. 1 fuel pipe clamp | 77285-YC020 |
| 77285F | No. 1 fuel pipe clamp | 77285-YC030 |
| 77286D | No. 2 fuel pipe clamp | 77286-YC010 |
| 77289B | No. 3 fuel pipe clamp | 77289-YC020 |
| 77291A | Fuel tank filler pipe cover | 77291-YC050 |
| 77298A | No. 4 fuel pipe clamp | 77298-YC020 |
| 77299A | No. 5 fuel pipe clamp | 77299-YC020 |
| 77310A | Fuel tank cap assembly | 77300-28010 · 77310-48010 |
| 77316 | fuel tank cap gasket | 77316-16010 |
| 77350 | Fuel filler cap assembly | 77350-06020 · 77350-33080 |
| 77366 | Fuel filler cap hinge spring | 77360-33030 · 77360-35010 |
| 77377 | Fuel filler cap lock retainer | 77377-12050 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-12040 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-YC010 |
| 77412 | No. 2 fuel pipe retaining ring bracket | 77412-YC020 |
| 77413A | No. 3 fuel pipe retaining ring bracket | 77413-YC020 |
| 77415 | No. 5 fuel pipe retaining ring bracket | 77415-YC020 |
| 77416 | No. 6 fuel pipe retaining ring bracket | 77416-YC010 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-YC010 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-YC010 |
| 77611A | Pin (for fuel tank strap) | 90089-25002 |
| 77631A | Fuel tank center lower protective shell | 77631-YC010 |
| 77651A | No. 1 fuel tank liner | 77652-32030 |
| 77652 | No. 1 fuel tank liner | 77652-20110 |
| 77681 | Fuel tank right side strap seat | 77681-YC010 |
| 77682 | Fuel tank left side strap seat | 77681-YC010 |
| 77740 | Carbon canister assembly | 77740-06130 |
| 77746 | No.2 carbon canister filter | 77745-06020 |
| 77751 | Carbon canister base bracket | 77751-06040 |
| 77754A | No. 2 carbon canister outlet hose | 77754-06040 |
| 77785 | fuel pump wiring harness | 77785-06030 · 77785-52020 |
