Toyota CAMRY 挡泥板和扰流板 — Figure 7601

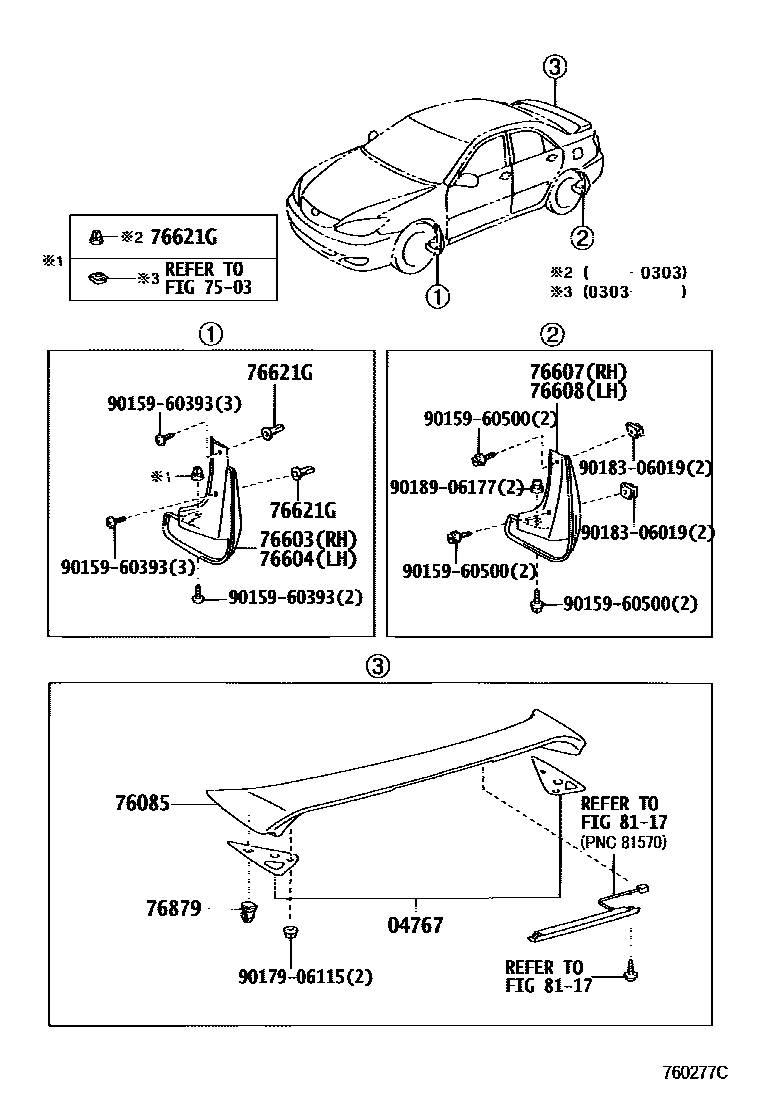

Toyota CAMRY EPC diagram 7601, 挡泥板和扰流板, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04767 | Rear spoiler guard assembly | 04767-YC010 |
| 76085 | Rear spoiler sub-assembly | 76871-YC900 |
| 76603 | Right front fender fender sub-assembly | 76621-YC050 |
| 76604 | Left front fender fender sub-assembly | 76622-YC050 |
| 76607 | Right rear side fender sub-assembly | 76625-YC090 |
| 76608 | Left rear side fender sub-assembly | 76626-YC090 |
| 76621G | Gasket No. 1 | 90189-06006 |
| 76879 | No. 1 rear spoiler clip | 76879-12040 |
