Toyota CAMRY 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota CAMRY EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 9 PNC and OE references.

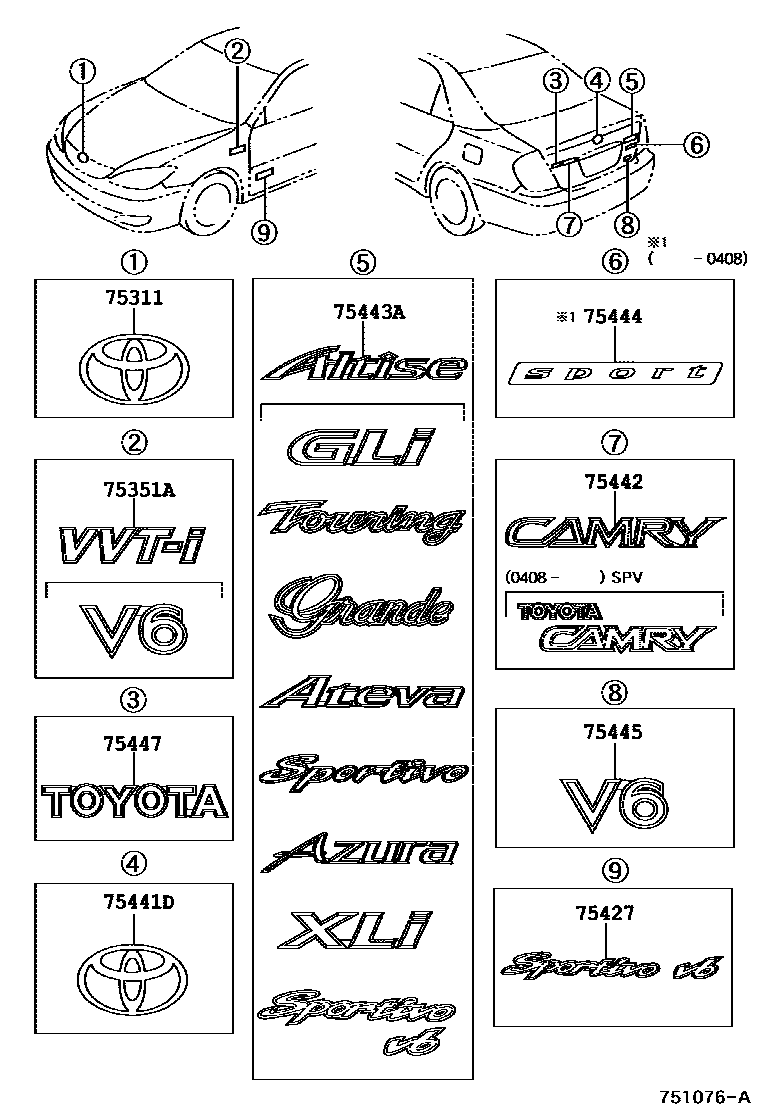

Toyota CAMRY 丰田徽标和铭牌(车外和车内) EPC diagram — 751076A
丰田徽标和铭牌(车外和车内) — 751076A (200208 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-YC050 · 75311-YC060
75351AFront fender label75444-YC110 · 75444-YC120 · 75444-YC130 · 75444-YC140 · 75444-YC150
75427front door nameplate75427-YC010
75441DTrunk door No. 1 name plate75441-YC170
75442Trunk door number plate No. 275442-YC110 · 75442-YC120 · 75442-YC130 · 75442-YC140
75443ATrunk door No. 3 nameplate75443-YC500 · 75443-YC520 · 75443-YC530 · 75443-YC540 · 75443-YC550 · 75443-YC570 · 75443-YC580 · 75443-YC590 · 75443-YC600 · 75443-YC620
75444Trunk door No. 4 nameplate75443-YC560 · 75443-YC630
75445Trunk door No. 5 name plate75444-YC120 · 75444-YC140
75447Trunk door No. 7 nameplate75447-YC010 · 75447-YC020
