Toyota CAMRY 烟灰盒 — Figure 7404

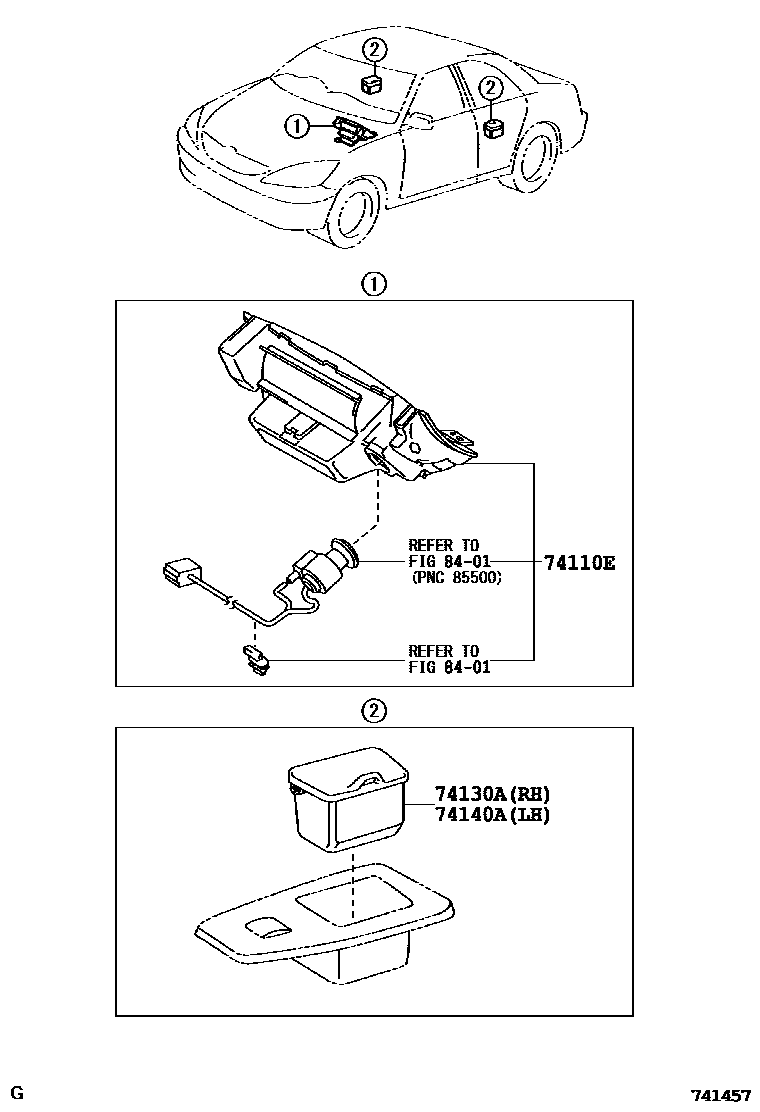

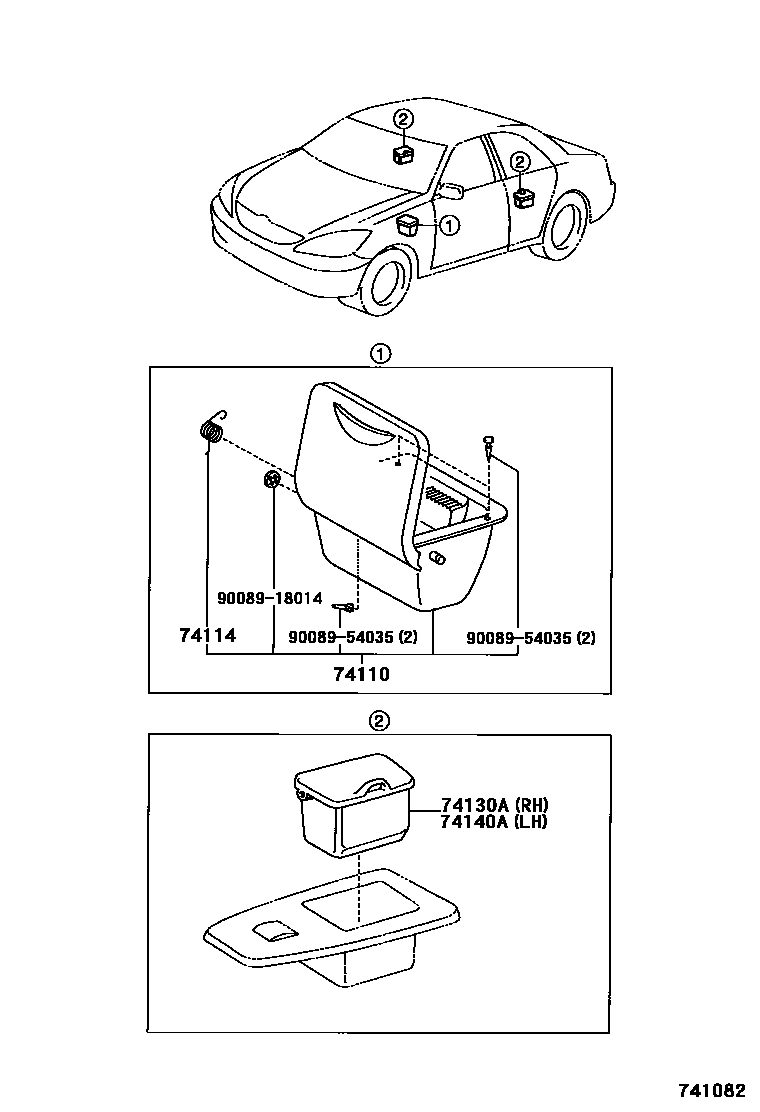

Toyota CAMRY EPC diagram 7404, 烟灰盒, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74110 | Dashboard ashtray assembly | 74110-YC010 |
| 74110E | Front ashtray assembly | 74110-33210 · 74110-33230 |
| 74114 | Front ashtray guard spring | 74124-YC020 |
| 74130A | Right rear ashtray assembly | 74130-33010 · 74130-33040 |
| 74140A | Left rear ashtray assembly | 74130-33010 · 74130-33040 |
