Toyota CAMRY 扶手和遮阳板 — Figure 7401

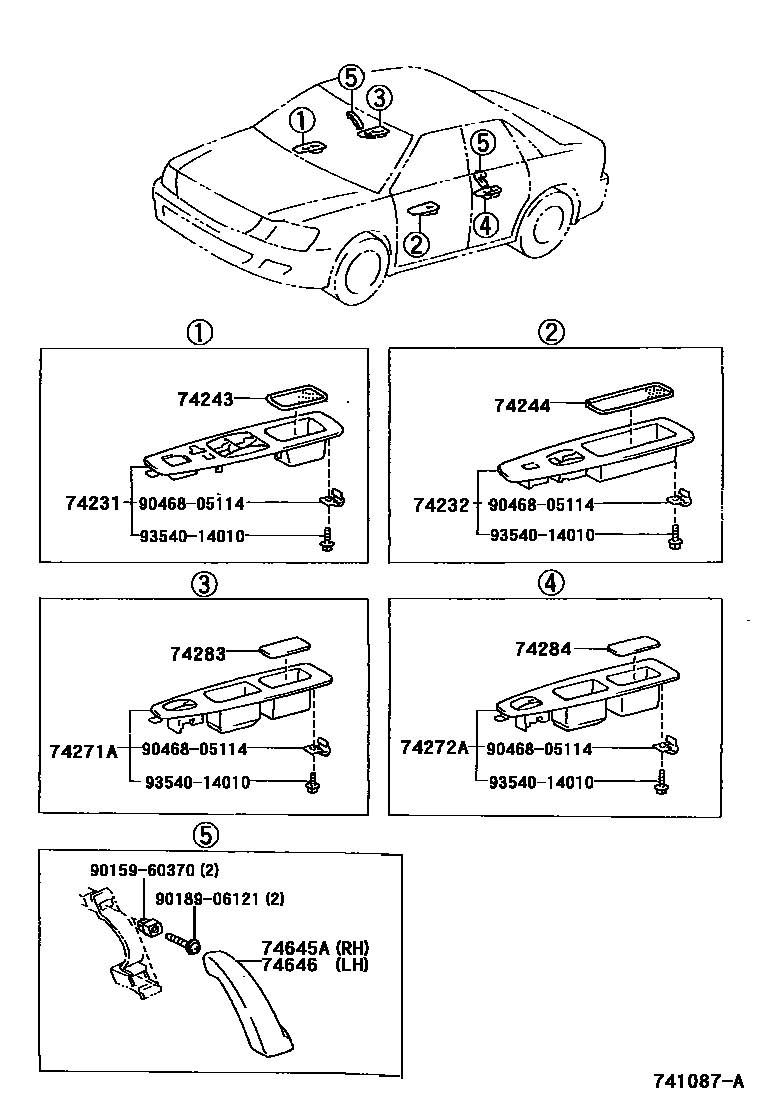

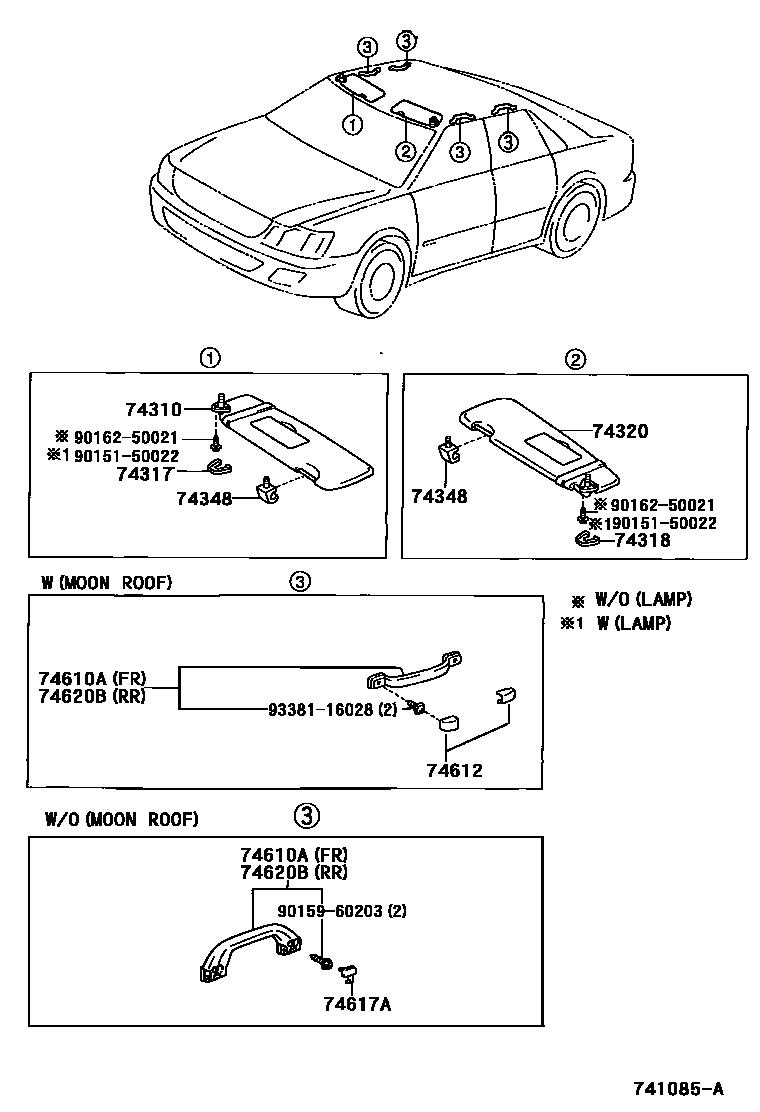

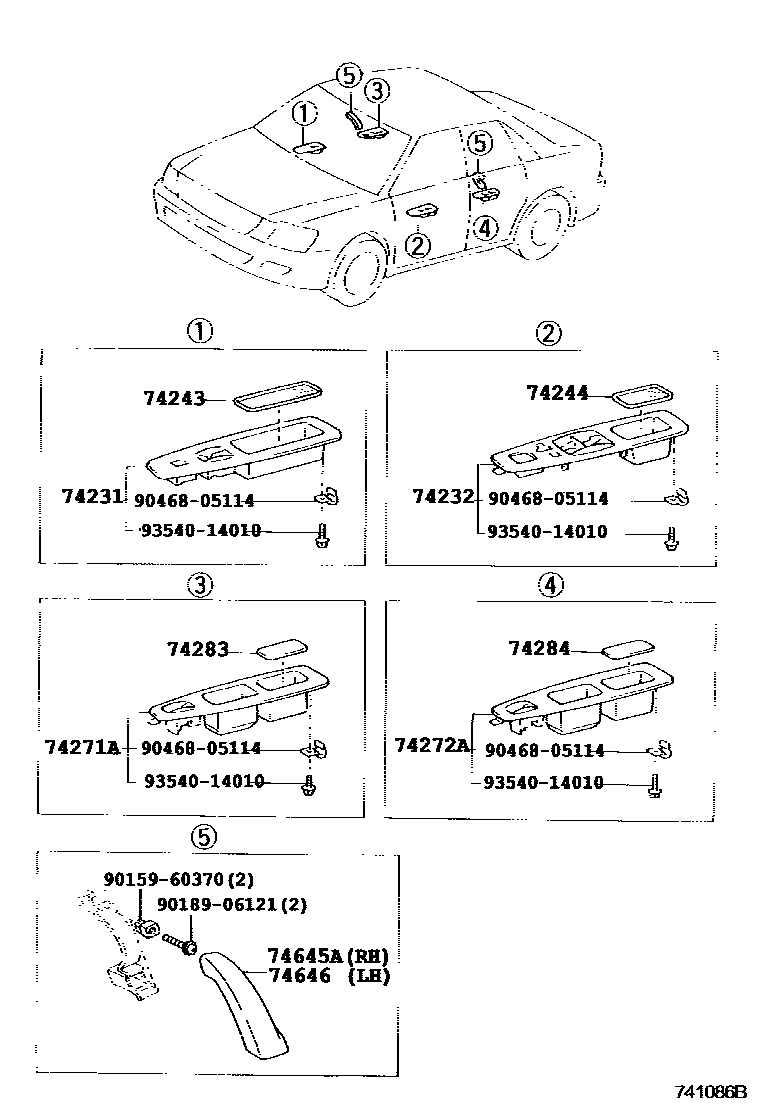

Toyota CAMRY EPC diagram 7401, 扶手和遮阳板, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-33230 · 74231-33250 · 74231-33260 · 74231-33261 · 74231-33340 · 74231-YC100 · 74231-YC110 |
| 74232 | Left front armrest upper panel | 74232-33190 · 74232-33200 · 74232-33210 · 74232-33211 · 74232-33280 · 74232-YC030 · 74232-YC100 |
| 74243 | Right front door armrest lower cover | 74243-YC010 · 74243-YC020 |
| 74244 | Left front door armrest lower cover | 74243-YC020 · 74244-YC010 |
| 74271A | Right rear door armrest upper panel | 74271-33100 · 74271-33111 · 74271-33140 · 74271-33190 · 74271-YC060 |
| 74272A | Left rear door armrest upper panel | 74272-33100 · 74272-33111 · 74272-33140 · 74272-33190 · 74272-YC060 |
| 74283 | Right rear door armrest lower seat cover | 74283-YC010 · 74283-YC020 |
| 74284 | Left rear door armrest lower seat cover | 74283-YC020 · 74284-YC010 |
