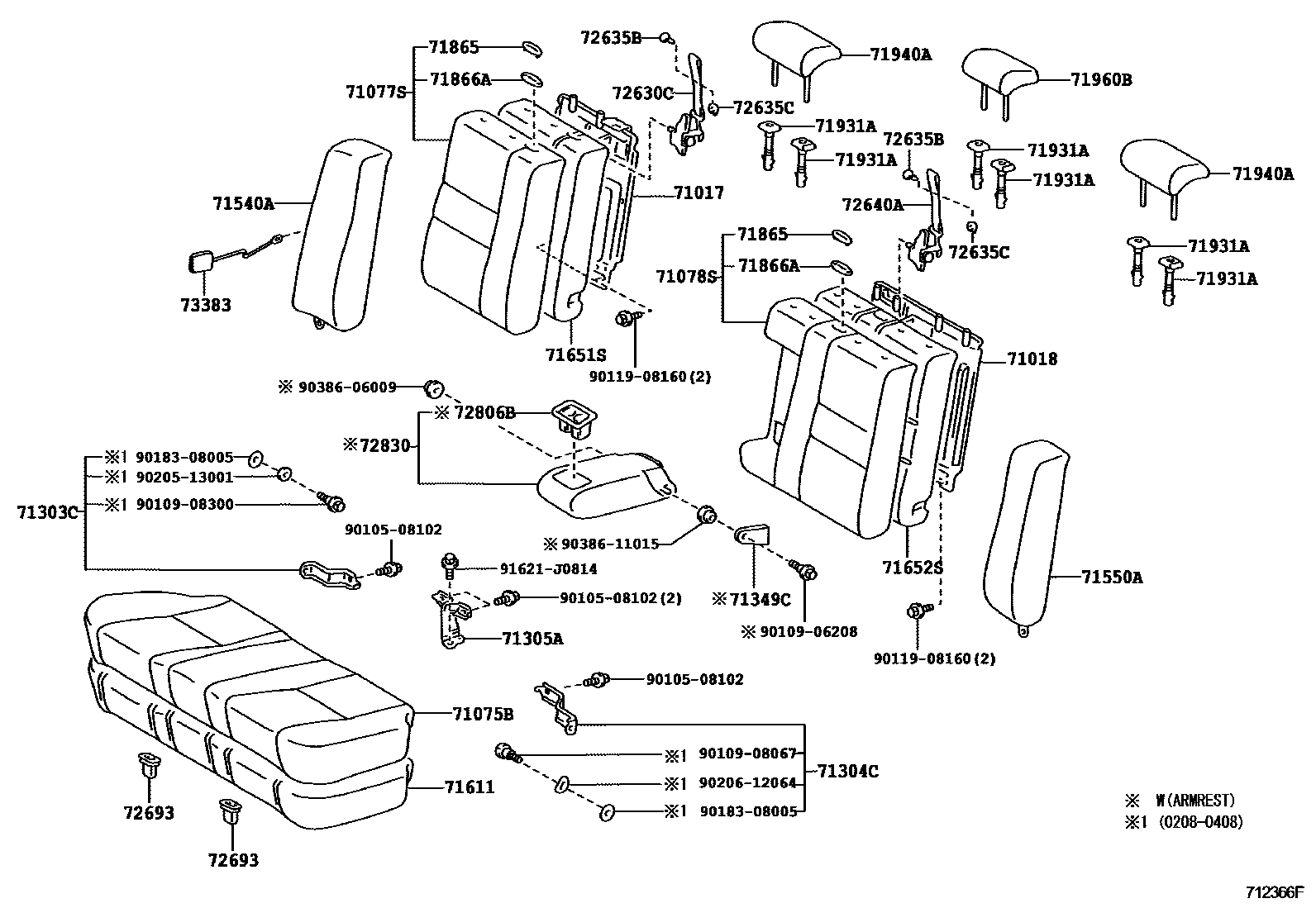

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-YC080 · 71017-YC110 |
| 71018 | Rear left seat back frame sub-assembly | 71018-YC100 · 71018-YC110 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-YC040 |
| 71304C | Rear left seat back hinge sub-assembly | 71303-YC030 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-YC040 |
| 71349C | Rear seat back hinge cover | 71349-YC010 |
| 71611 | Rear seat cushion cushion | 71503-YC030 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-YC110 · 71651-YC120 · 71651-YC130 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-YC130 · 71652-YC140 · 71652-YC150 |
| 71866A | Rear seat No. 2 face frame | 71866-YC010 |
| 72693 | Rear seat cushion hook | 72693-20060 |
| 73383 | Rear seat belt hook | 73383-YC010 |
