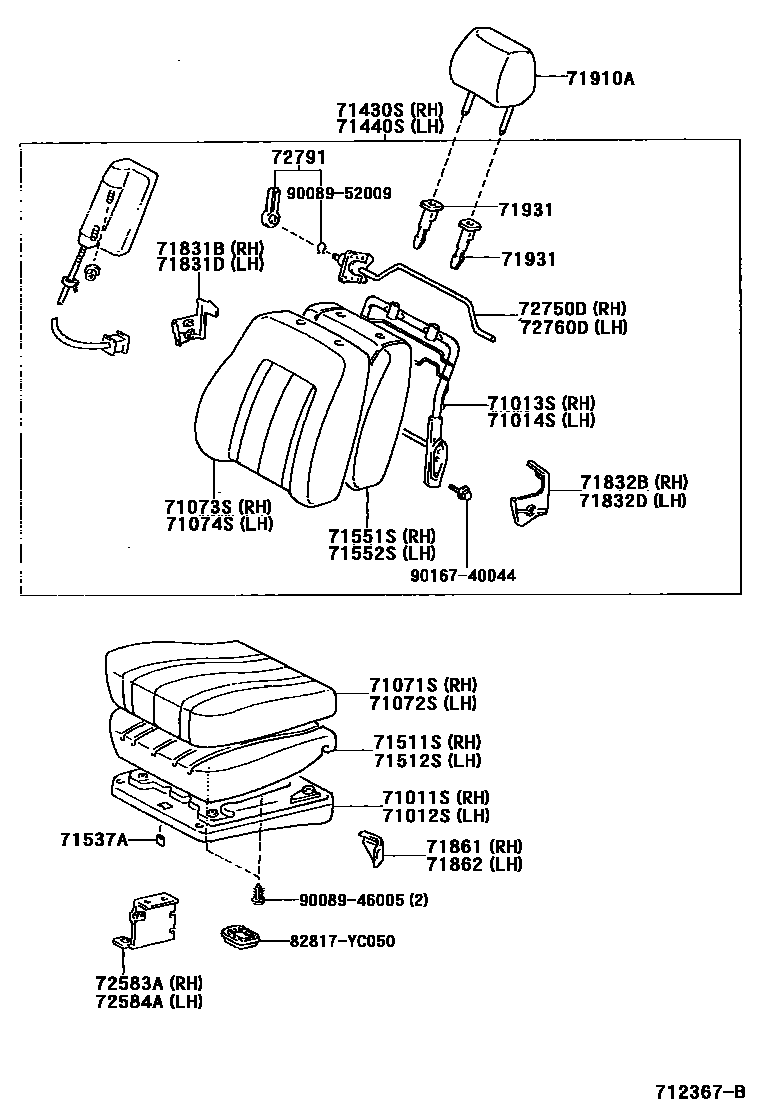

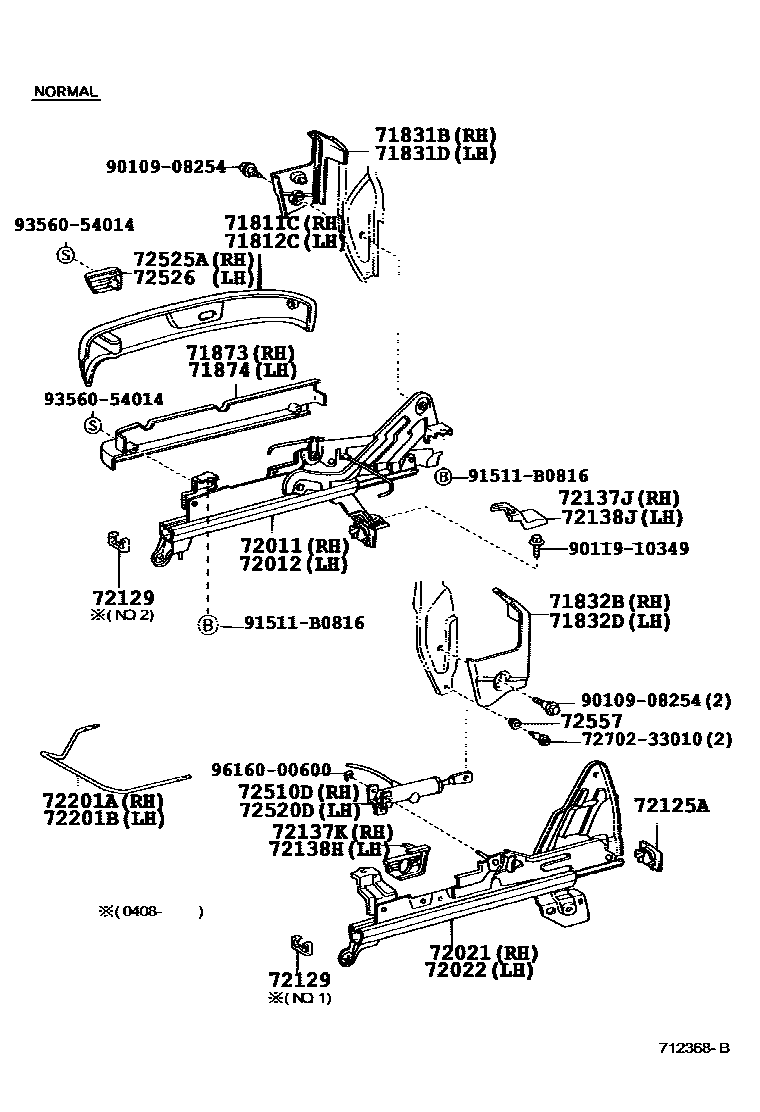

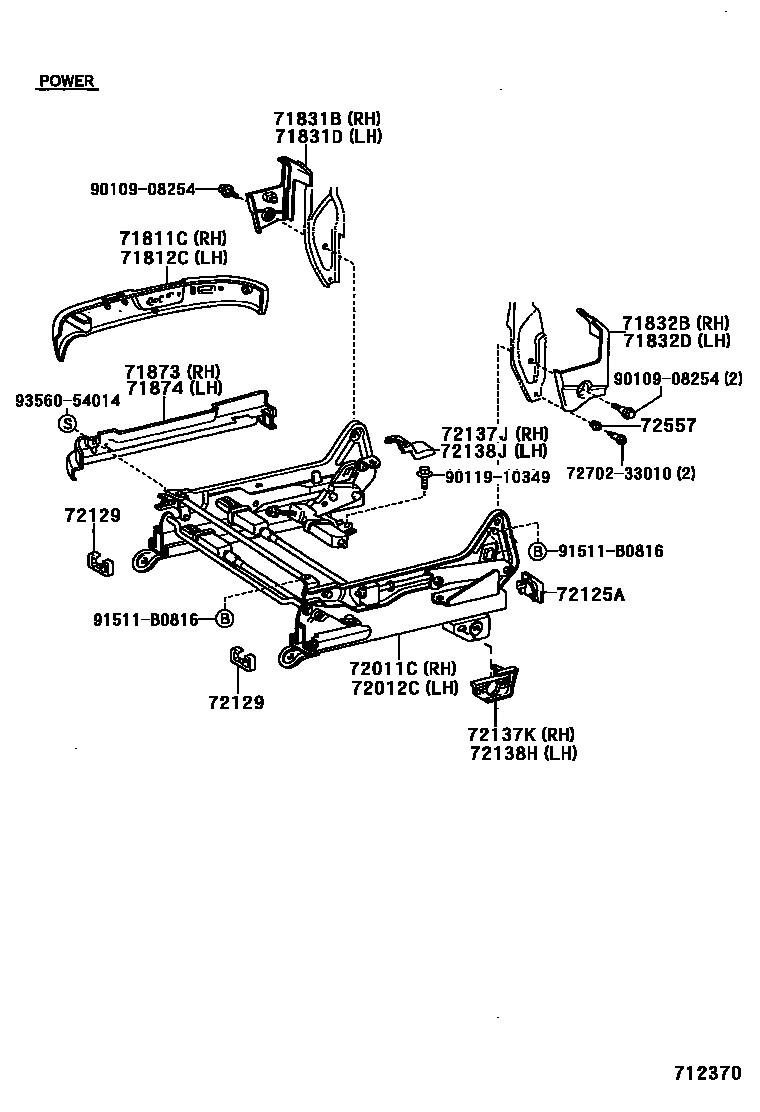

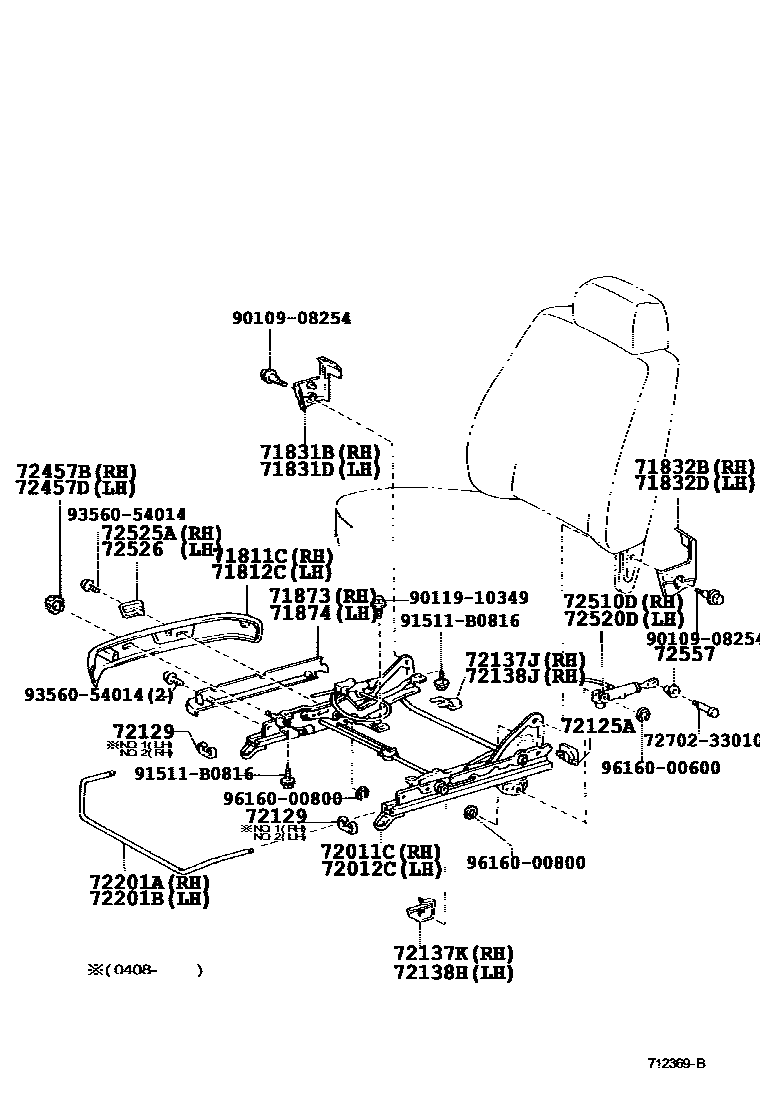

Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101
Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-YC040 |
| 71012S | Front left seat cushion frame sub-assembly | 71011-YC040 |
| 71013S | Front right seat back frame sub-assembly | 71013-YC040 · 71013-YC060 |
| 71014S | Front left seat back frame sub-assembly | 71013-YC040 · 71014-YC010 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-YC010 · 71511-YC060 · 71511-YC070 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-YC060 · 71511-YC070 |
| 71537A | Front seat cushion protective cover | 71537-YC010 |
| 71551S | Front right seat back cushion (for split seats) | 71551-YC020 · 71551-YC040 · 71551-YC050 |
| 71552S | Front left seat back cushion (for split seats) | 71551-YC020 · 71551-YC040 · 71552-YC020 |
| 71831B | Front right seat hinge cover | 71831-33021 · 71831-YC020 |
| 71831D | Front right seat hinge cover | 71831-33021 · 71831-YC020 |
| 71832B | Front left seat hinge cover | 71832-33021 · 71832-YC020 |
| 71832D | Front left seat hinge cover | 71832-33021 · 71832-YC020 |
| 72011 | Front right seat outer adjuster sub-assembly | 72011-YC090 |
| 72011C | Front right seat adjuster sub-assembly | 72010-33180 · 72010-YC030 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-YC060 |
| 72012C | Front left seat adjuster sub-assembly | 72020-33140 · 72020-YC020 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-YC070 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-YC050 |
| 72125A | Rear seat upper slide rail cover | 72129-YC020 |
| 72129 | No. 1 seat slide rail lower rail protective cover | 72129-YC010 · 72129-YC030 |
| 72201A | Right seat slide rail handle sub-assembly | 72201-33010 |
| 72201B | Left seat slide rail handle sub-assembly | 72201-33010 |
| 72510D | Right seat back inclination outer adjuster assembly | 72510-06010 · 72510-33010 |
| 72520D | Left side seat back tilt angle external adjuster assembly | 72520-06010 · 72520-33010 |
| 72557 | Seat back recliner spacer | 72557-33010 |
| 72583A | Right seat side trim bracket | 72583-33020 |
| 72584A | Left side seat side trim bracket | 72584-33010 |
| 72750D | Right lumbar support adjuster assembly | 72750-YC010 |
| 72760D | Left lumbar support adjuster assembly | 72760-YC010 |
