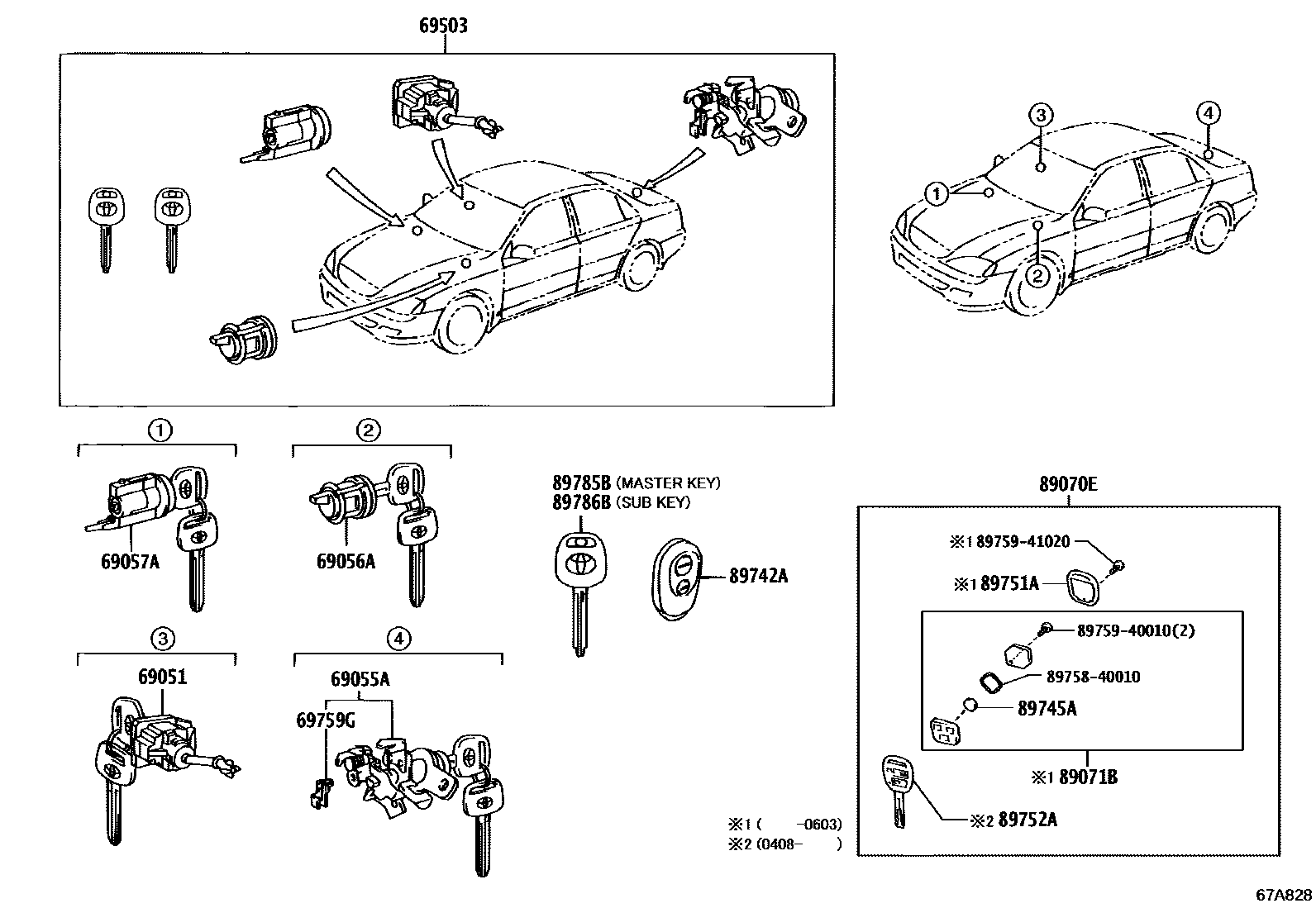

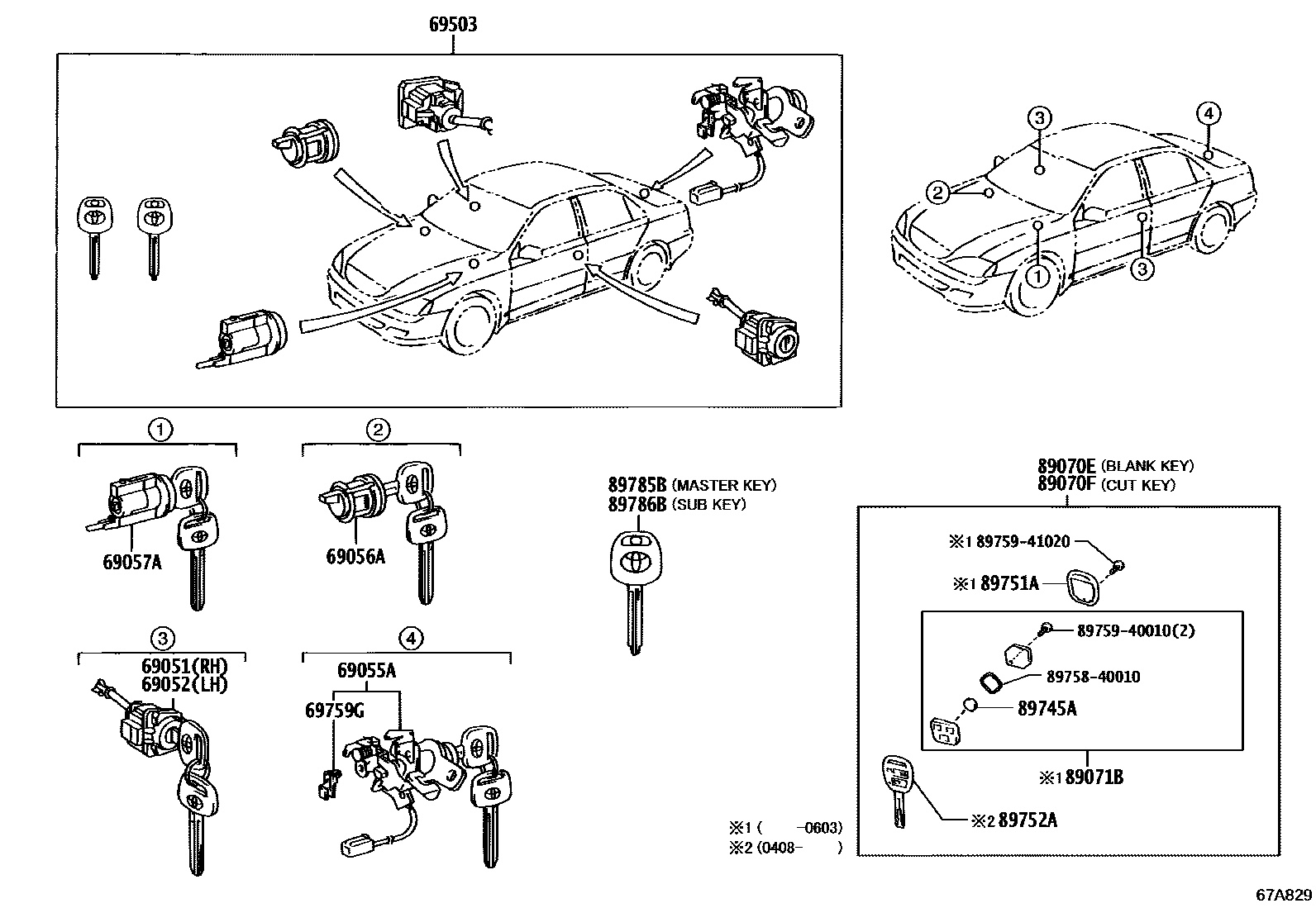

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-06030 |
| 69052 | Left door lock cylinder and key assembly | 69052-06030 |
| 69055A | Luggage lock cylinder and key assembly | 69055-06040 · 69055-06050 |
| 69056A | Glove box lock cylinder and key assembly | 69056-06030 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-06060 · 69057-06070 · 69057-06071 · 69057-06080 · 69057-06081 |
| 69503 | Door lock cylinder components | 69005-06070 · 69005-06080 · 69005-06090 · 69005-06091 · 69005-06100 · 69005-06110 · 69005-06111 · 69005-06120 · 69005-06121 |
| 69759G | Trunk door lock core buckle | 69759-06020 |
| 89070E | Remote key assembly | 89070-06040 · 89070-06041 · 89070-06050 · 89070-06051 · 89070-06060 · 89070-06061 |
| 89070F | Remote key assembly (internal tooth key) | 89070-06040 |
| 89071B | Remote key sub-assembly module assembly | 89071-53012 · 89071-53021 · 89071-60081 |
| 89742A | remote key | 89780-YF010 · 89780-YF011 · 89780-YF020 · 89780-YF021 |
| 89745A | Transmitter battery | 89745-40010 |
| 89751A | Transmitter housing cover | 89751-13010 · 89751-44020 |
| 89752A | transmitter housing | 89752-13020 · 89752-33060 |
| 89785B | transceiver key master transmitter | 89785-26020 |
| 89786B | transceiver key secondary transmitter | 89786-60050 |
