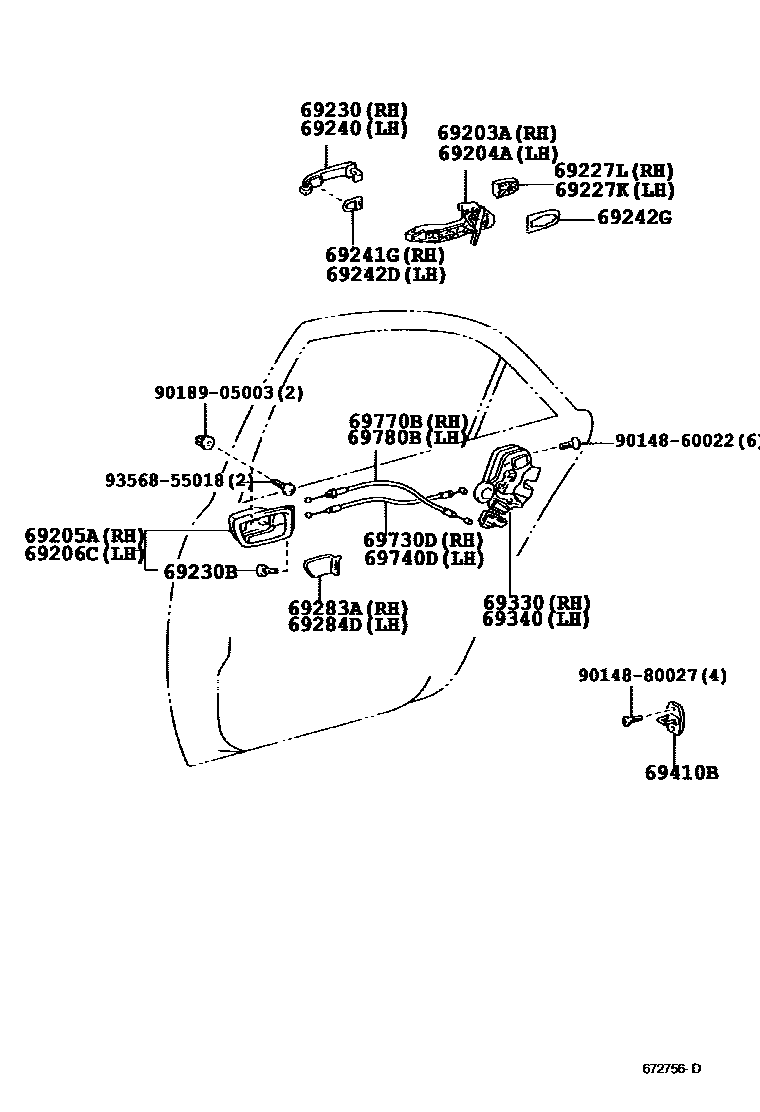

Toyota CAMRY 后门锁和后门把手 — Figure 6706
Toyota CAMRY EPC diagram 6706, 后门锁和后门把手, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69203A | Right rear door outer handle frame sub-assembly | 69203-YC010 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-YC010 |
| 69227K | Right rear door outer handle cover | 69227-YC040 · 69227-YC060 |
| 69227L | Left rear door outer handle cover | 69227-YC040 · 69227-YC060 |
| 69230 | Right rear door outer handle assembly | 69211-YC060 · 69211-YC080 |
| 69230B | Cushion pad (for rear door outer handle) | 90089-54015 |
| 69240 | Left rear door outer handle assembly | 69211-YC060 · 69211-YC080 |
| 69241G | Rear door front exterior handle pad | 69241-YC030 |
| 69242D | Left rear door outer handle pad | 69241-YC030 |
| 69242G | Rear door rear outer handle pad | 69241-YC020 |
| 69330 | Right rear door door lock assembly | 69050-06900 · 69330-06900 |
| 69340 | Left rear door lock assembly | 69060-06900 · 69340-06900 |
| 69410B | Rear door lock plate assembly | 69410-06010 |
| 69730D | Right rear door lock remote control cable assembly | 69730-06030 |
| 69740D | Left rear door lock remote control cable assembly | 69730-06030 |
| 69770B | Right rear door inner lock cable assembly | 69770-06020 |
| 69780B | Left rear door inner lock cable assembly | 69770-06020 |
