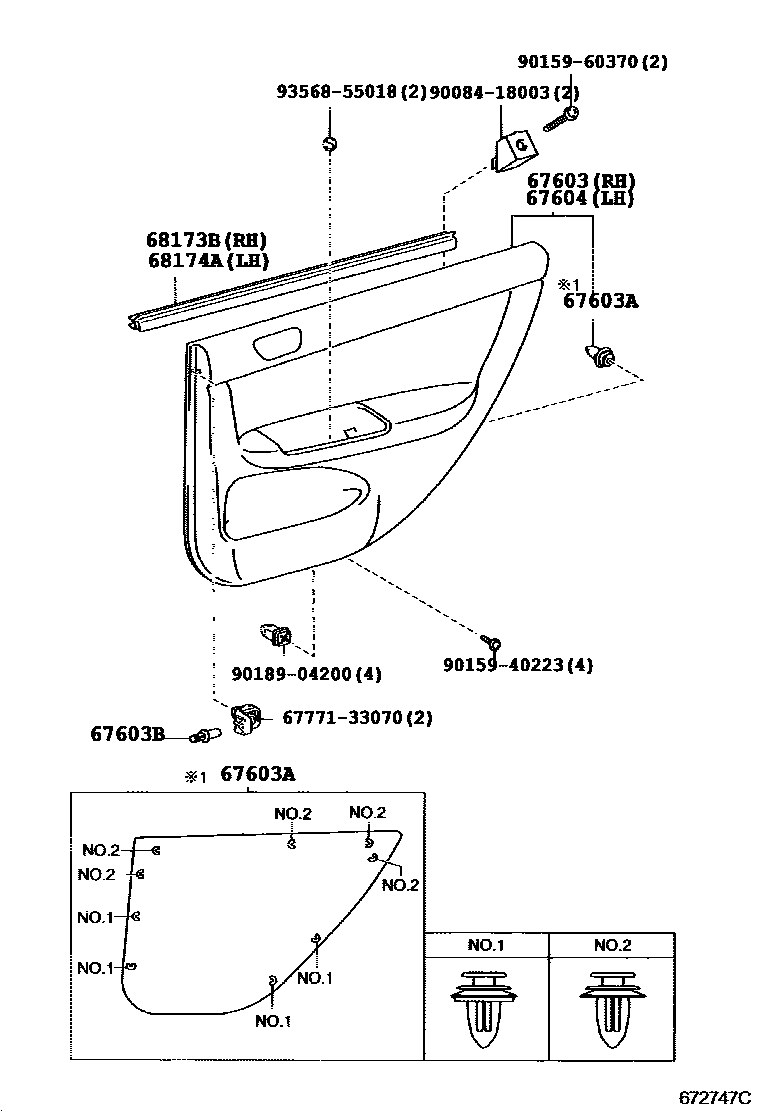

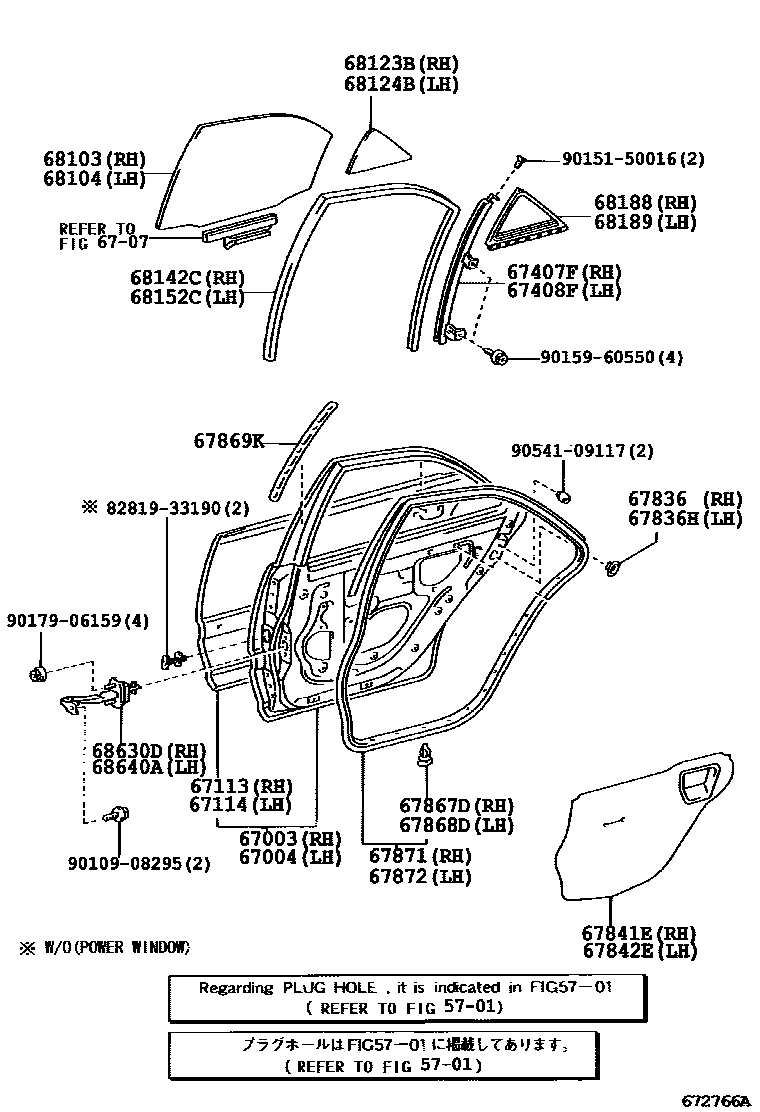

Toyota CAMRY 后门板和后门玻璃 — Figure 6705
Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-06030 |
| 67004 | Left rear door panel sub-assembly | 67004-06030 |
| 67113 | Right rear door outer panel | 67113-06020 |
| 67114 | Left rear door outer panel | 67114-06020 |
| 67407F | Right rear door window rear lower frame sub-assembly | 67407-33060 |
| 67408F | Left rear door window rear lower frame sub-assembly | 67408-33060 |
| 67603A | Fixings (for rear door trim) | 90467-09206 · 90467-10161 |
| 67836 | Right rear door lock child restraint cover | 67836-12040 |
| 67836H | Left rear door lock child restraint cover | 67836-12040 |
| 67841E | Right rear door access hole cover | 67841-YC080 · 67841-YC090 |
| 67842E | Left rear door access hole cover | 67842-YC080 · 67842-YC090 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67869K | Left door seal strip clip | 67869-30080 |
| 67871 | Right rear door sealing strip | 67871-YC020 |
| 67872 | Left rear door sealing strip | 67872-YC020 |
| 68103 | Right rear door glass sub-assembly | 68103-YC100 |
| 68104 | Left rear door glass sub-assembly | 68104-YC100 |
| 68123B | Right rear door corner window glass | 68123-YC020 |
| 68124B | Left rear door corner window glass | 68124-YC020 |
| 68142C | Right rear door glass lift slot | 68142-YC010 |
| 68152C | Left rear door glass lift slot | 68152-YC010 |
| 68173B | Right rear door glass inner sealing strip | 68173-YC010 |
| 68174A | Left rear door glass inner sealing strip | 68174-YC010 |
| 68188 | Right rear door corner window seal | 68188-YC010 |
| 68189 | Left rear door corner window seal | 68189-YC010 |
| 68630D | Right rear door opening limiter assembly | 68630-YC030 |
| 68640A | Left rear door opening limiter assembly | 68640-YC030 |
