Toyota CAMRY 前门车窗升降器和合页 — Figure 6704

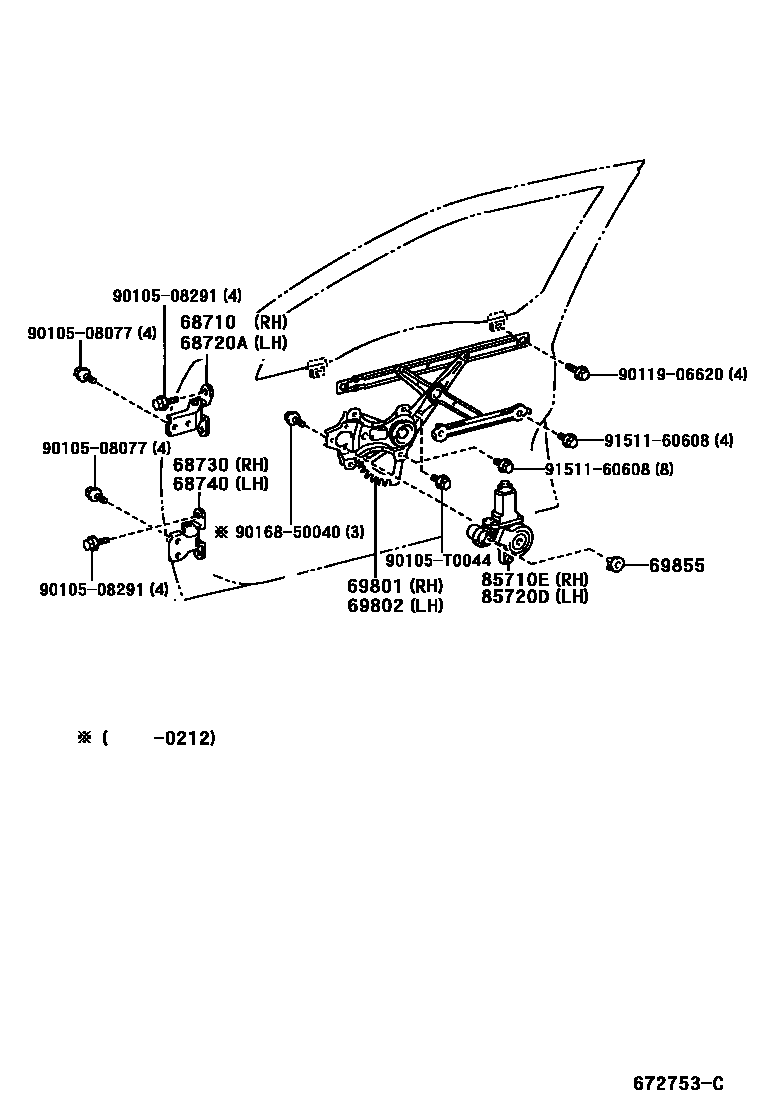

Toyota CAMRY EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-33030 · 68710-YC010 |
| 68720A | Left front door hinge assembly | 68720-33030 · 68720-YC010 |
| 68730 | Right front door lower hinge assembly | 68730-33020 · 68730-YC010 |
| 68740 | Left front door lower hinge assembly | 68740-33020 · 68740-YC010 |
| 69801 | Right front door window lifter sub-assembly | 69801-YC030 |
| 69802 | Left front door window lifter sub-assembly | 69802-YC030 |
| 69855 | Door window regulator gear cover | 69855-20010 |
| 85710E | Right power window lift motor assembly | 85710-02060 · 85710-42090 |
| 85720D | Left electric window lift motor assembly | 85720-06040 · 85720-42080 |
