Toyota CAMRY 前门锁和车门把手 — Figure 6703

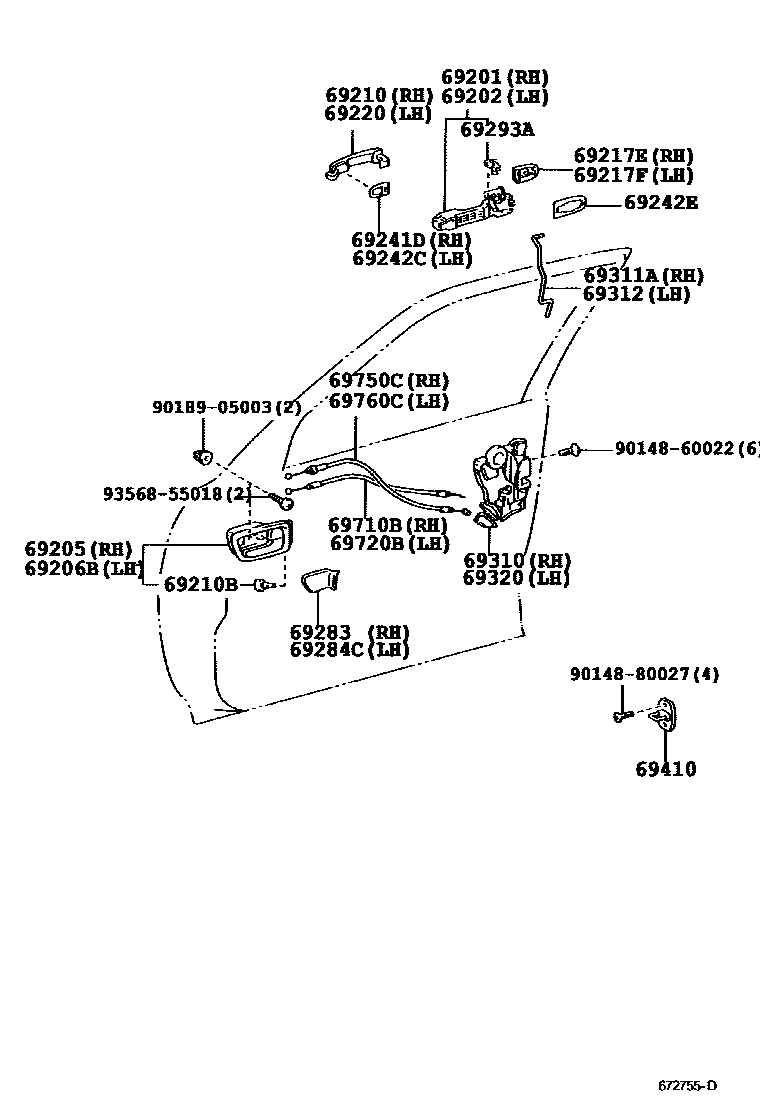

Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69201 | Right door outer handle sub-assembly | 69201-YC010 |
| 69202 | Left door outer handle sub-assembly | 69202-YC010 |
| 69210 | Right front door outer handle assembly | 69211-YC060 · 69211-YC080 |
| 69210B | Cushion pad (for front door outer handle) | 90089-54015 |
| 69217E | Right front door outer handle cover | 69217-YC030 · 69217-YC050 |
| 69217F | Left front door outer handle cover | 69217-YC010 · 69217-YC030 · 69217-YC050 · 69218-YC010 |
| 69220 | Left front door outer handle assembly | 69211-YC060 · 69211-YC080 |
| 69241D | Right front door outer handle pad | 69242-YC020 |
| 69242C | Left front door outer handle pad | 69242-YC020 |
| 69242E | Front door rear outer handle pad | 69241-YC020 |
| 69293A | Front door outer handle buckle | 69293-12030 · 69293-12040 |
| 69310 | Right front door lock assembly | 69030-06900 · 69030-06901 · 69310-06900 |
| 69311A | Right front door lock opening lever | 69311-06040 |
| 69312 | Left front door lock opening lever | 69312-06040 |
| 69320 | Left front door lock assembly | 69040-06900 · 69040-06901 · 69320-06900 |
| 69410 | Front door lock plate assembly | 69410-06010 |
| 69710B | Right front door lock remote control cable assembly | 69710-06040 |
| 69720B | Left front door lock remote control cable assembly | 69710-06040 |
| 69750C | Right front door inner lock cable assembly | 69750-06030 |
| 69760C | Left front door inner lock cable assembly | 69750-06030 |
