Toyota CAMRY 前门板和前门玻璃 — Figure 6701

Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 2 images and 28 PNC and OE references.

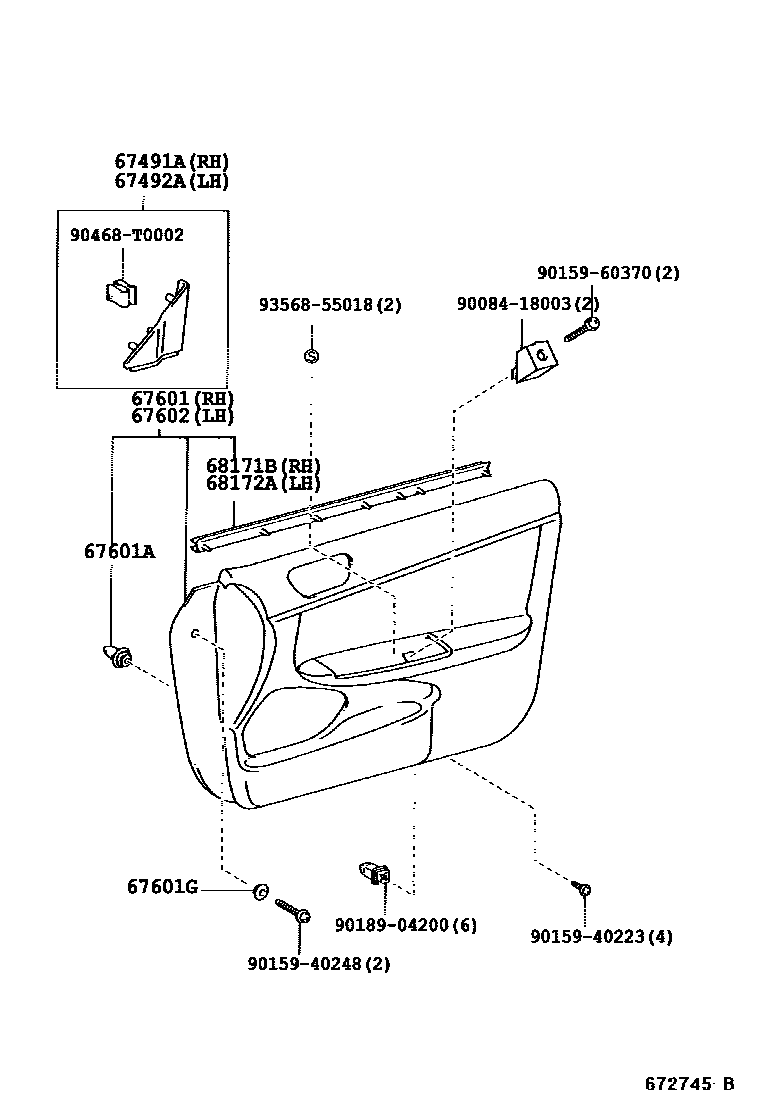

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 672745B
前门板和前门玻璃 — 672745B (200208 – 999999)

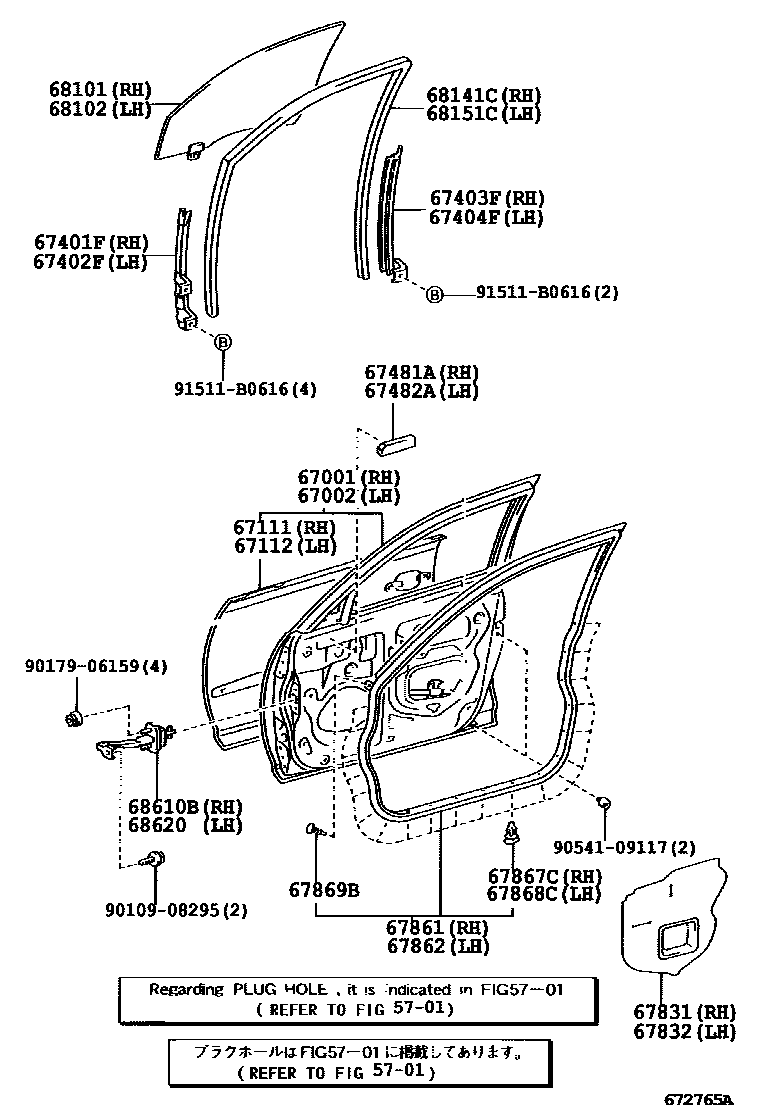

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 672765A
前门板和前门玻璃 — 672765A (200208 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-06050
67002Left front door panel sub-assembly67002-06050
67111Outer right front door panel67111-06030
67112Outer left front door panel67112-06030
67401FRight front door front lower door frame sub-assembly67401-06040 · 67401-33040
67402FLeft front door front lower door frame sub-assembly67402-06040 · 67402-33040
67403FRight front door rear lower door frame sub-assembly67403-06020
67404FLeft front door rear lower door frame sub-assembly67404-06020
67481ARight front door front lower door frame seal67481-YC030
67482ALeft front door front lower door frame seal67481-YC030 · 67482-YC020
67491ARight front door lower door frame bracket decorative strip67491-YC010
67492ALeft front door lower door frame bracket decorative strip67492-YC010
67601AFixings (for front door trim)90467-10161
67831Right front door access hole cover67831-YC060
67832Left front door access hole cover67832-YC060
67861Right front door seal67861-YC020
67862Left front door seal67862-YC020
67867CRight front door seal strip fixing67867-12150
67868CLeft front door seal strip fixing67867-12150
67869BFront door seal strip clip67869-20030
68101Right front door glass sub-assembly68101-YC070
68102Left front door glass sub-assembly68102-YC070
68141CRight front door glass lift channel68141-YC010 · 68141-YC011
68151CLeft front door glass lift channel68151-YC010 · 68151-YC011
68171BRight front door glass inner sealing strip68171-YC010
68172ALeft front door glass inner sealing strip68172-YC010
68610BRight front door opening limiter assembly68610-YC030
68620Left front door opening limiter assembly68620-YC020
