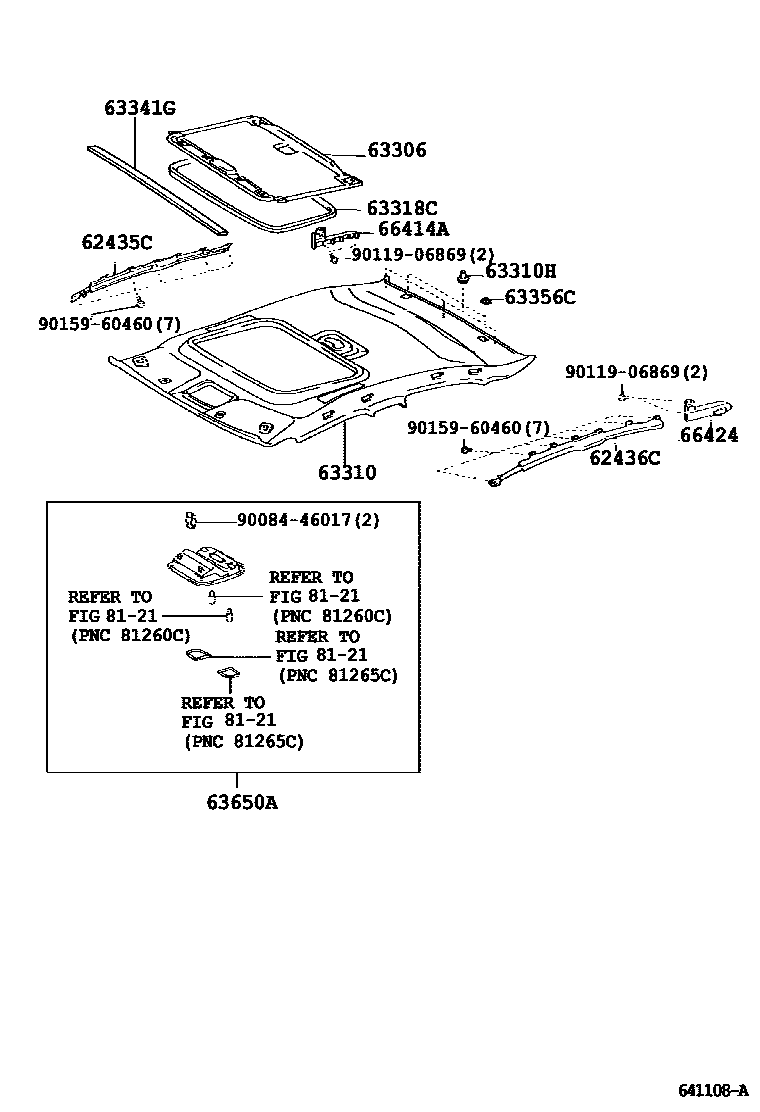

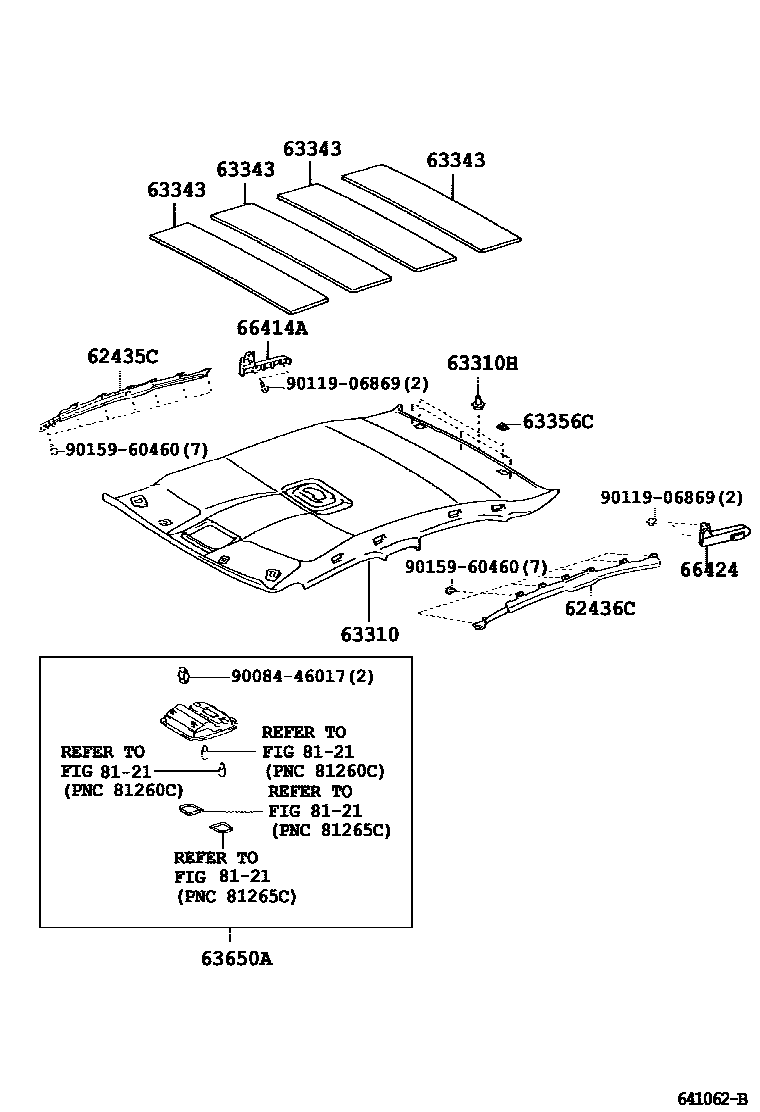

Toyota CAMRY 车顶内衬和消声垫 — Figure 6402
Toyota CAMRY EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62435C | Roof right side rail decorative pad | 62435-YC010 |
| 62436C | Roof left side rail decorative pad | 62436-YC010 |
| 63310 | Headlining assembly | 63311-YC900 · 63311-YC911 |
| 63341G | roof muffler mat | 63341-YC030 |
| 63343 | No. 3 roof muffler pad | 63343-YC040 |
| 66414A | Right rear longitudinal member spacer | 66414-YC010 |
| 66424 | Left rear longitudinal member spacer | 66424-YC010 |
