Toyota CAMRY 天窗板和背窗玻璃 — Figure 6104

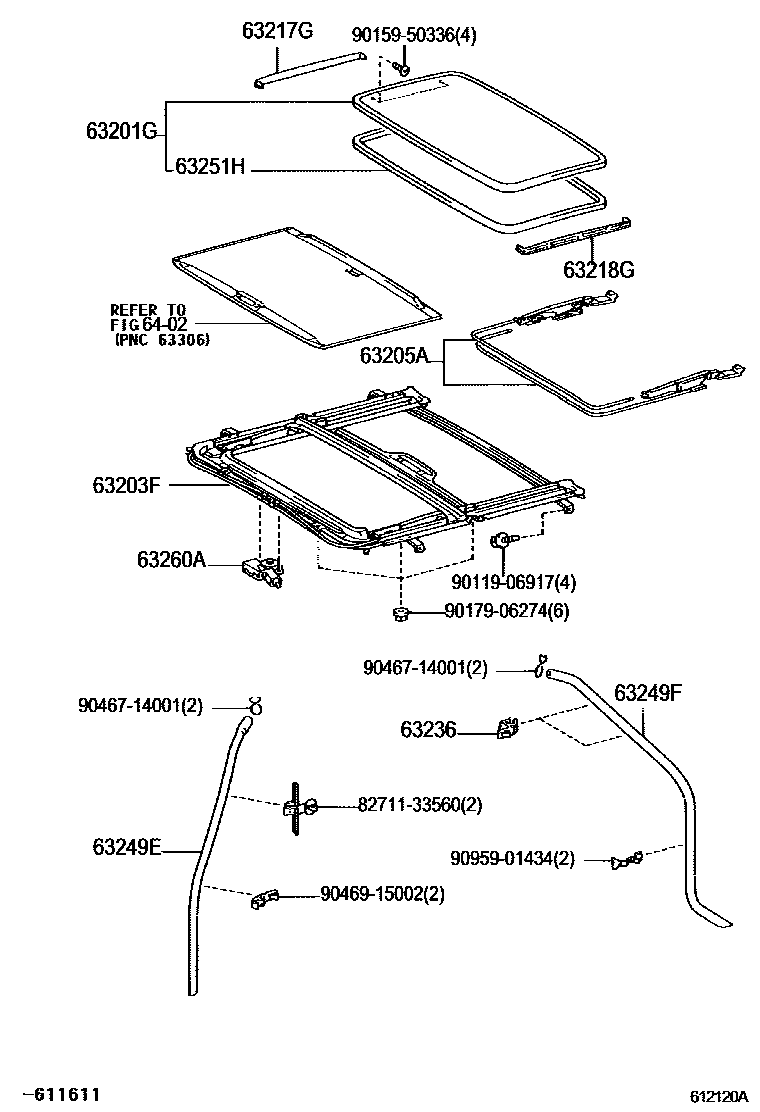

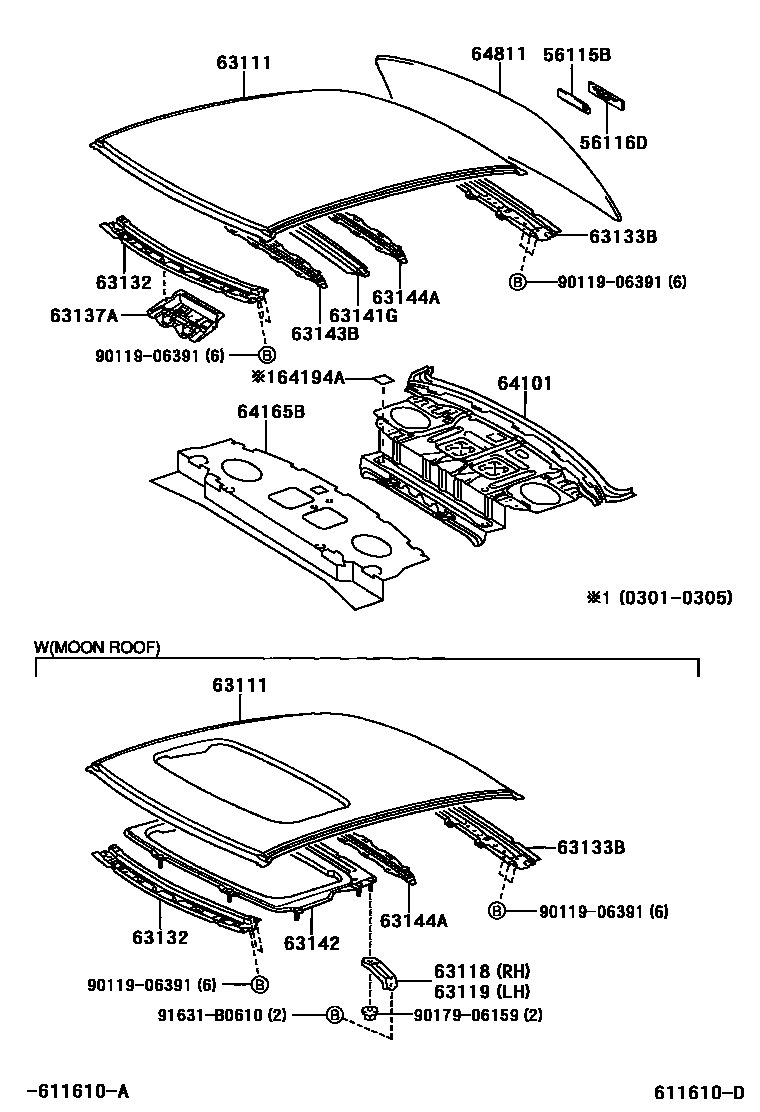

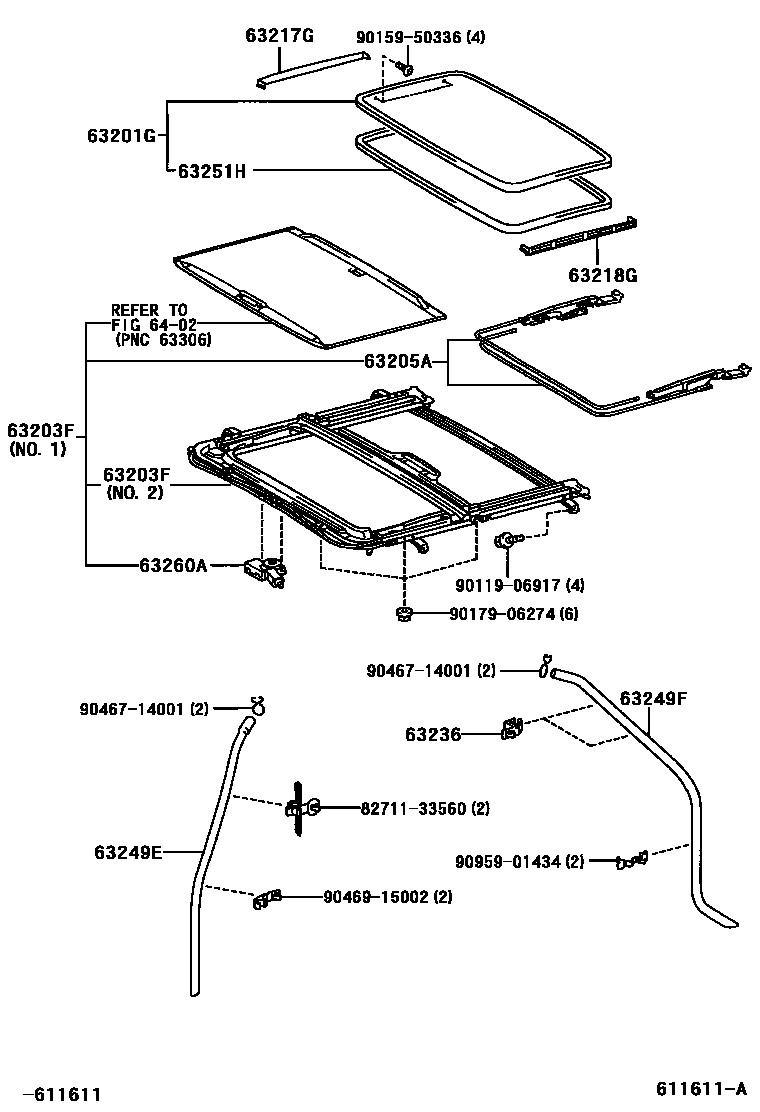

Toyota CAMRY EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30100 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 63111 | roof panel | 63111-06280 · 63111-06290 |
| 63118 | Right roof panel bracket | 63118-33010 |
| 63119 | Left roof panel bracket | 63118-33010 |
| 63132 | Windshield inner roof panel | 63102-06100 |
| 63133B | back window frame | 63133-06030 |
| 63137A | No. 1 ceiling light bracket | 63137-06020 |
| 63141G | No. 1 roof panel reinforcement | 63141-06030 |
| 63142 | No. 2 roof panel reinforcement | 63142-33040 |
| 63143B | No. 3 roof panel reinforcement | 63143-06020 |
| 63144A | No. 4 roof panel reinforcement | 63144-06030 · 63144-33080 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-33080 · 63201-33081 · 63201-33082 · 63201-33083 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-33040 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-33030 |
| 63217G | Right sliding sunroof trim | 63217-33040 |
| 63218G | Sliding sunroof trim, left | 63217-33040 |
| 63236 | Sliding sunroof or removable roof drain hose clip | 63236-33020 |
| 63249E | Sliding skylight drain hose | 63249-33060 |
| 63249F | Sliding skylight drain hose | 63249-33070 · 63249-33071 · 63249-33072 |
| 63251H | Sliding skylight seal | 63251-33050 · 63251-33060 · 63251-33061 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-33041 |
| 64101 | Upper back panel sub-assembly | 64101-06110 · 64101-06140 |
| 64165B | No. 1 upper back panel hole cover | 64165-YC010 |
| 64194A | Silencer pad on back panel | 64194-YC010 |
| 64811 | back window glass | 64811-YC060 · 64811-YC070 |
