Toyota CAMRY 中央扶手箱和支架 — Figure 5806

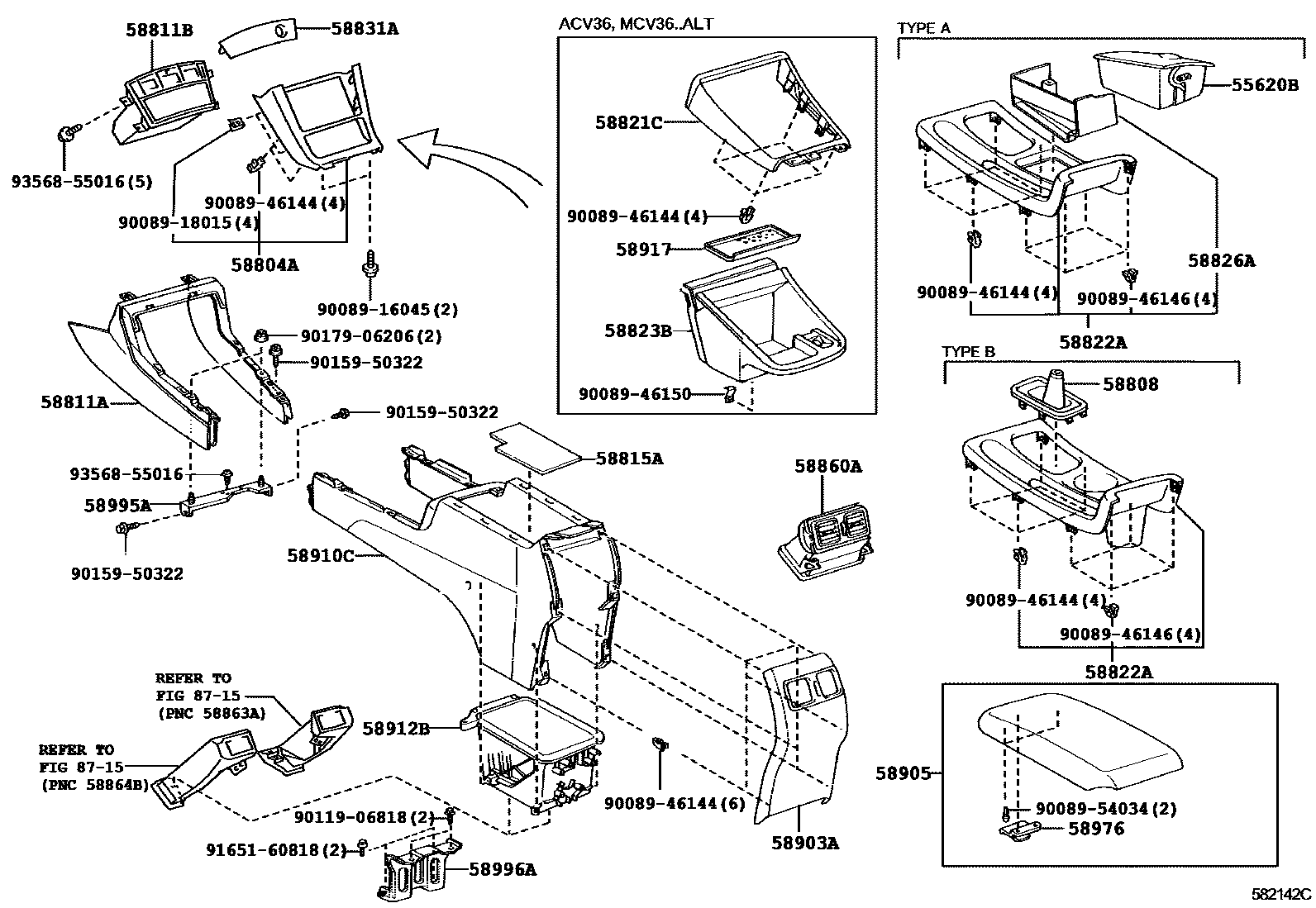

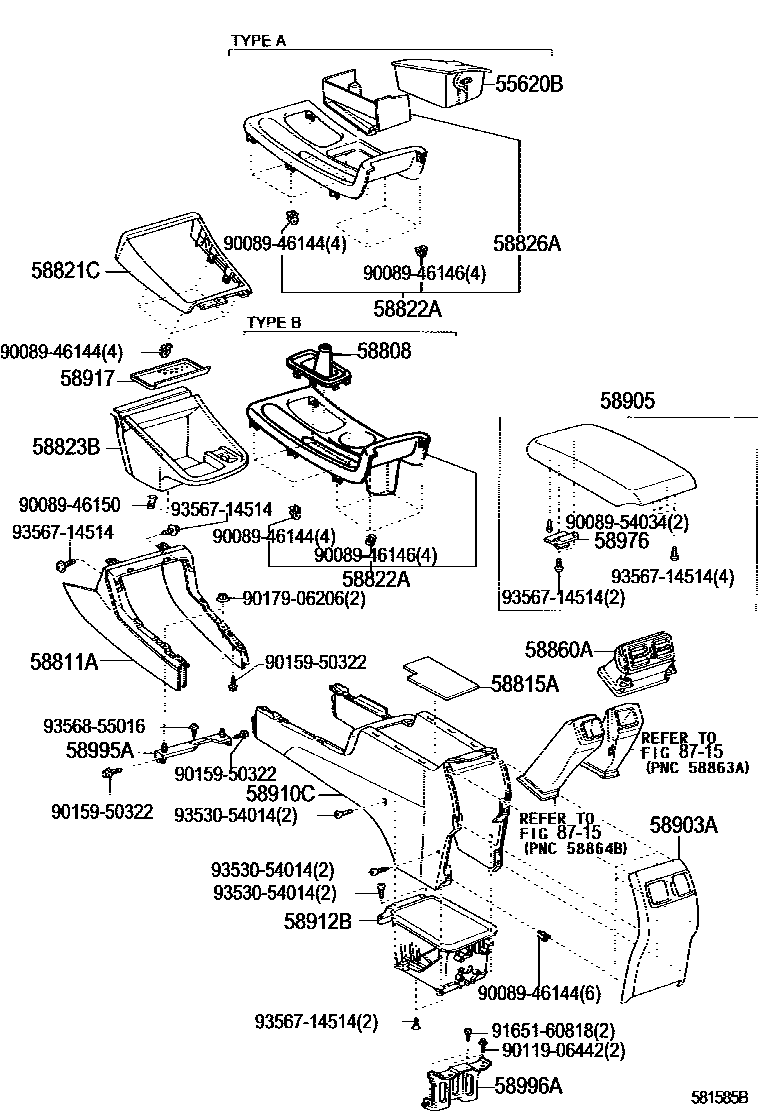

Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55620B | Dashboard cup holder | 55620-YC030 · 55620-YC040 |
| 58804A | Armrest box upper panel sub-assembly | 58804-YC110 · 58804-YC120 |
| 58811A | front armrest box | 58811-YC070 |
| 58811B | armrest box | 58802-33010 · 58802-33060 |
| 58815A | Armrest box felt pad | 58815-YC020 |
| 58821C | Armrest box upper panel | 58821-YC050 · 58821-YC060 · 58821-YC070 · 58821-YC080 |
| 58822A | Rear armrest box upper panel | 58805-YC010 · 58805-YC011 · 58805-YC020 · 58805-YC021 |
| 58823B | Armrest box cover | 58823-YC010 · 58823-YC020 |
| 58826A | Groove under armrest box | 58826-YC010 |
| 58831A | Front armrest box upper panel decorative parts | 58831-YC010 · 58831-YC020 |
| 58912B | Rear lower armrest box | 58912-YC030 |
| 58917 | Armrest box bottom pad No. 2 | 58917-YC010 |
| 58976 | Armrest box lid lock | 58976-YA010 · 58976-YA011 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-YC030 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-YC030 |
