Toyota CAMRY 浅盘形地板和车身下背板 — Figure 5801

Toyota CAMRY EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 30 PNC and OE references.

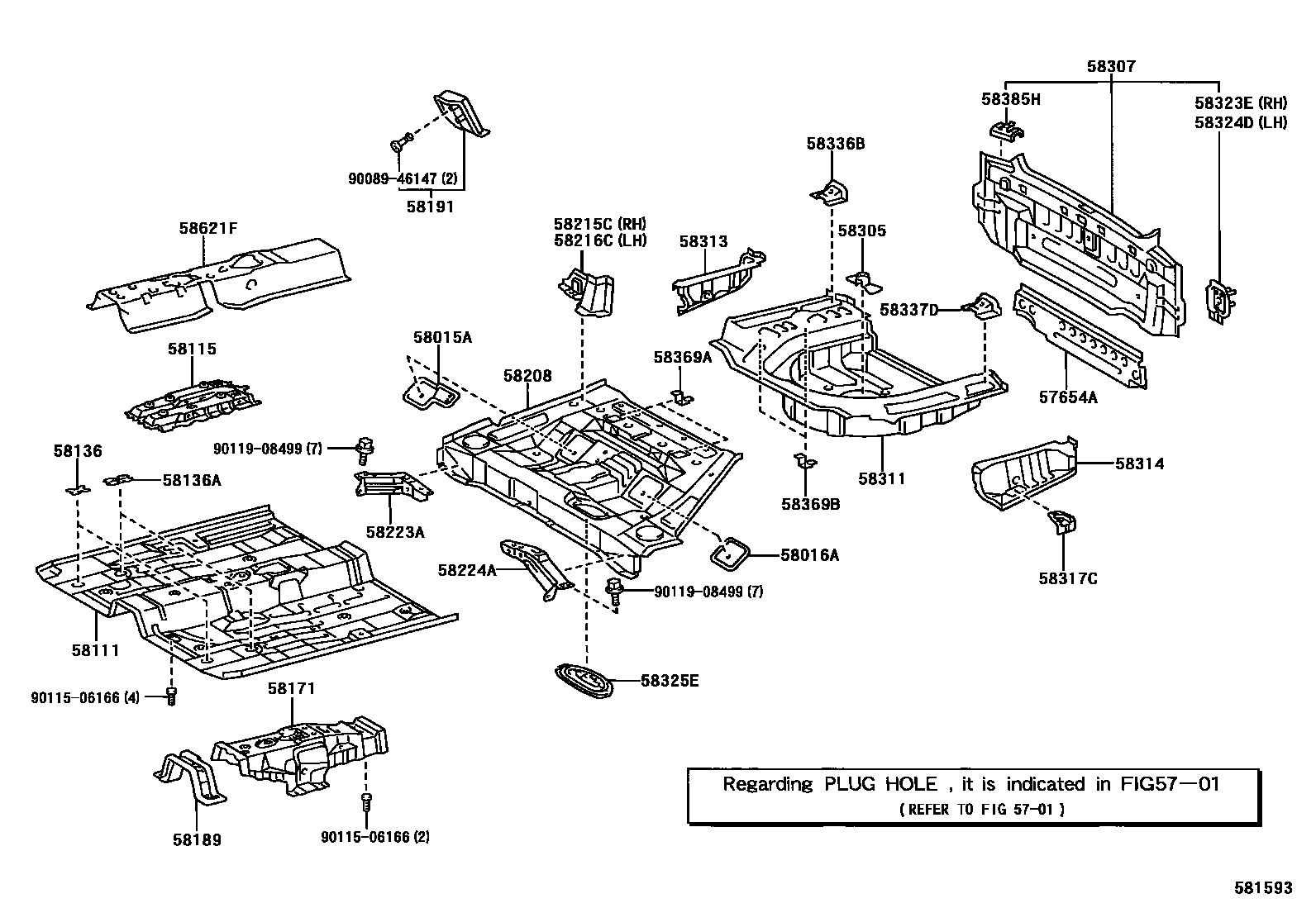

Toyota CAMRY 浅盘形地板和车身下背板 EPC diagram — 581593 — 浅盘形地板和车身下背板 — 581593 (200208 – 999999)

PNC and OE references

PNC	Part name	OE numbers
57654A	Rear floor beam No. 3	57654-YC010
58015A	Right No. 3 seat belt anchor reinforcement sub-assembly	58015-06030
58016A	Left No. 3 seat belt anchor reinforcement sub-assembly	58016-YC010
58111	front floor pan	58111-06070 · 58111-06080 · 58111-YF012
58115	Front floor reinforcement	58115-06050
58136	Front floor hole cover	58136-06010
58136A	Front floor access hole cover	58136-06020
58171	Parking brake base reinforcement	58107-06030
58189	Exhaust pipe clamp bracket reinforcement	58189-06030
58191	Front floor footrest	58191-YC020 · 58191-YC030 · 58192-YC020
58208	central floor base	58211-06100
58215C	Center floor No. 2 right reinforcement	58215-06030
58216C	Center floor No. 2 left reinforcement	58216-06030
58223A	Floor right panel reinforcement	58223-06020
58224A	Floor left panel reinforcement	58224-06020
58305	Spare tire clamp bracket sub-assembly	58351-YC010
58307	Body lower back panel sub-assembly	58307-06070
58311	rear floor pan	58311-YC071
58313	Rear floor right panel	58305-06060 · 58305-06070
58314	rear floor left panel	58314-YC020
58317C	Rear floor left rear side panel extension	58317-06010
58323E	Rear bumper arm right bracket reinforcement	58323-06010 · 58323-33060
58324D	Rear bumper arm left bracket reinforcement	58324-06010 · 58324-33040
58325E	Rear floor access hole cover	58325-YC020
58336B	Rear floor pan reinforcement	58336-06030 · 58336-33010
58337D	Rear floor bottom left reinforcement	58337-06010 · 58337-33020
58369A	No. 3 fuel pipe bracket	58369-YB010
58369B	No. 3 fuel pipe bracket	58369-YB010
58385H	Rear bumper cover No. 1 bracket	58385-06010 · 58385-33020
58621F	Center console silencer No. 1	58621-YC020
