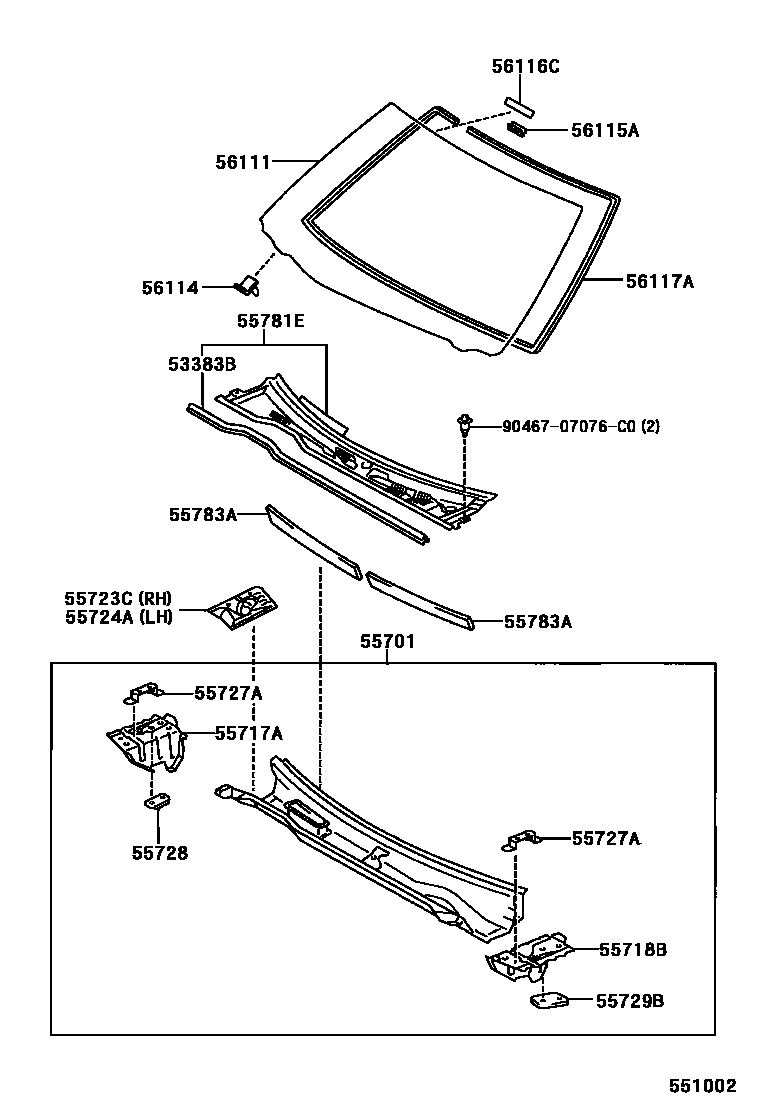

Toyota CAMRY 前围板和挡风玻璃 — Figure 5503
Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-YC030 · 53383-YC040 |
| 55701 | Front apron sub-assembly | 55700-06140 · 55700-06150 · 55700-06160 |
| 55717A | Upper right inner panel of cowl | 55717-33031 |
| 55718B | Upper left inner panel of front wall | 55718-33030 |
| 55723C | Right front wall upper side reinforcement | 55723-06040 |
| 55724A | Left front wall upper side reinforcement | 55724-06040 |
| 55727A | Front panel reinforcement fixings | 55727-06020 · 55727-33030 |
| 55728 | Engine cover right block reinforcement | 55728-YC010 |
| 55729B | Engine cover left block reinforcement | 55729-06020 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-YC010 · 55708-YC020 |
| 55783A | Front cowl upper cover silencer pad | 55783-YC020 |
| 56111 | windshield | 56101-YC070 · 56101-YC080 · 56101-YC090 |
| 56114 | windshield stopper | 56114-22050 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-47010 |
