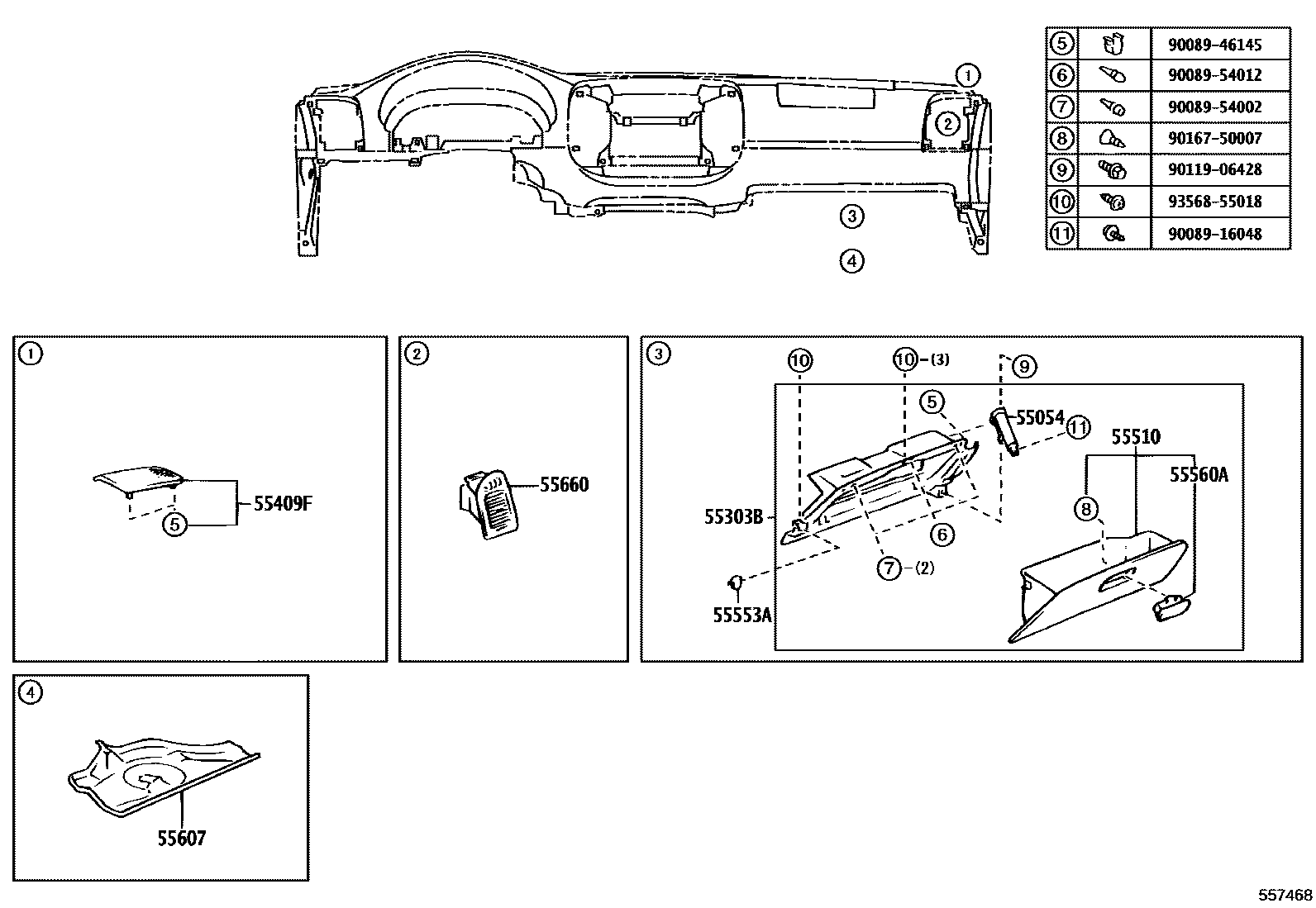

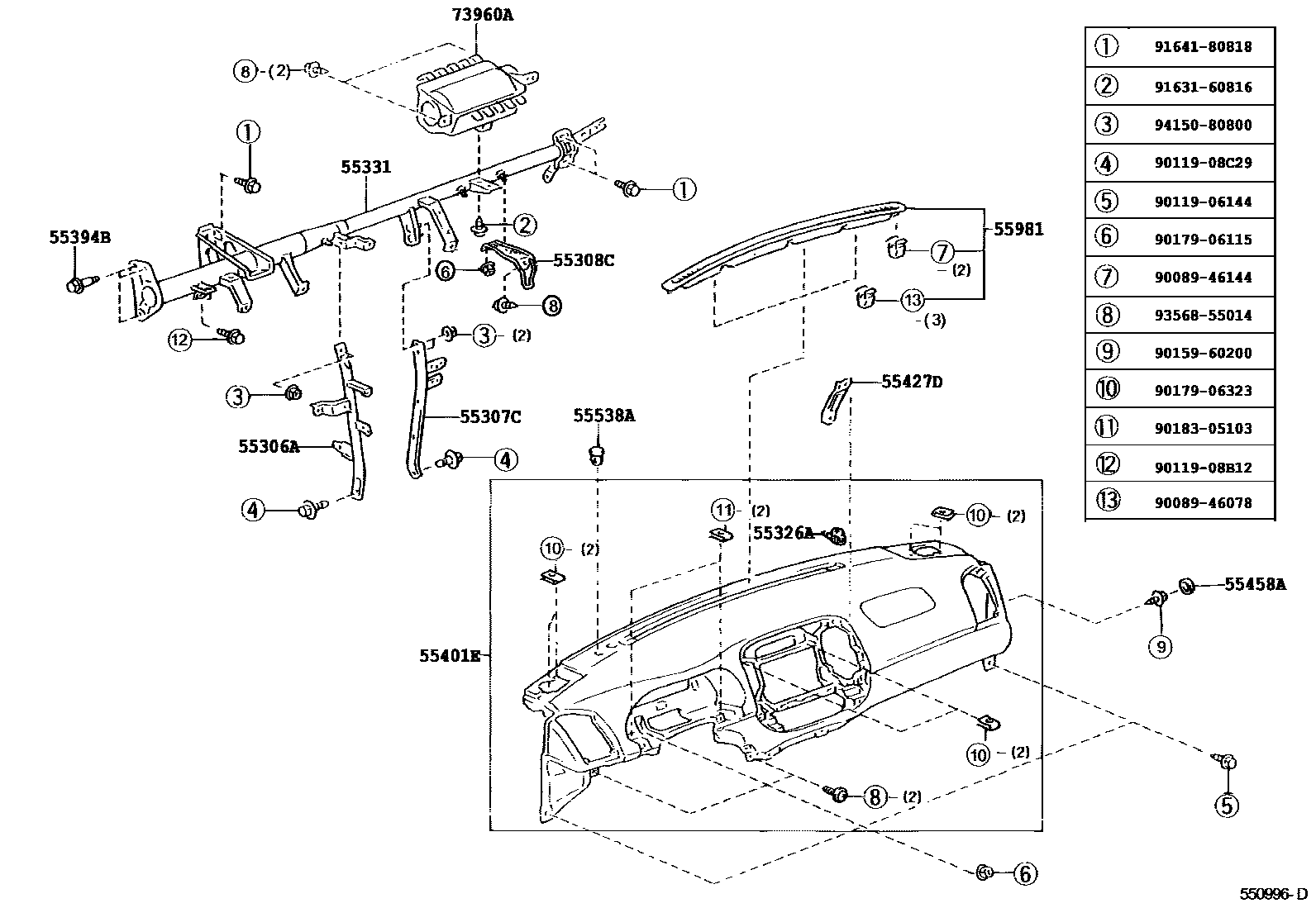

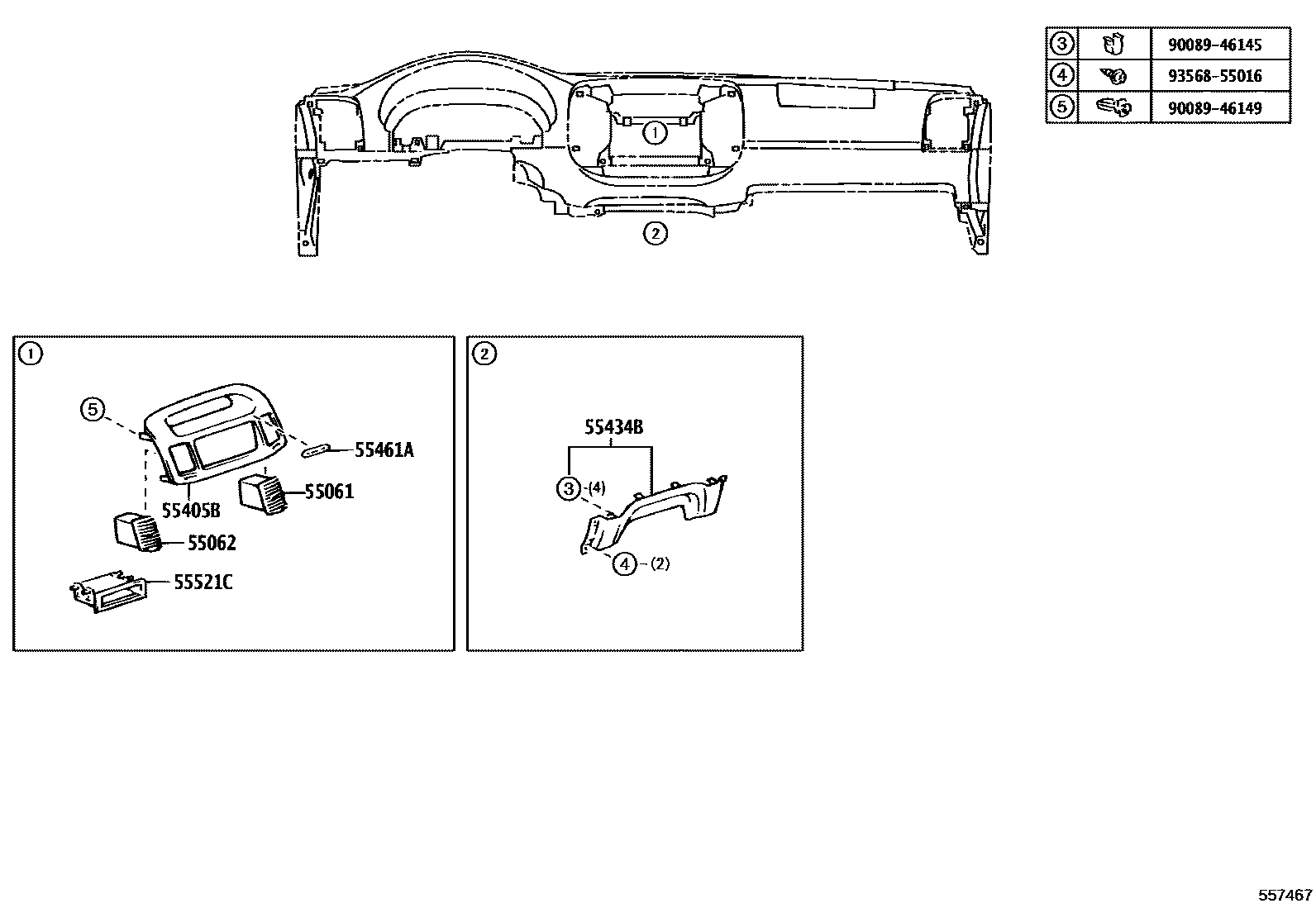

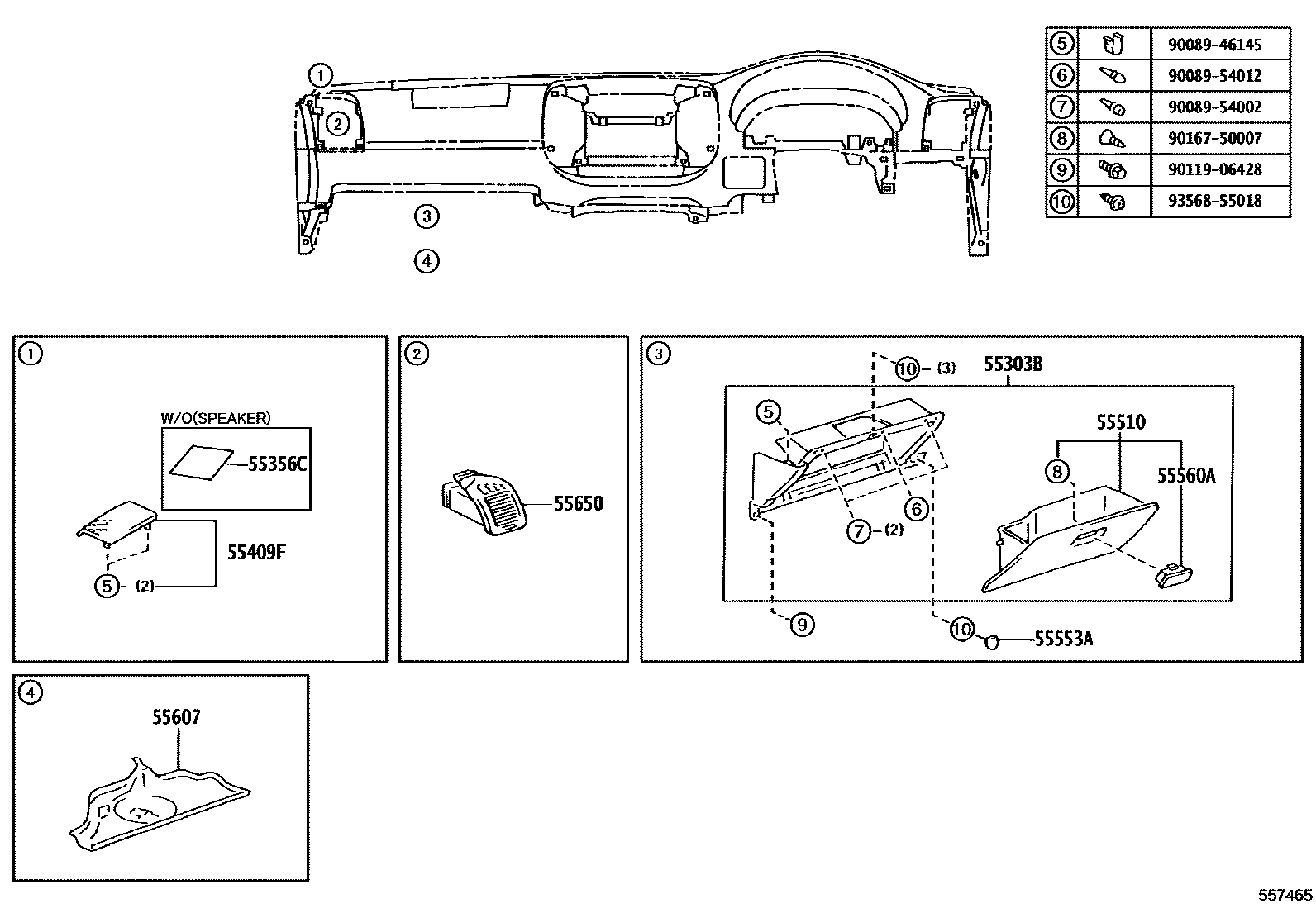

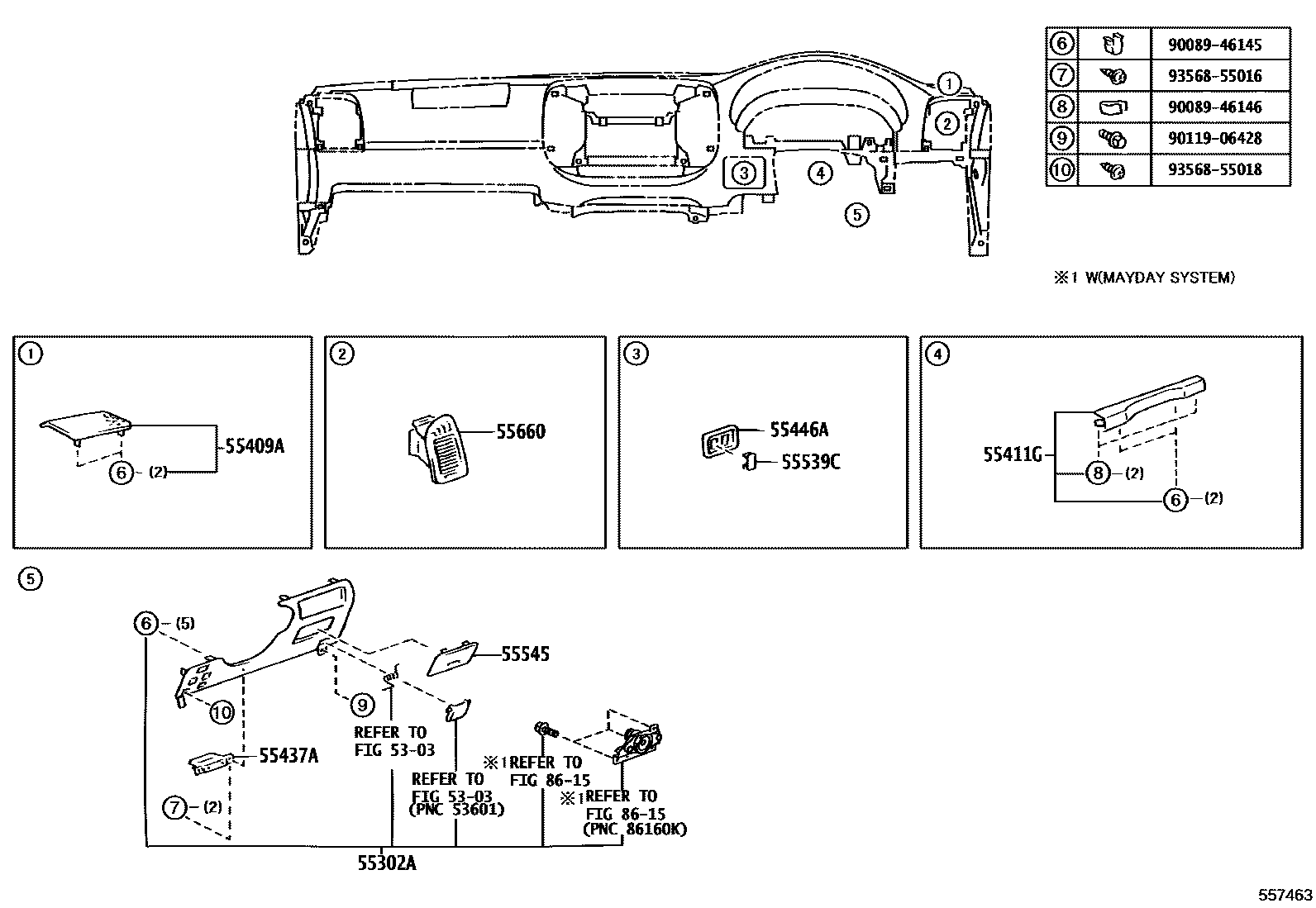

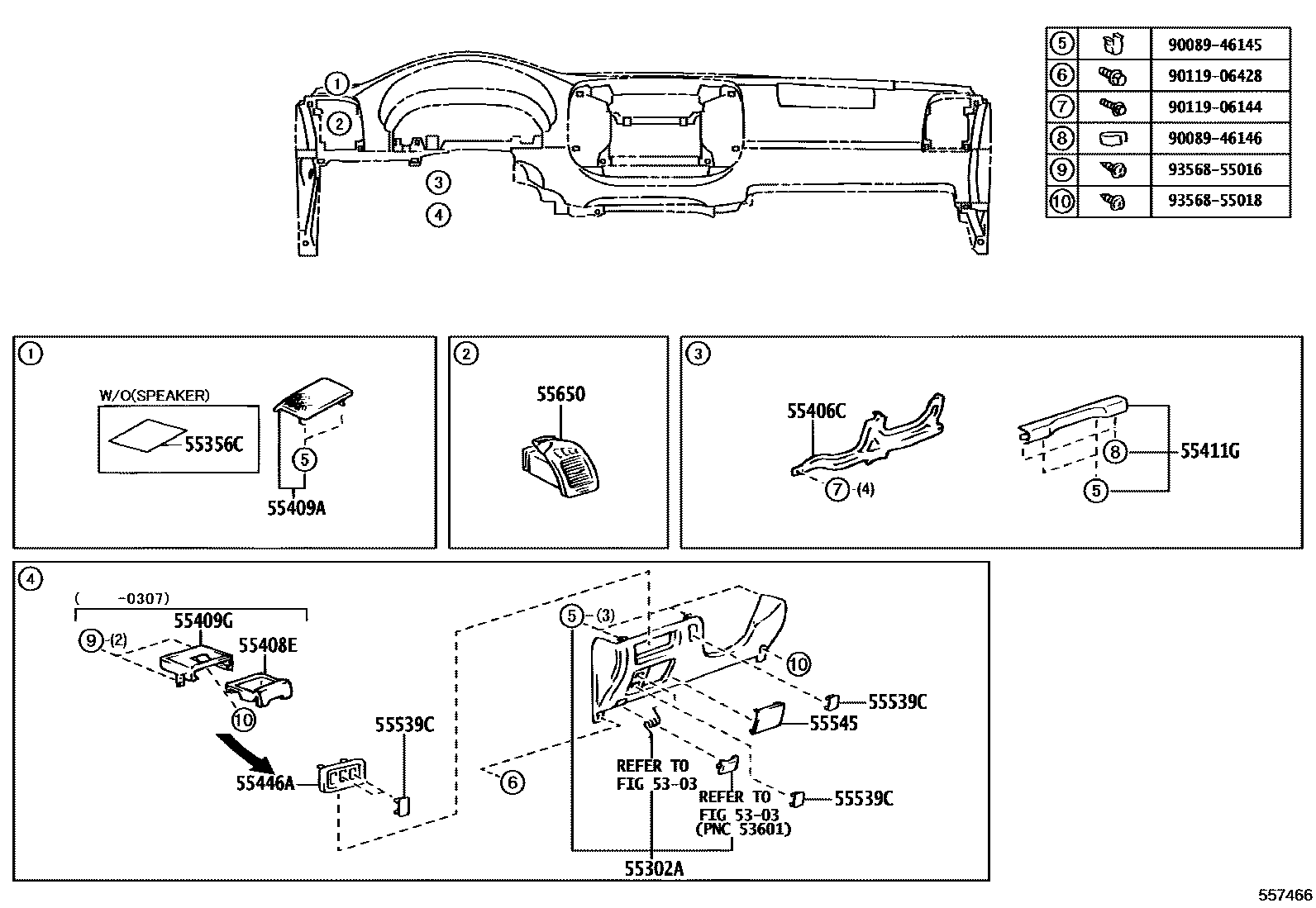

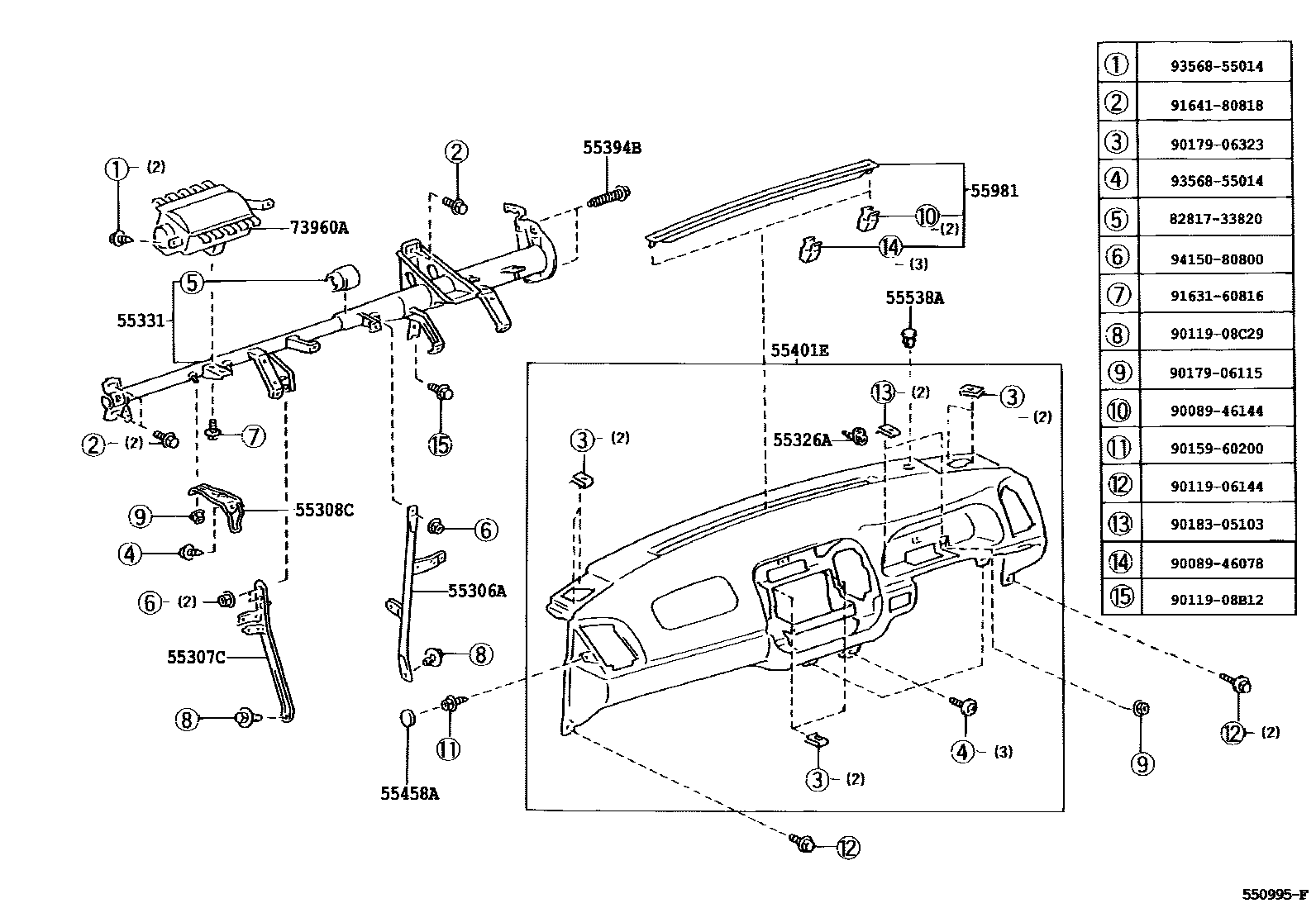

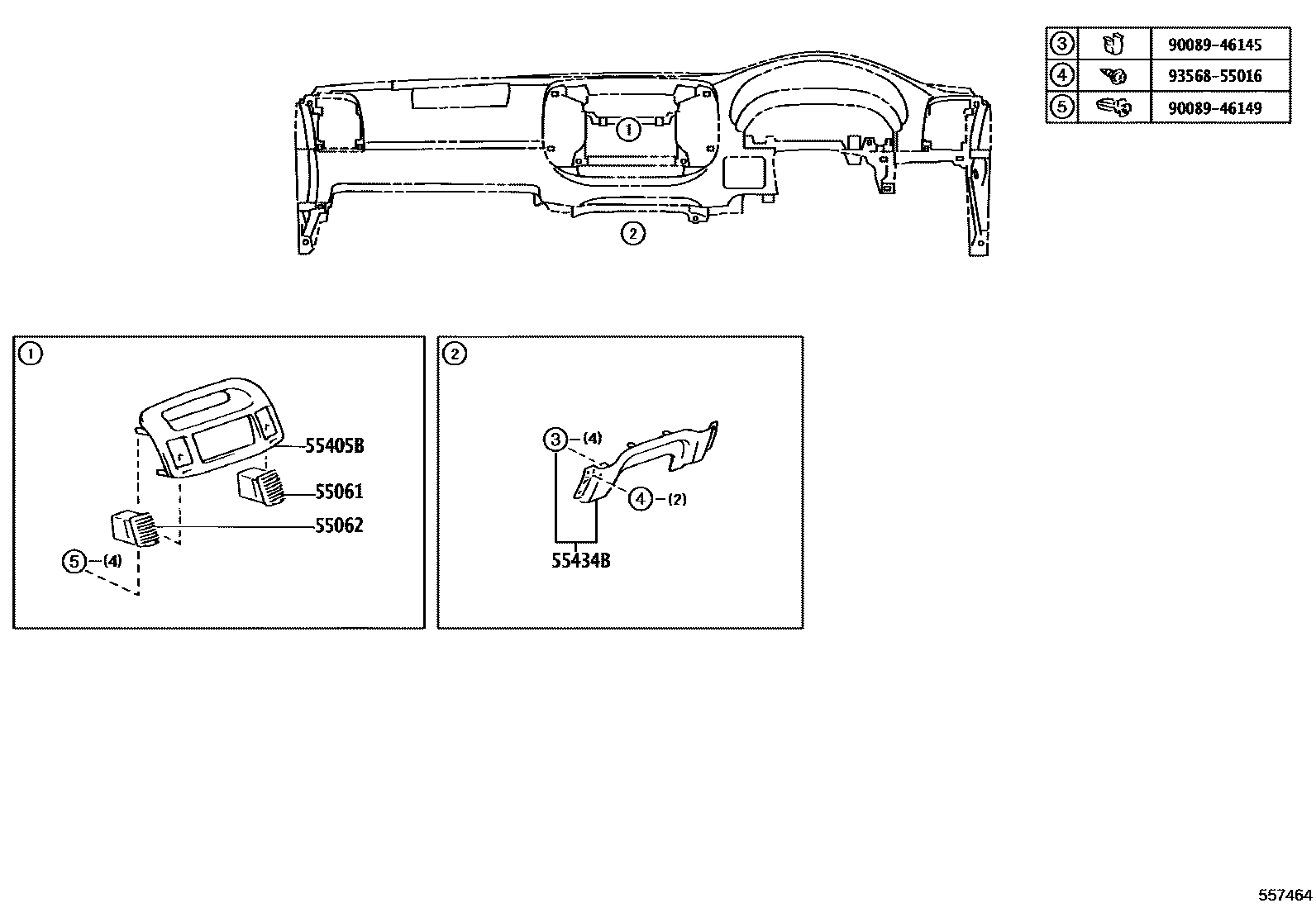

Toyota CAMRY 仪表板和手套箱 — Figure 5501
Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 8 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-33060 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-YC020 · 55306-YC030 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-YC040 · 55307-YC050 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-YC030 · 55308-YC040 |
| 55326A | Dashboard No. 1 stay | 55328-YC020 |
| 55331 | Dashboard reinforcement | 55330-YC080 · 55330-YC090 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-YC020 |
| 55394B | Dashboard bolts | 55394-33010 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55412-YC090 · 55412-YC100 |
| 55406C | Instrument panel lower left insert sub-assembly | 55406-33060 |
| 55409G | Coin box fixing part sub-assembly | 55409-33020 |
| 55427D | Instrument panel No. 1 decorative panel lower fixing part | 55427-YC030 |
| 55437A | Instrument panel No. 1 decorative panel fixings | 55437-YC010 |
| 55461A | Dashboard trim | 55411-YC060 |
| 55521C | stereo system hole cover | 55521-YC010 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-YC040 · 55607-YC050 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-06070 |
