Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304

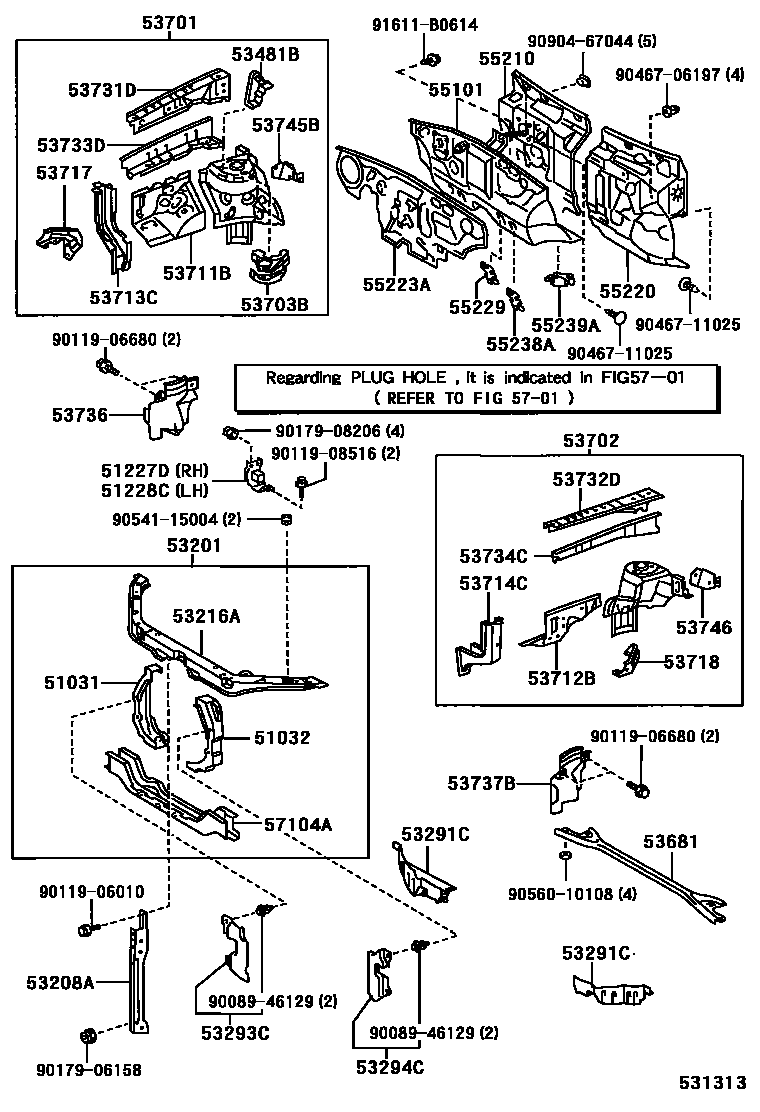

Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51031 | Front cross member right corner plate sub-assembly | 51031-06020 |
| 51032 | Front cross member left side corner plate sub-assembly | 51032-06020 |
| 51227D | Right front suspension cross member shock absorber counterweight | 51227-33020 |
| 51228C | front suspension cross member plate | 51228-33010 |
| 53201 | Radiator bracket sub-assembly | 53201-06900 |
| 53208A | Engine cover lock bracket sub-assembly | 53215-06041 |
| 53216A | Radiator upper bracket | 53216-06050 |
| 53291C | Radiator bracket to frame seal | 53291-YC010 · 53292-YC020 |
| 53293C | Radiator right baffle | 53293-YC020 |
| 53294C | Radiator left baffle | 53294-YC030 |
| 53481B | Engine cover right support rod bracket | 53481-06020 |
| 53681 | Front suspension center upper bracket | 53681-33040 |
| 53701 | Right front fender fender sub-assembly | 53701-06080 |
| 53702 | Left front fender fender sub-assembly | 53702-06070 |
| 53703B | Right fender fender fixing part sub-assembly | 53703-33010 |
| 53711B | Right front fender front fender | 53711-06060 |
| 53712B | Left front fender front fender | 53712-06030 |
| 53713C | Right front fender fender front extension | 53713-06020 |
| 53714C | Left front fender fender front extension | 53714-06020 |
| 53717 | Right fender fender side panel | 53717-33040 |
| 53718 | Left fender fender side panel | 53718-33030 |
| 53731D | Right front fender to cowl side upper beam | 53731-06070 |
| 53732D | Left front fender to cowl side upper beam | 53732-06060 |
| 53733D | Right front fender to cowl side front lower beam | 53733-06030 |
| 53734C | Left front fender to cowl side front lower beam | 53734-06030 |
| 53736 | Right front fender fender seal | 53736-YC020 · 53736-YC030 |
| 53737B | Left front fender fender seal | 53737-YC010 · 53737-YC011 · 53737-YC030 |
| 53745B | Right front fender fender rear reinforcement | 53745-06020 |
| 53746 | Left front fender rear reinforcement | 53746-06020 |
| 55101 | Front apron sub-assembly | 55101-06240 · 55101-06250 · 55101-06260 · 55101-06270 · 55101-06290 · 55101-06400 |
| 55210 | Front wall insulation pad assembly | 55210-YC040 · 55210-YC050 · 55210-YC060 |
| 55220 | No. 2 insulation pad assembly for front wall panel | 55220-YC010 · 55220-YC020 |
| 55223A | Front wall outer heat insulation pad | 55223-YC020 · 55223-YC030 · 55223-YC040 |
| 55229 | No. 4 heat insulation pad for front wall | 55229-06010 |
| 55238A | Front wall heat shield No. 2 | 55238-06040 |
| 55239A | No. 3 insulation pad for front wall panel | 55239-06010 |
| 57104A | Front cross member sub-assembly | 57161-06020 |
