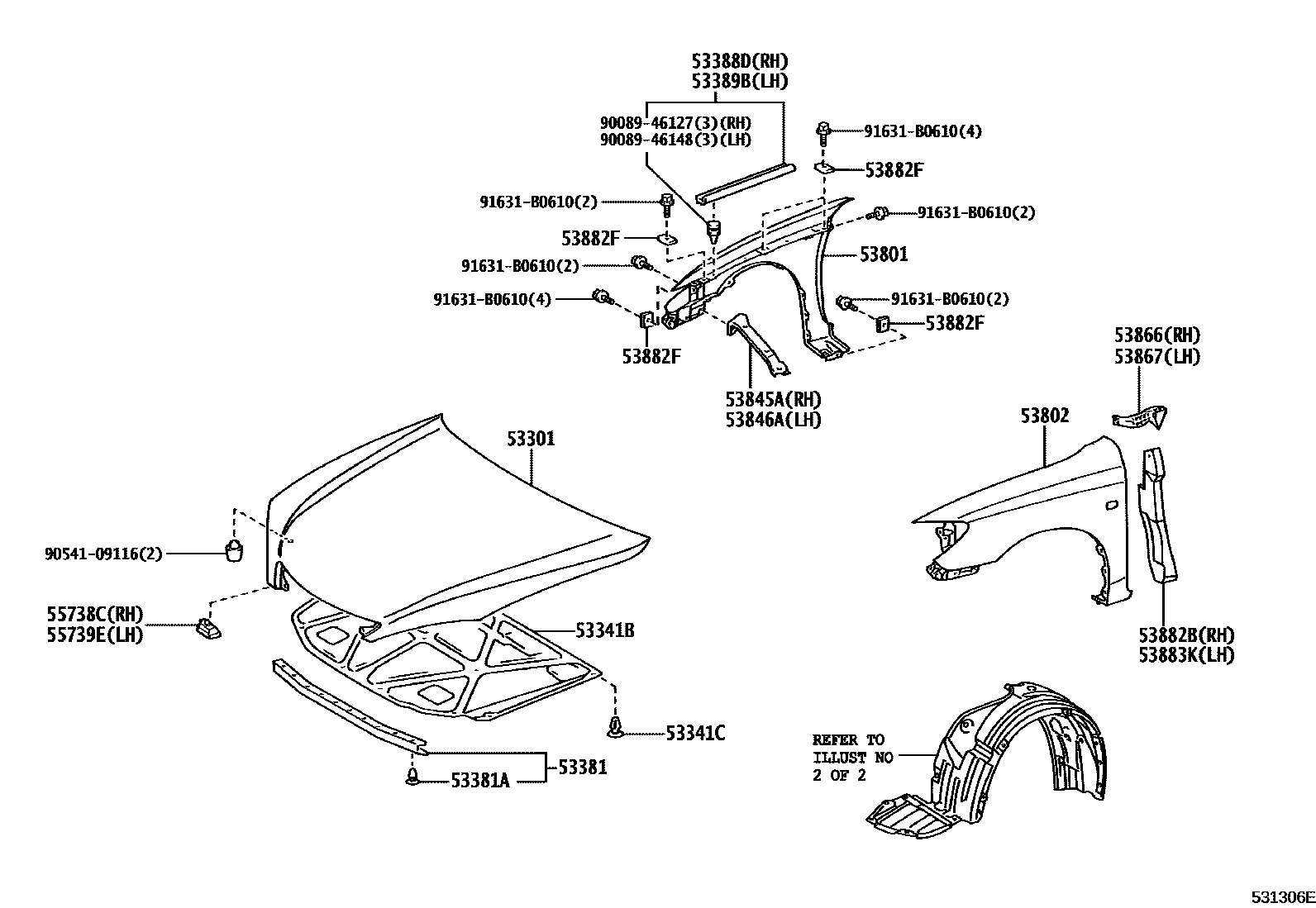

Toyota CAMRY 发动机盖和前翼子板 — Figure 5302
Toyota CAMRY EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-06050 |
| 53341B | engine cover gasket | 53341-YC040 · 53341-YC050 |
| 53341C | Clip (for engine cover gasket) | 90089-46043 |
| 53381 | Engine cover to radiator bracket seal | 53381-YC030 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90089-46127 |
| 53388D | Engine cover to right front fender seal | 53388-YC010 |
| 53389B | Engine cover to left front fender seal | 53389-YC010 |
| 53801 | Right front fender sub-assembly | 53801-06090 |
| 53802 | Left front fender sub-assembly | 53802-06090 |
| 53845A | Right front fender fender stay | 53845-06020 |
| 53846A | Left front fender fender stay | 53846-06020 |
| 53866 | Right front fender to cowl side seal | 53866-YC020 |
| 53867 | Left front fender to cowl side seal | 53867-YC020 |

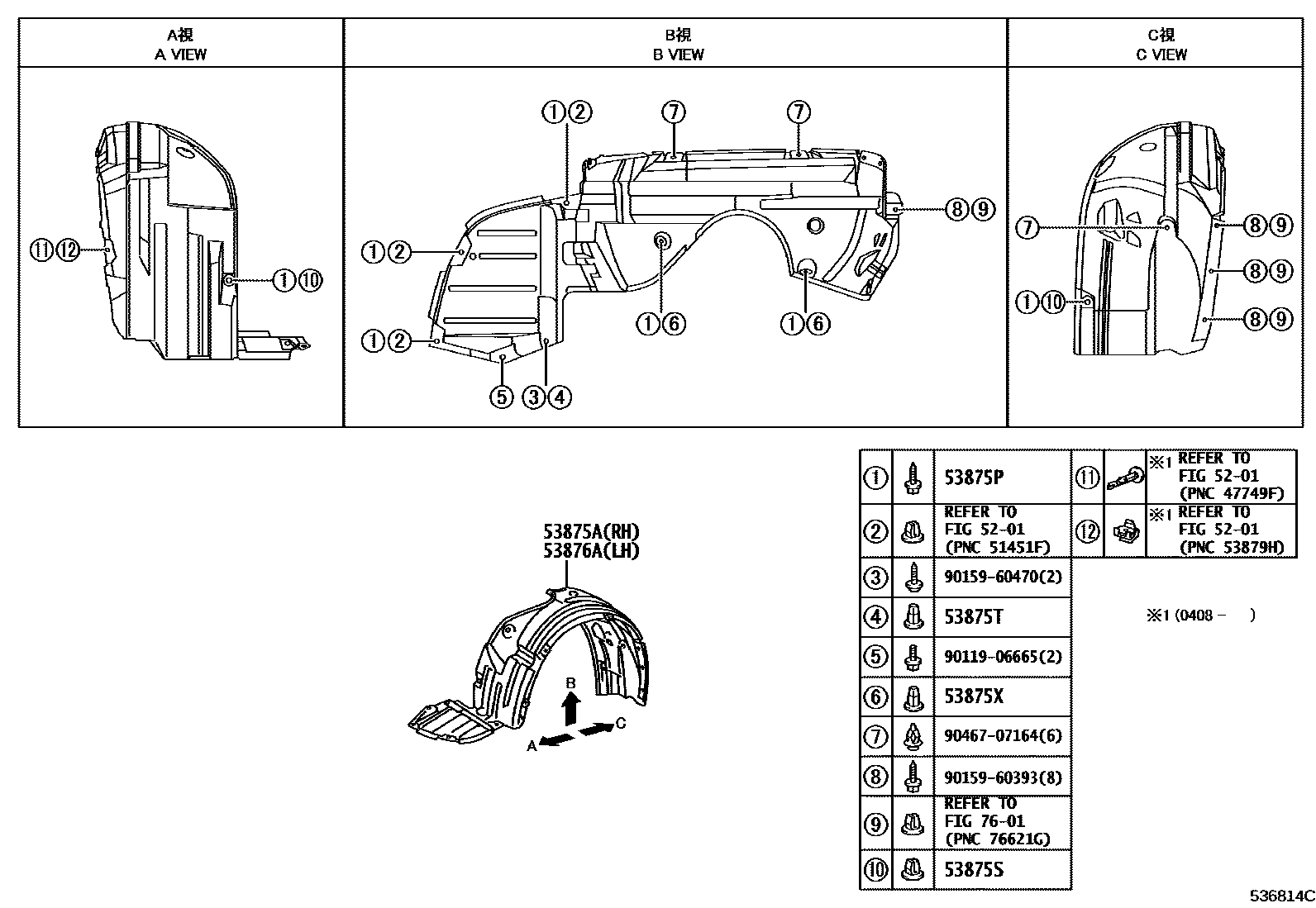

| 53875A | Right front fender lining | 53875-YC030 · 53875-YC031 |
| 53875P | Screw No. 1 | 90159-60496 |
| 53875S | Gasket No. 1 | 90189-06006 |
| 53875T | Gasket No. 2 | 90189-06006 · 90189-06065 |
| 53875X | Gasket No. 3 | 90189-06104 |
| 53876A | Left front fender lining | 53876-YC030 · 53876-YC031 |
| 53882B | Right front fender seal | 53882-YC010 |
| 53882F | front fender seal | 53882-16030 |
| 53883K | Left front fender seal | 53883-YC010 |
| 55738C | Engine cover right block | 55738-33020 |
| 55739E | Engine cover left block | 55739-33020 |
