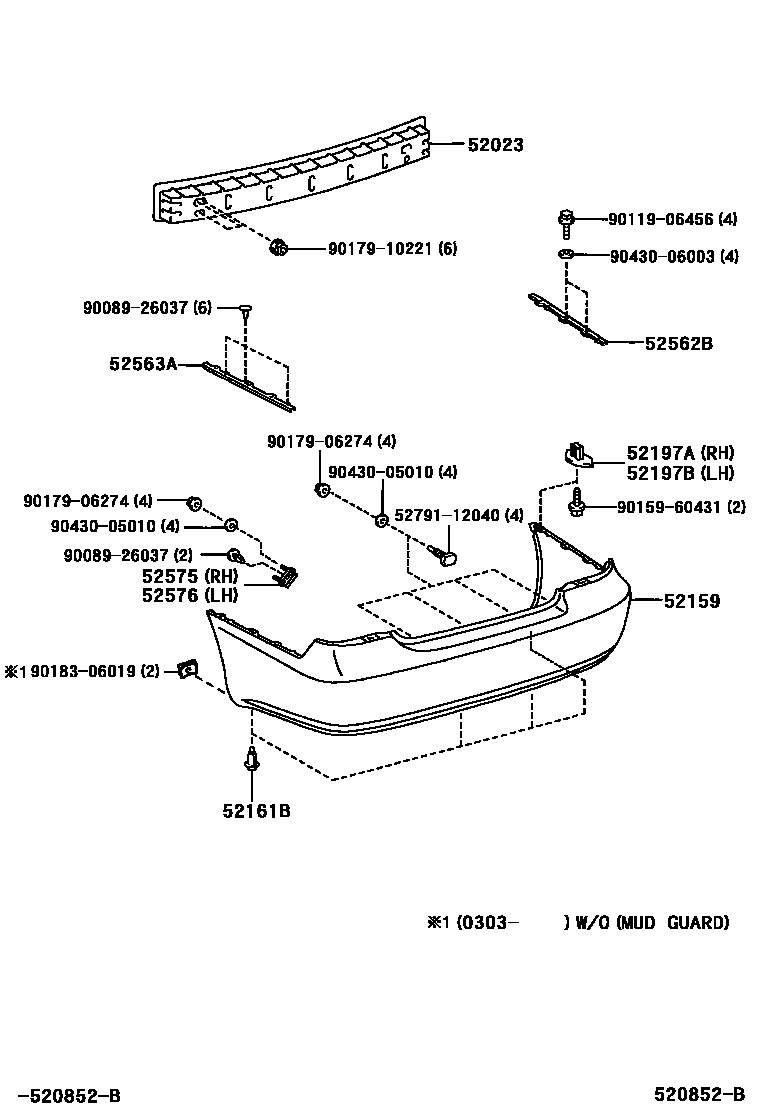

Toyota CAMRY 后保险杠及附件 — Figure 5202
Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-YC030 |
| 52159 | rear bumper cover | 52159-YC150 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52197A | Rear bumper right seal support | 52197-16020 |
| 52197B | Rear bumper left seal support | 52197-16020 |
| 52562B | Rear bumper upper right fixing bracket | 52562-33010 |
| 52563A | Rear bumper upper left fixing bracket | 52563-33010 |
| 52575 | Rear bumper right side fixing bracket | 52575-33090 |
| 52576 | Rear bumper left side fixing bracket | 52575-33090 |
