Toyota CAMRY 前保险杠及附件 — Figure 5201

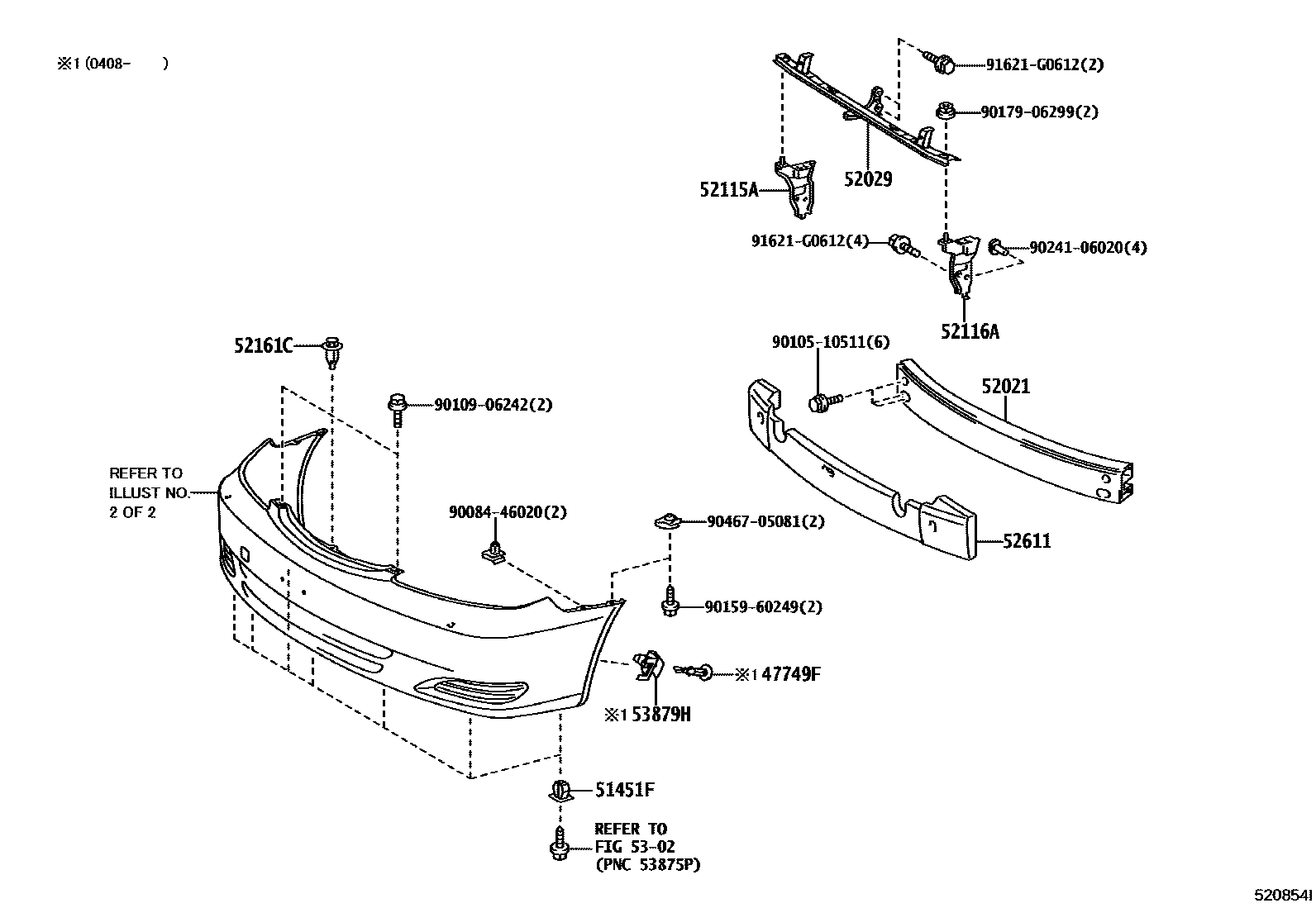

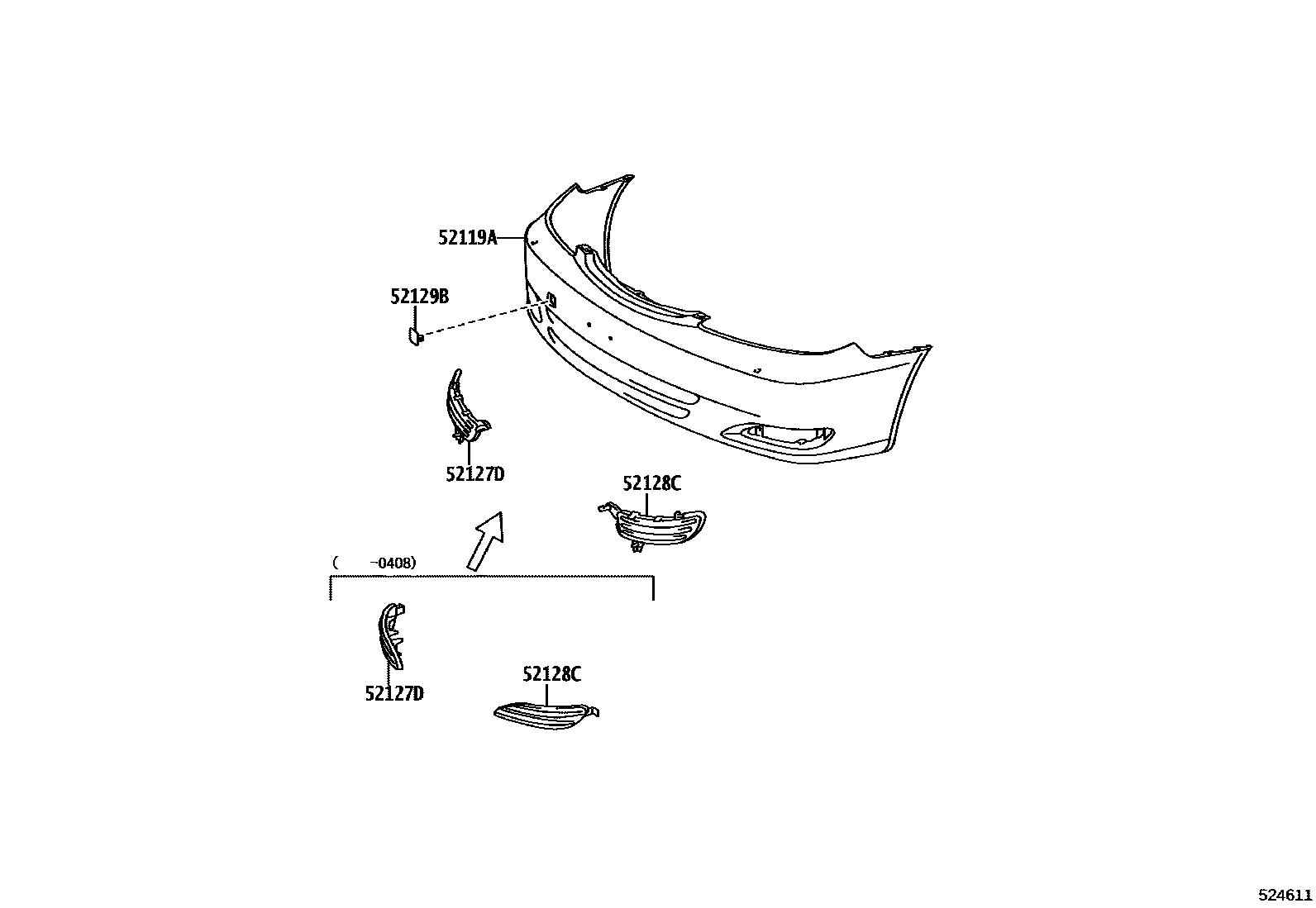

Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | pin fixing clip | 47749-58010 |
| 51451F | Gasket No. 1 | 90189-06006 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-YC020 |
| 52029 | Front bumper upper reinforcement sub-assembly | 52029-YC030 |
| 52115A | Front bumper right side bracket | 52115-YC031 |
| 52116A | Front bumper left bracket | 52116-YC011 |
| 52119A | front bumper cover | 52119-YC090 · 52119-YC100 · 52119-YC120 |
| 52127D | Front bumper right hole cover | 52127-YC020 · 52127-YC030 |
| 52128C | Front bumper left hole cover | 52128-YC020 · 52128-YC030 |
| 52129B | Front bumper lower cover | 52129-YC020 |
| 52161C | front bumper insert | 52161-16010 |
| 52611 | front bumper energy absorber | 52611-YC020 · 52611-YC030 |
| 53879H | Front fender lining fixing parts | 53879-58010 |
