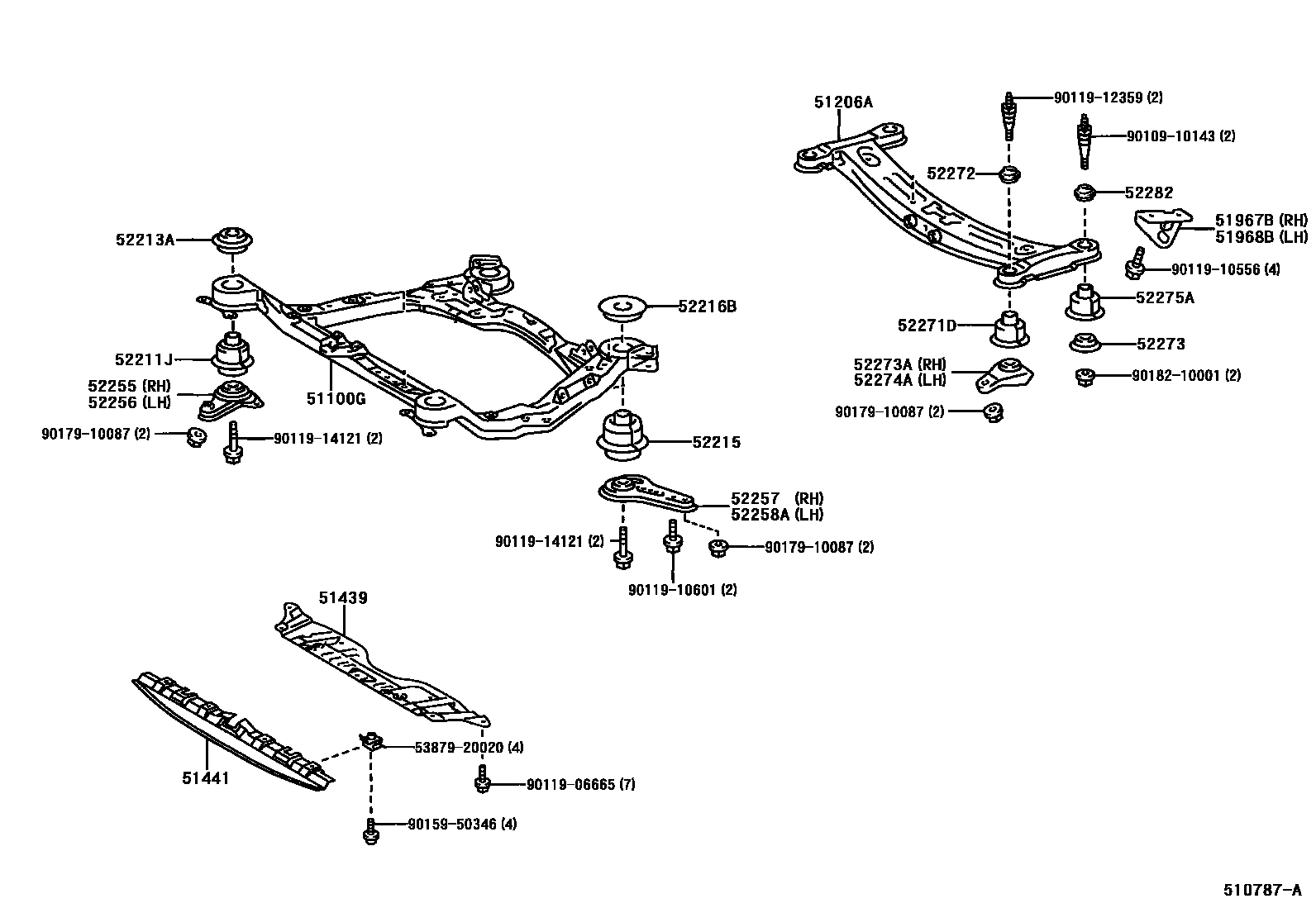

Toyota CAMRY 悬架横梁和发动机底罩 — Figure 5102
Toyota CAMRY EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51100G | Front frame assembly | 51100-YC020 · 51100-YC021 · 51100-YC030 |
| 51206A | Rear suspension cross member sub-assembly | 51206-YC020 |
| 51439 | Engine rear side baffle | 51439-YC010 |
| 51441 | No. 1 engine bottom cover | 51441-YC020 · 51441-YC030 |
| 51967B | right rear transport hook | 51967-YC020 |
| 51968B | Left rear transport hook | 51968-YC010 |
| 52211J | Front suspension cross member, front body fixed cushion | 52211-06020 · 52211-06060 |
| 52213A | Front suspension cross member, front body fixed stop | 52213-06020 · 52213-06060 |
| 52215 | Front suspension cross member Rear body fixed cushion | 52215-06020 |
| 52216B | Front suspension cross member, rear body fixed stop | 52216-06020 |
| 52255 | Right front suspension cross member front bracket | 52255-YC011 |
| 52256 | Left front suspension cross member front bracket | 52256-YC011 |
| 52257 | Right front suspension cross member rear bracket | 51023-YC010 |
| 52258A | Left front suspension cross member rear bracket | 51024-YC010 |
| 52271D | Rear suspension cross member, front body fixed cushion | 52271-06020 |
| 52272 | Rear suspension cross member upper block | 52272-06020 |
| 52273 | Rear suspension cross member lower block | 52273-YC011 |
| 52273A | Rear suspension cross member right lower stop | 52203-YC011 |
| 52274A | Rear suspension cross member left lower stop | 52204-YC011 |
| 52275A | Rear suspension cross member rear body fixed cushion | 52275-06020 |
| 52282 | Differential support beam upper stop | 52282-06020 |
