Toyota CAMRY Rear Spring & Shock Absorber — Figure 4804

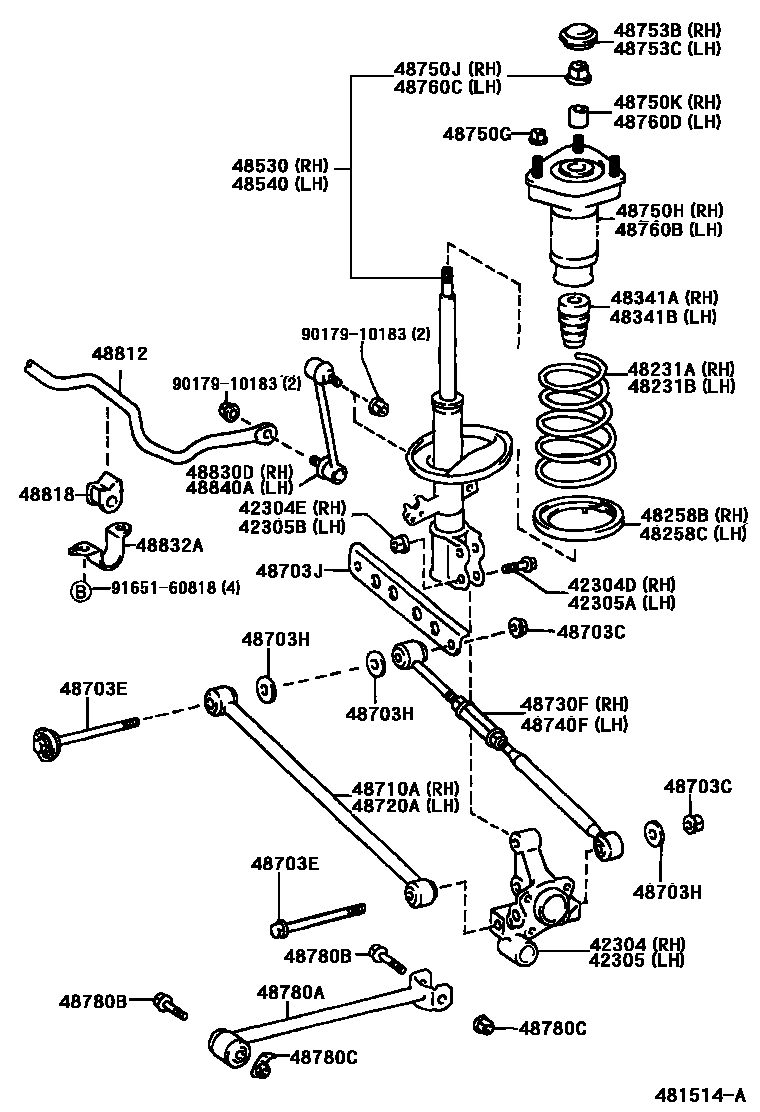

Toyota CAMRY EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42304 | Rear axle right bracket sub-assembly | 42304-06030 · 42304-06040 |
| 42304D | Bolt (for rear axle right bracket) | 90901-05001 |
| 42304E | Nut (for rear axle right bracket) | 90178-15001 |
| 42305 | Rear axle left bracket sub-assembly | 42305-06030 · 42305-06040 |
| 42305A | Bolt (for left rear axle bracket) | 90901-05001 |
| 42305B | Nut (for left rear axle bracket) | 90178-15001 |
| 48231A | Right rear coil spring | 48231-06170 · 48231-06340 · 48231-06350 · 48231-06360 |
| 48231B | Left rear coil spring | 48231-06170 · 48231-06340 · 48231-06350 · 48231-06360 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-06020 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-06020 |
| 48341A | No. 1 right rear spring buffer block | 48341-32053 |
| 48341B | No. 1 left rear spring buffer block | 48341-32053 |
| 48530 | Right rear shock absorber assembly | 48530-09760 · 48530-09770 · 48530-09800 · 48530-09810 · 48530-09A70 · 48530-09G80 · 48530-39875 |
| 48540 | Left rear shock absorber assembly | 48540-09420 · 48540-09430 · 48540-09440 · 48540-09450 · 48540-09480 · 48540-09490 · 48540-09500 · 48540-09510 · 48540-09520 · 48540-09630 · 48540-39435 |
| 48703C | Nut (for rear suspension arm) | 90179-14019 |
| 48703E | Bolts (for rear suspension arms) | 90901-09001 · 90901-19001 |
| 48703H | Washer No. 1 (for rear suspension arm) | 90201-14017 |
| 48703J | Washer No. 2 (for rear suspension arm) | 48715-06020 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-06030 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-06030 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-06030 |
| 48740F | Left rear suspension No. 2 arm assembly | 48740-06020 |
| 48750G | Nut (for rear suspension mount) | 90178-08007 |
| 48750H | Right rear suspension support assembly | 48750-06080 |
| 48750J | Nut (for rear mount to right rear shock absorber) | 94182-11400 |
| 48750K | Collar (for rear mount to right rear shock absorber) | 90387-15027 |
| 48753B | Right rear suspension support cover No. 1 | 48753-06020 |
| 48753C | Left rear suspension support cover No. 1 | 48753-06020 |
| 48760B | Left rear suspension support assembly | 48760-06080 |
| 48760C | Nut (for rear mount to left rear shock absorber) | 94182-11400 |
| 48760D | Collar (for rear mount to left rear shock absorber) | 90387-15027 |
| 48780A | Rear support rod assembly | 48780-YC010 |
| 48780B | Bolts (for support rods) | 90119-12131 |
| 48780C | Nut (for support rod) | 90179-12063 · 90179-12091 |
| 48812 | rear stabilizer bar | 48812-AA010 · 48812-YC041 · 48812-YC051 |
| 48818 | Rear stabilizer bar bushing | 48818-06100 · 48818-06110 |
| 48830D | Right rear stabilizer bar link assembly | 48830-33010 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-06040 |
| 48840A | Left rear stabilizer bar link assembly | 48830-33010 |
