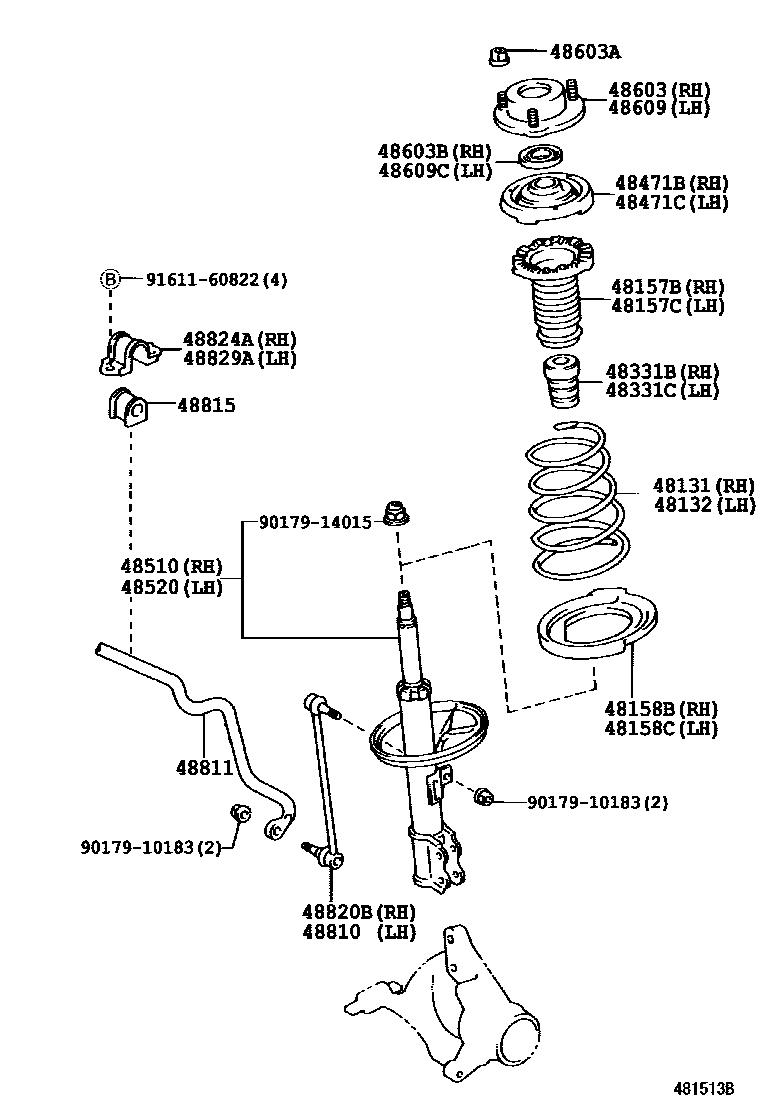

Toyota CAMRY Front Spring & Shock Absorber — Figure 4803
Toyota CAMRY EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-06450 · 48131-06460 · 48131-06490 · 48131-06590 · 48131-06600 · 48131-06640 · 48131-06680 · 48131-06690 · 48131-06820 · 48131-06840 · 48131-06850 |
| 48132 | Left front coil spring | 48131-06450 · 48131-06460 · 48131-06490 · 48131-06590 · 48131-06600 · 48131-06640 · 48131-06680 · 48131-06690 · 48131-06820 · 48131-06840 · 48131-06850 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-06070 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-06070 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-06040 · 48158-06060 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-06040 · 48158-06060 |
| 48331B | Right front spring buffer block | 48331-33020 · 48331-33021 |
| 48331C | Left front spring buffer block | 48331-33020 · 48331-33021 |
| 48471B | Front coil spring upper right seat | 48471-06020 |
| 48471C | Front coil spring upper left seat | 48471-06020 |
| 48510 | Right front shock absorber assembly | 48510-09870 · 48510-09880 · 48510-09B10 · 48510-09M20 · 48510-80080 |
| 48520 | Left front shock absorber assembly | 48520-09720 · 48520-09730 · 48520-09A40 · 48520-09E70 · 48520-39515 |
| 48603 | Right front suspension bearing sub-assembly | 48603-06040 · 48603-06041 · 48603-33050 |
| 48603A | Nut (for front suspension mount) | 90178-10008 · 90179-10095 |
| 48603B | Bearing (for right front suspension mount) | 90903-63014 |
| 48609 | Left front suspension bearing sub-assembly | 48609-06110 · 48609-06111 · 48609-33180 |
| 48609C | Bearing (for left front suspension mount) | 90903-63014 |
| 48810 | Left front stabilizer bar link assembly | 48810-33010 |
| 48811 | front stabilizer bar | 48811-06130 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-06070 |
| 48820B | Right front stabilizer bar link assembly | 48820-33020 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-06050 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-06050 |
