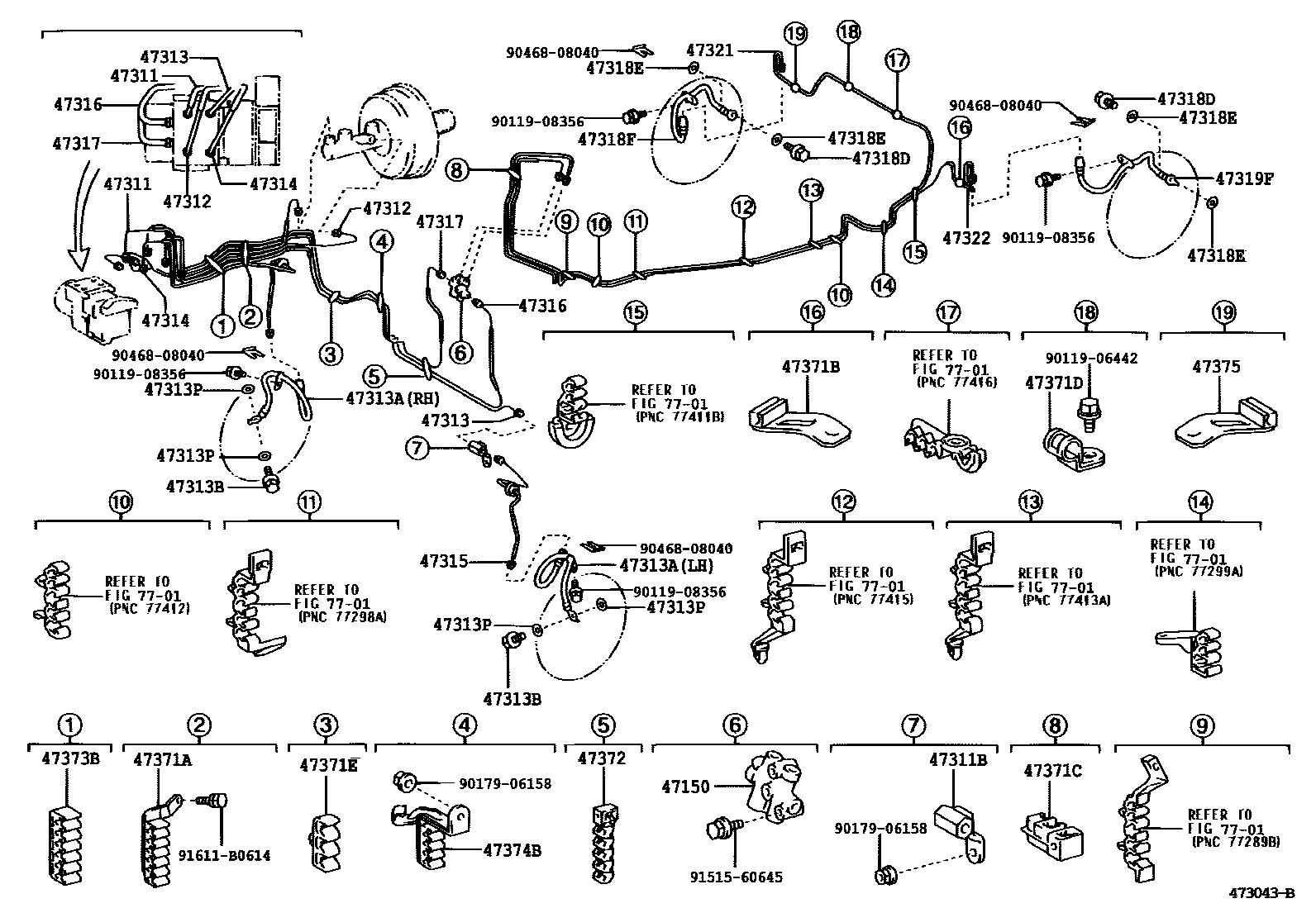

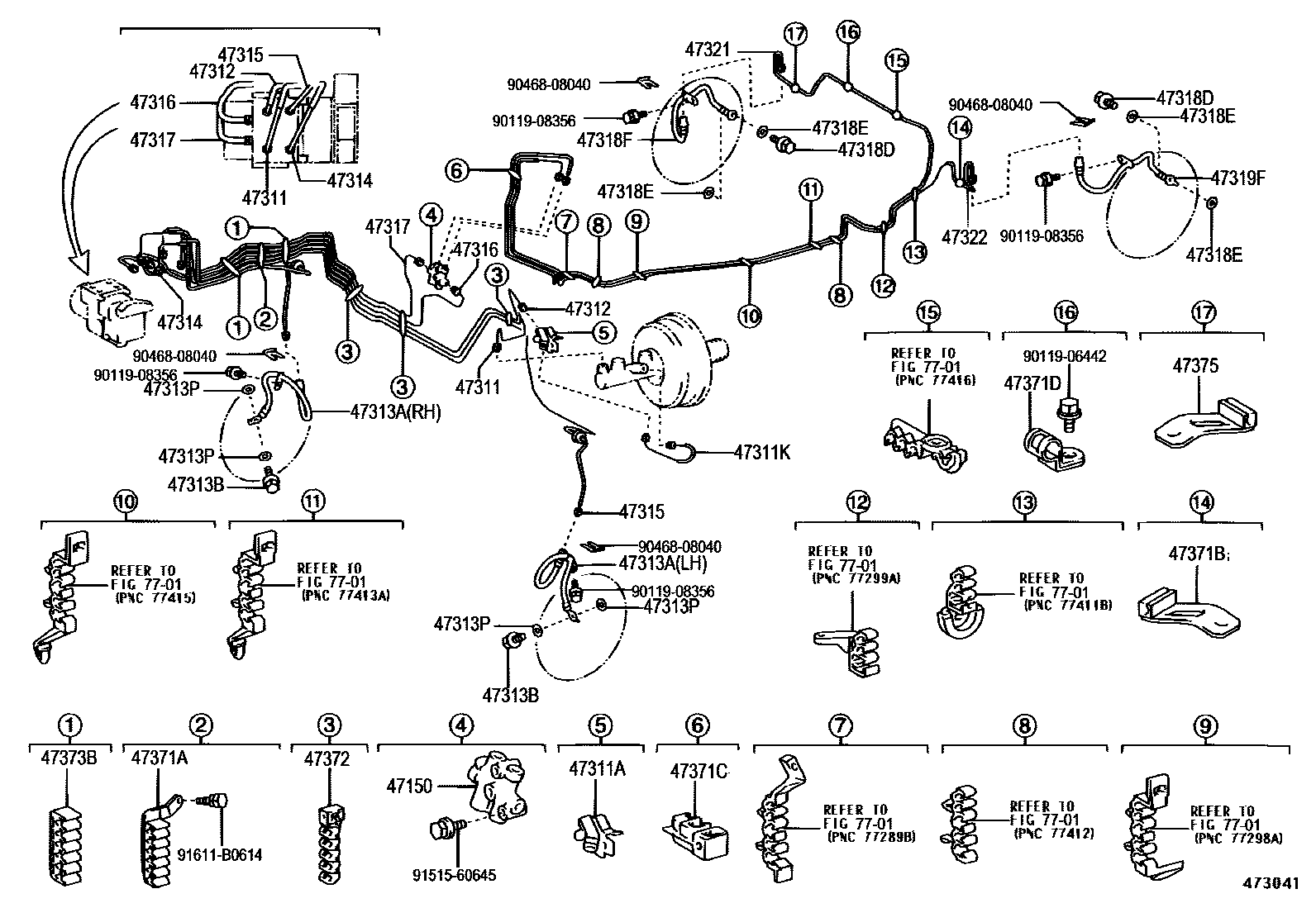

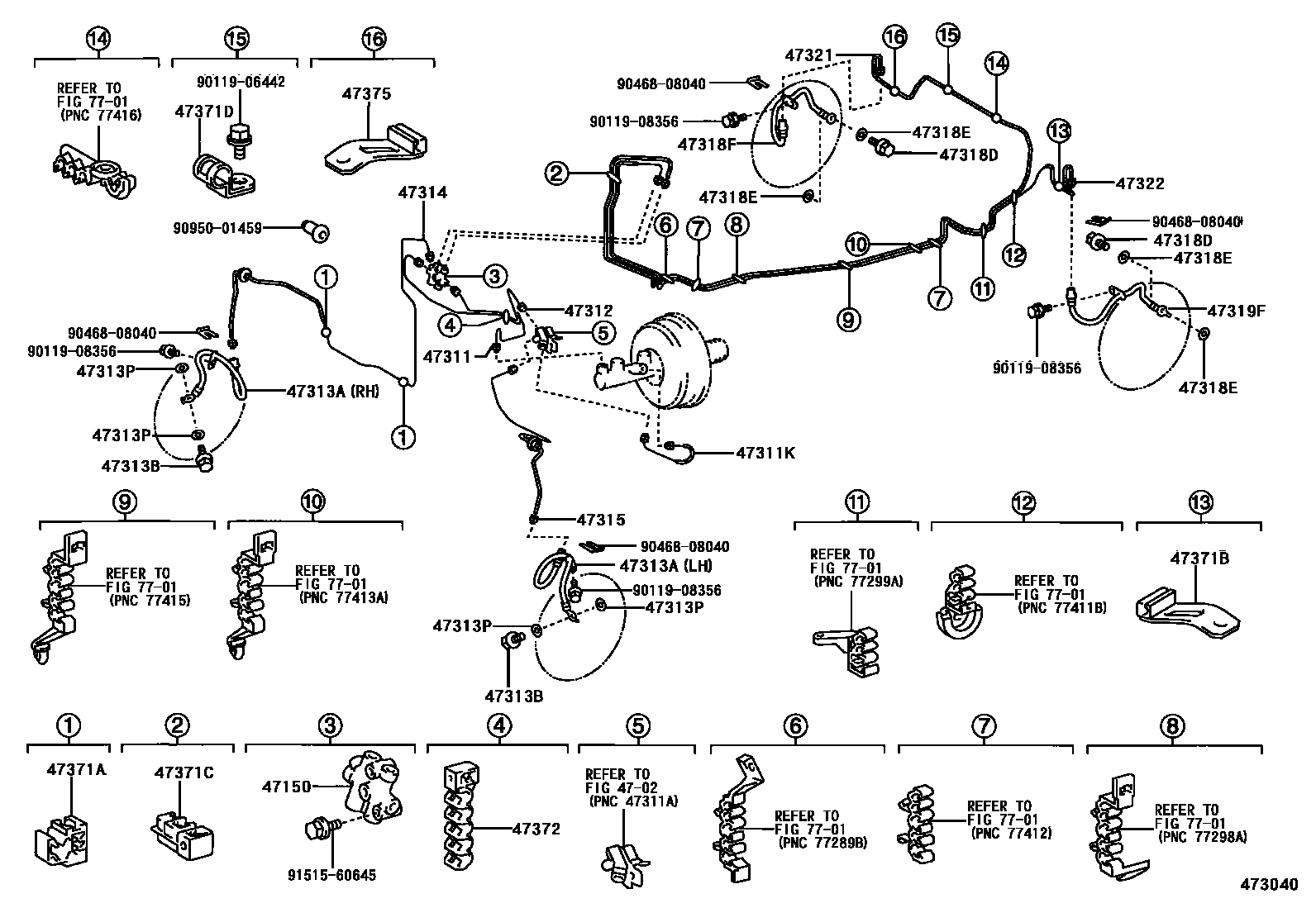

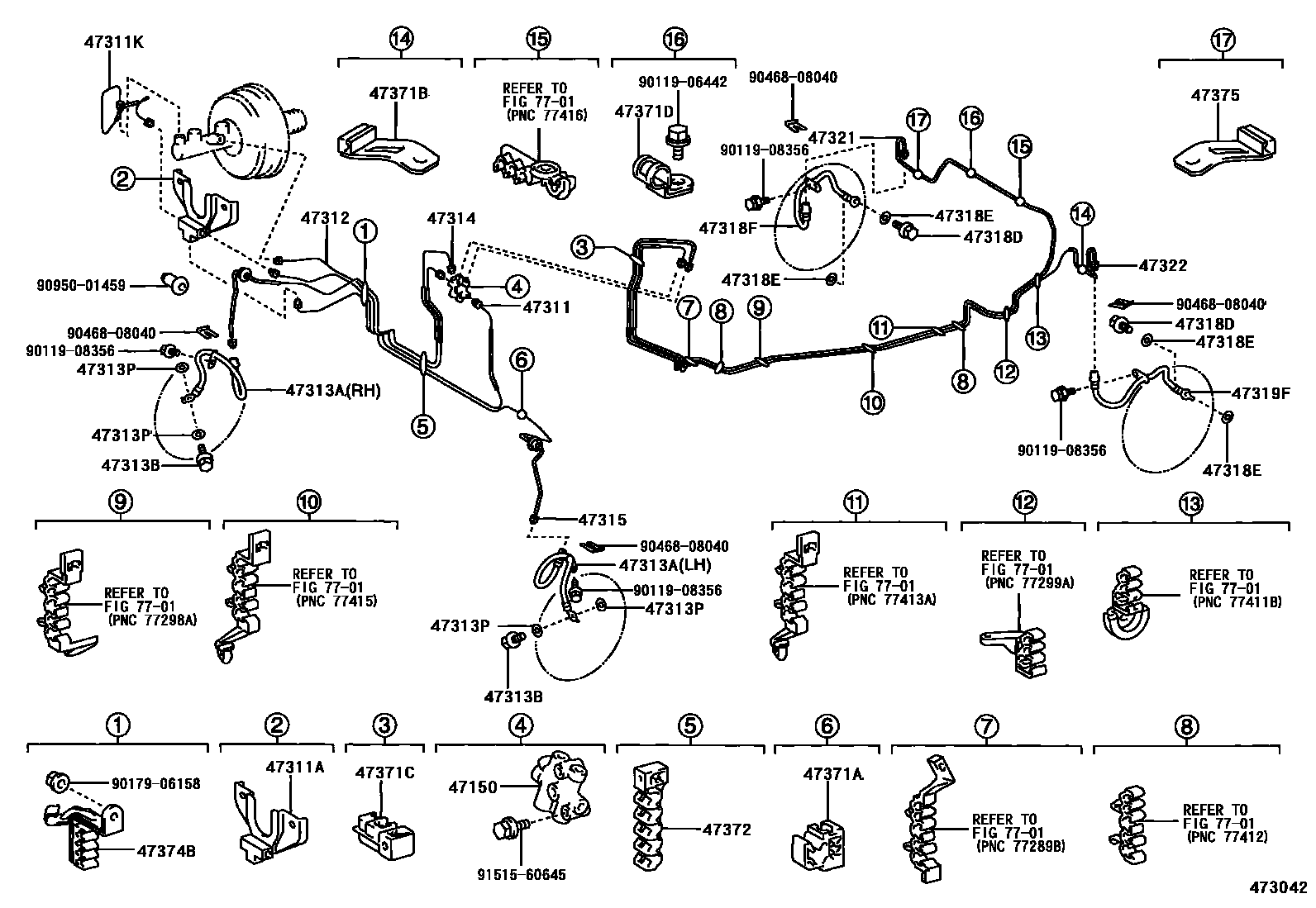

Toyota CAMRY 制动配管和卡箍 — Figure 4708
Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 5 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

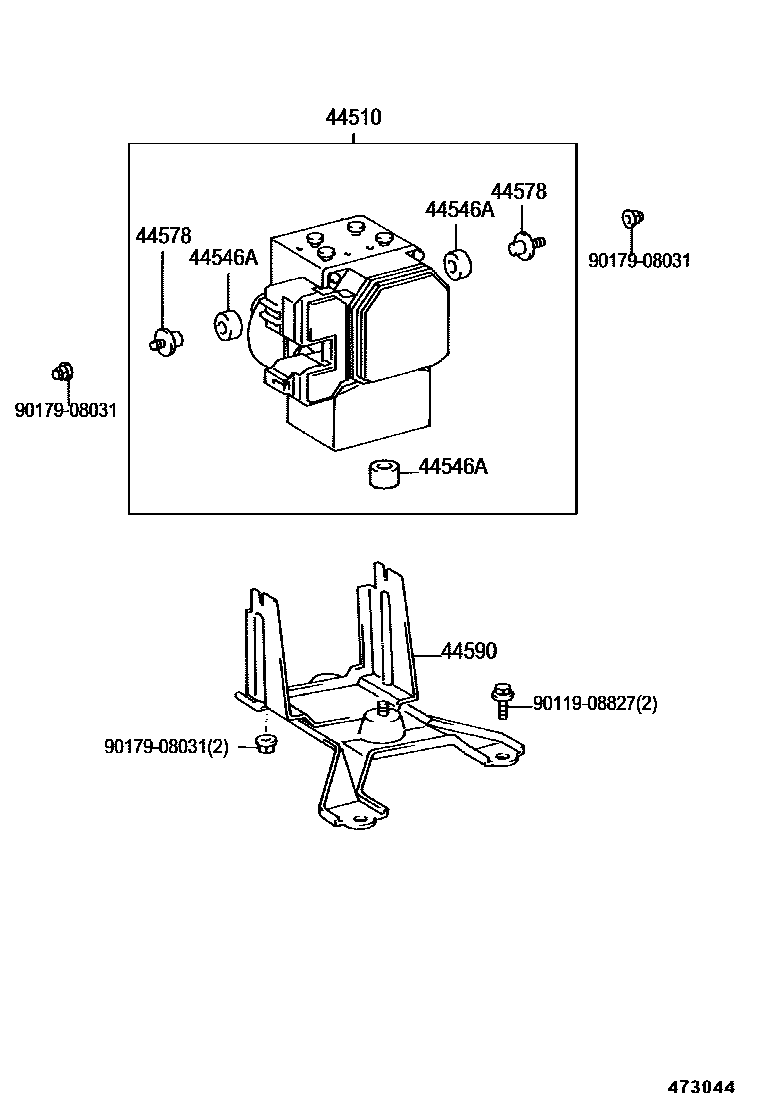

| 44510 | brake actuator assembly | 44050-06030 |
| 44546A | Brake actuator bolt cushion | 44546-05020 |
| 44578 | Brake actuator cushion bolt | 44578-05020 |
| 44590 | Brake actuator bracket assembly | 44590-33050 |
| 47150 | Proportional valve assembly | 47150-12150 · 47150-12200 · 47150-12240 · 47150-33070 · 90412-10140 |
| 47311 | No. 1 front brake pipe | 47311-YC010 · 47311-YC020 · 47311-YC030 · 47311-YC040 |
| 47311A | Pipe fitting (for front brake pipe) | 90413-10067 · 90904-12025 · 90904-13011 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10213 |
| 47311K | Pipe (brake master cylinder to pipe joint) | 47311-06110 · 47311-06120 |
| 47312 | No. 2 front brake pipe | 47312-YC060 · 47312-YC070 · 47312-YC080 · 47312-YC090 |
| 47313 | No. 3 front brake pipe | 47313-YC060 |
| 47313A | No. 1 front flexible hose | 90080-94040 · 90080-94041 · 90080-94167 · 90080-94168 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 |
| 47313P | Gasket (for front flex hose) | 90089-43002 |
| 47314 | No. 4 front brake pipe | 47314-YC070 · 47314-YC080 · 47314-YC090 |
| 47315 | No. 5 front brake pipe | 47315-YC080 · 47315-YC090 · 47315-YC100 · 47315-YC110 |
| 47316 | No. 6 front brake pipe | 47316-YC040 · 47316-YC050 |
| 47317 | No. 7 front brake pipe | 47317-YC040 · 47317-YC050 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10015 |
| 47318E | Gasket (for rear flex hose) | 90089-43002 |
| 47318F | Right rear flexible hose | 90080-94042 · 90080-94169 |
| 47319F | Left rear flexible hose | 90080-94043 · 90080-94170 |
| 47321 | No. 1 rear brake pipe | 47321-YC030 |
| 47322 | No. 2 rear brake pipe | 47322-YC030 |
| 47371A | No. 1 brake pipe clamp | 47371-YC090 · 90949-01B45 |
| 47371B | No. 6 brake pipe clamp | 47371-YC030 |
| 47371C | No. 7 brake pipe clamp | 77299-32030 |
| 47371D | No. 8 brake pipe clamp | 90461-10755 |
| 47371E | No. 9 brake pipe clamp | 90089-46107 |
| 47372 | No. 2 brake pipe clamp | 90949-01C56 |
| 47373B | No. 3 brake pipe clamp | 90949-01C85 |
| 47374B | No. 4 brake pipe clamp | 47386-33050 |
| 47375 | No. 5 brake pipe clamp | 47371-YC020 |
