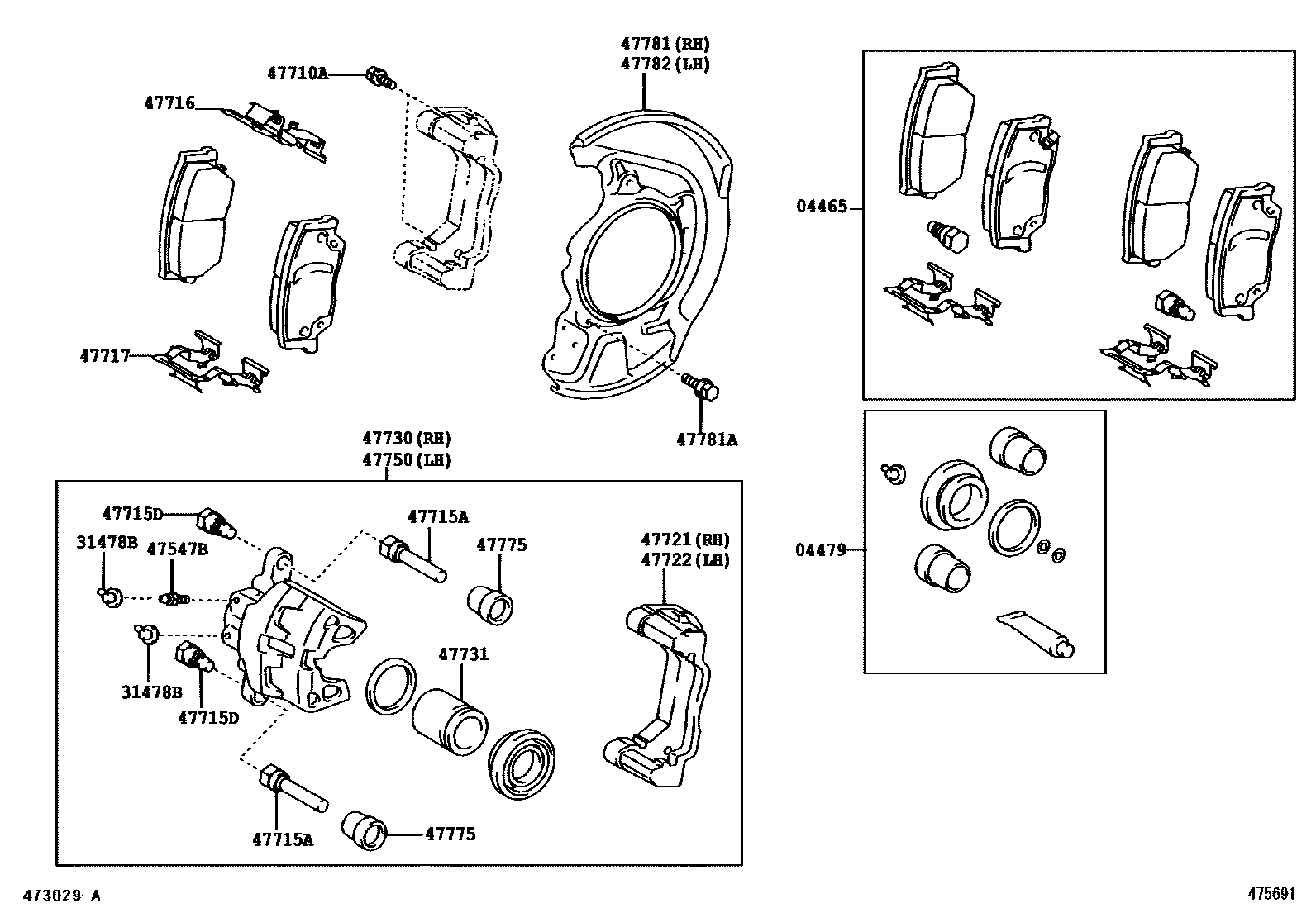

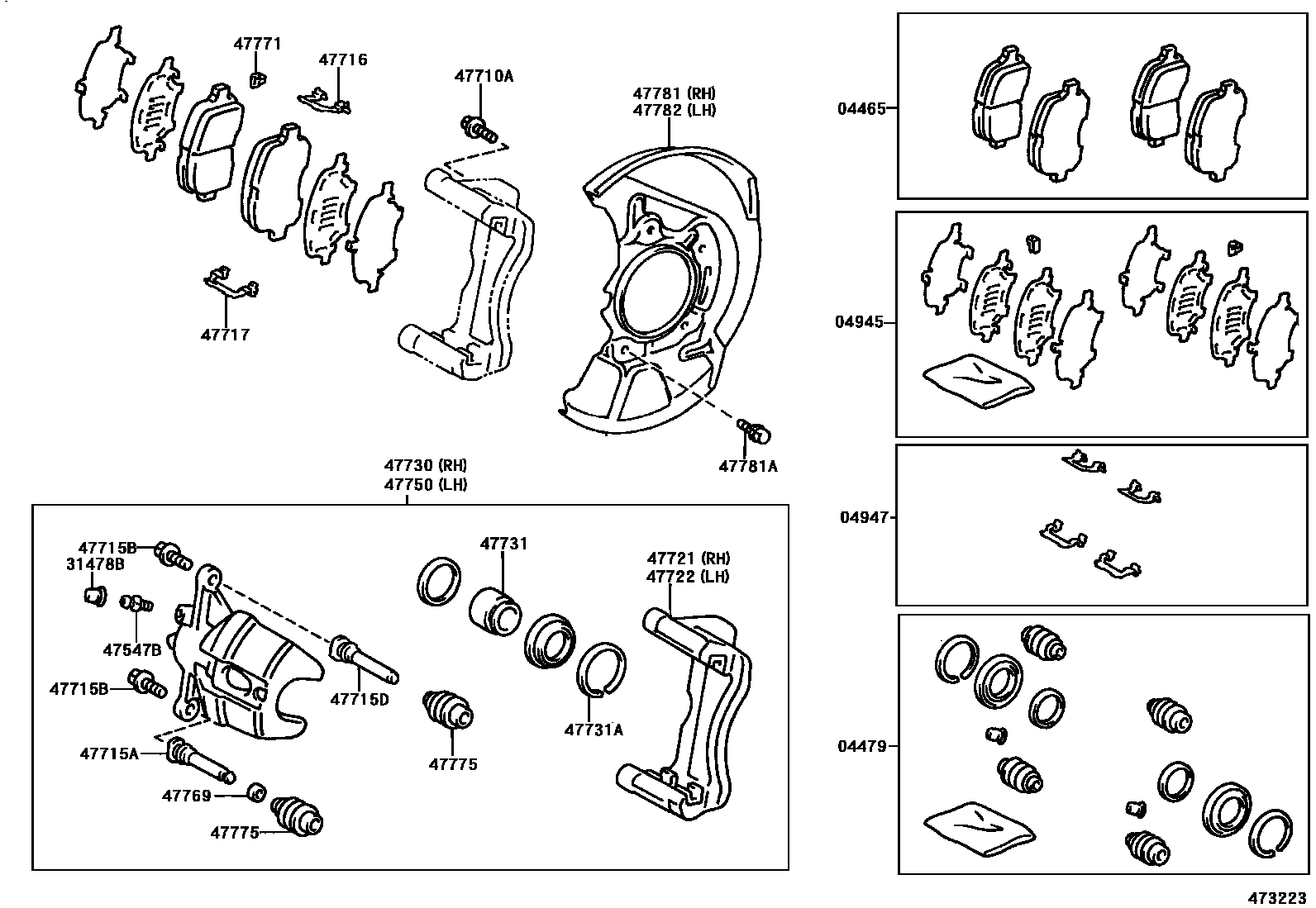

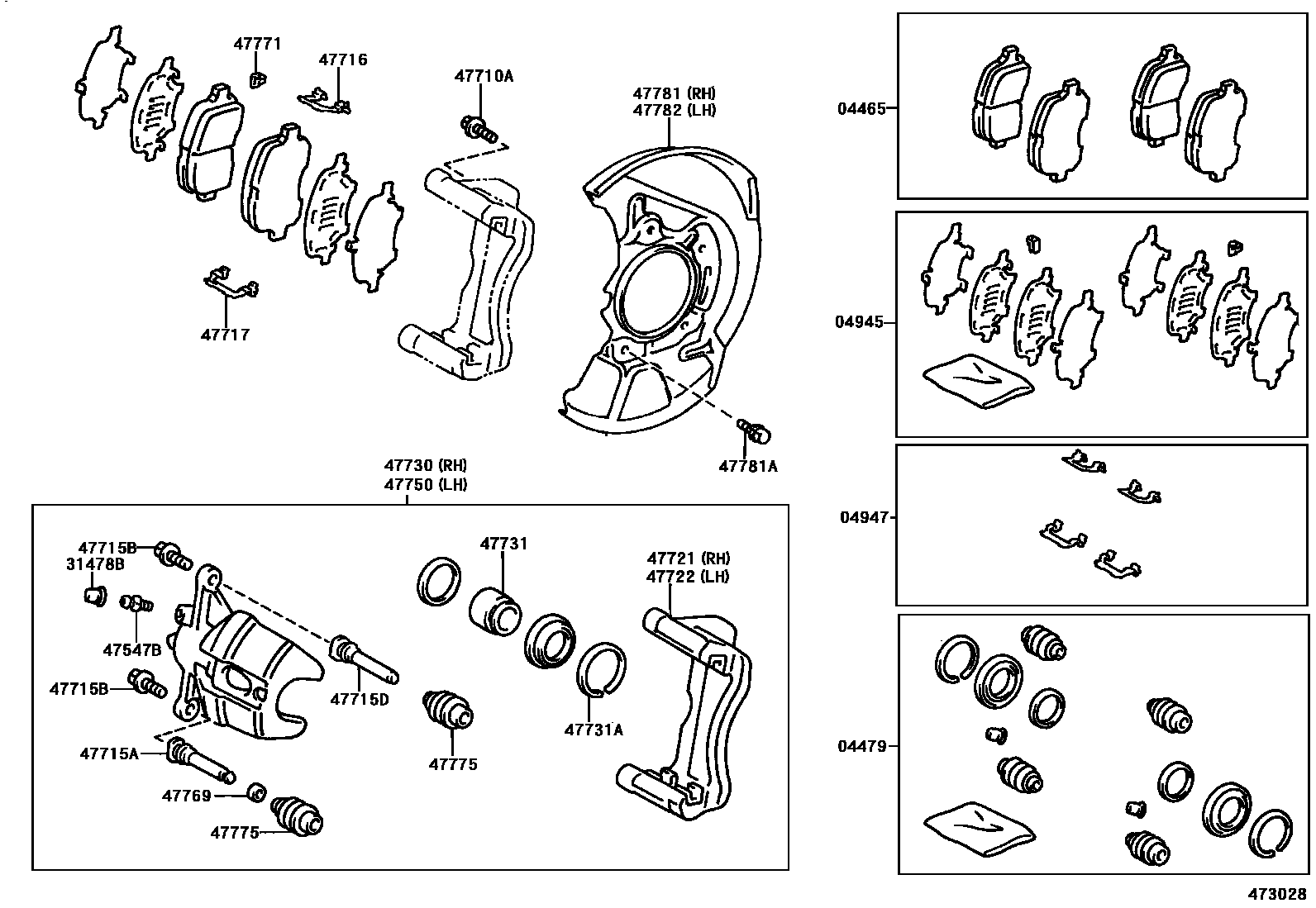

Toyota CAMRY 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota CAMRY EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-06040 · 04465-06060 · 04465-33290 |
| 04479 | Front disc brake cylinder assembly | 04478-06060 · 04479-06040 · 04479-06111 |
| 04945 | Front silencer gasket assembly | 04945-06060 |
| 04947 | Front disc brake mounting kit | 04947-06042 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-30010 · 47548-06010 |
| 47547B | Bleed plug (for front disc brake) | 47547-06020 · 47547-20010 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12208 |
| 47715A | Front disc brake cylinder sliding pin | 47715-06060 · 47715-06120 |
| 47715B | Slide bolt (for front disc brake cylinder) | 90080-10075 |
| 47715D | No. 2 front disc brake cylinder sliding pin | 47715-06070 · 47715-06130 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-06050 · 47716-06100 |
| 47717 | Pad support plate No. 2 (for front disc brake) | 47716-06050 · 47716-06100 |
| 47721 | Right front disc brake cylinder retainer | 47721-06040 · 47721-06120 |
| 47722 | Left front disc brake cylinder retainer | 47721-06040 · 47721-06120 |
| 47730 | Right front disc brake cylinder assembly | 47730-06040 · 47730-06120 |
| 47731 | Front disc brake piston | 47731-06040 · 47731-06060 |
| 47731A | retaining ring (for front disc brake piston) | 90080-52086 |
| 47750 | Left disc brake cylinder assembly | 47750-06040 · 47750-06120 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-06020 |
| 47771 | No. 1 pad wear indicator plate | 47771-06020 |
| 47775 | Bushing boot (for front disc brake) | 47775-02040 · 47775-06050 |
| 47781 | Right front disc brake dust cover | 47781-YC021 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90109-06134 |
| 47782 | Left front disc brake dust cover | 47782-YC021 |
