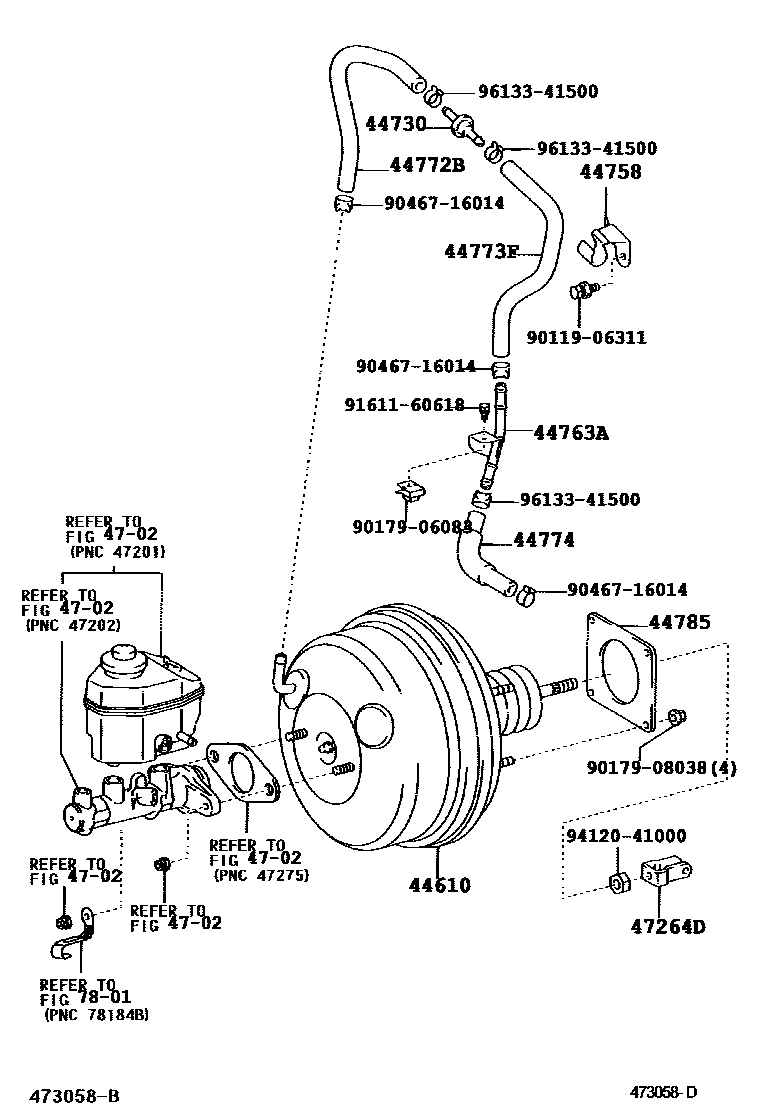

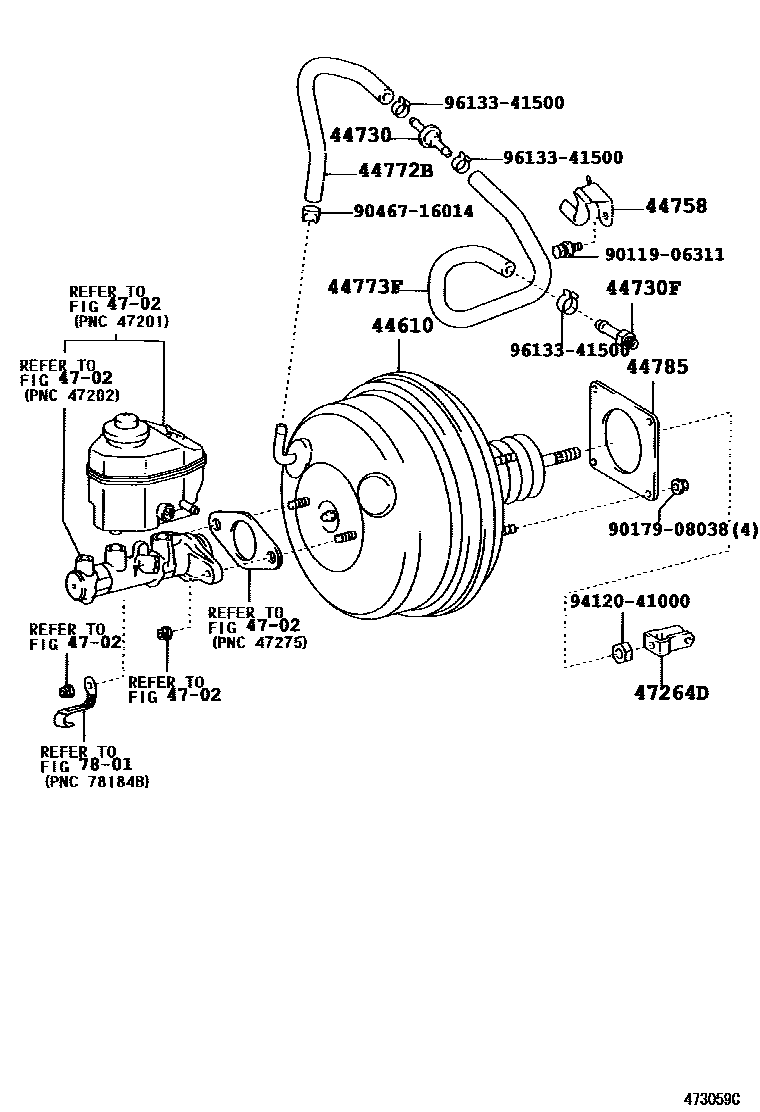

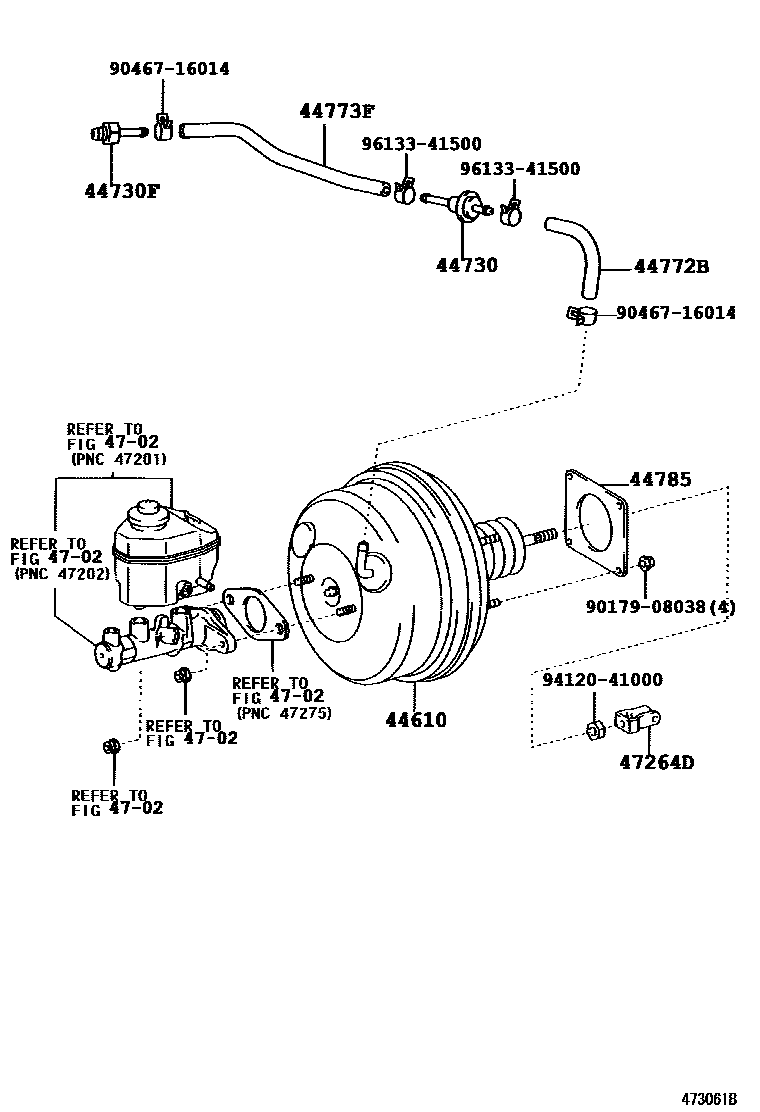

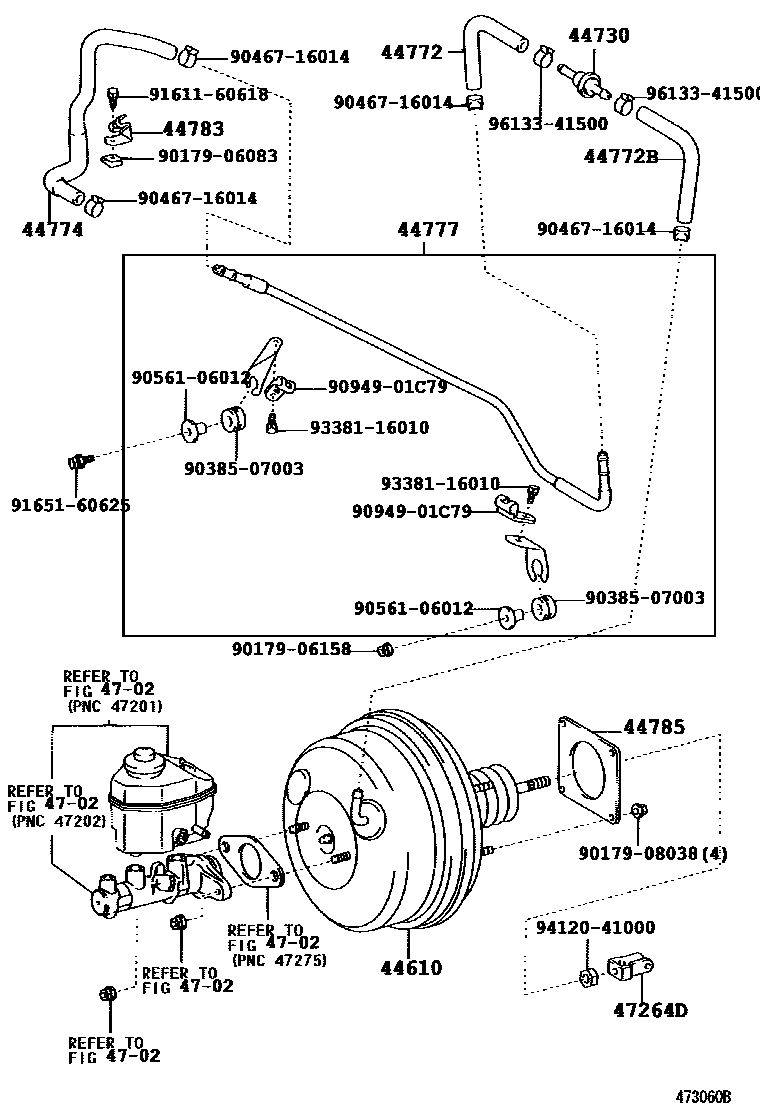

Toyota CAMRY 制动助力器和真空管 — Figure 4703
Toyota CAMRY EPC diagram 4703, 制动助力器和真空管, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-06220 · 44610-06250 · 44610-06270 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-10010 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51076 · 90404-51319 |
| 44758 | Vacuum check valve bracket | 44758-33130 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-06050 |
| 44772 | Hoses (check valve to connector tube) | 44772-06110 |
| 44772B | Hoses (check valve to brake booster) | 44772-06080 · 44772-06090 |
| 44773F | Hoses (connector to check valve) | 44773-06050 · 44773-06060 · 44773-06070 |
| 44774 | Hoses (joints to connector tubes) | 44774-06050 · 44774-06060 |
| 44777 | No. 1 Vacuum Hose Connector | 44770-06070 |
| 44783 | Vacuum hose clamp | 44783-28010 |
| 44785 | brake booster pad | 44785-YA020 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-12060 · 47264-63020 |
