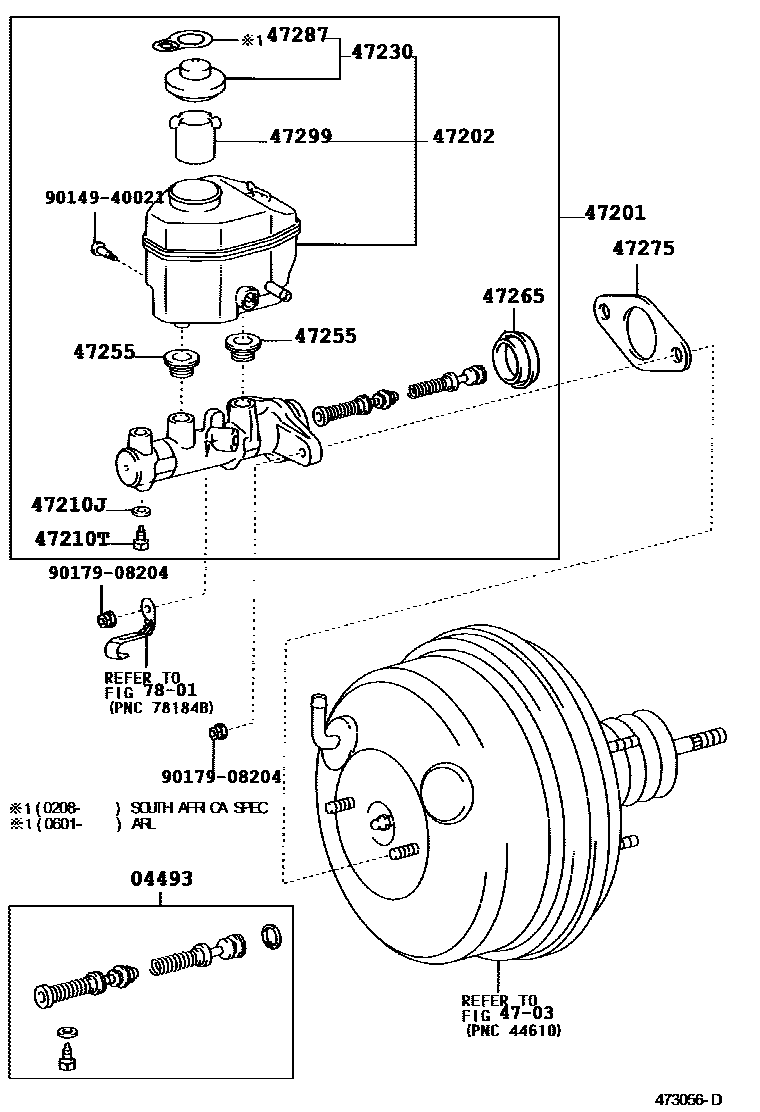

Toyota CAMRY 制动总泵 — Figure 4702
Toyota CAMRY EPC diagram 4702, 制动总泵, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-06090 · 04493-06100 · 04493-33150 · 04493-33160 |
| 47201 | Brake master cylinder sub-assembly | 47201-06090 · 47201-06100 · 47201-06110 · 47201-06180 · 47201-06190 · 47201-06200 · 47201-06230 · 47201-06240 · 47201-06270 · 47201-06280 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-06070 · 47220-06080 · 47220-06090 · 47220-06110 · 47220-06130 · 47220-06140 |
| 47210J | Gasket (for master cylinder) | 90029-43001 · 90430-06104 |
| 47210T | Bolt (for brake master cylinder) | 90109-06077 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-04040 · 47230-0K010 |
| 47255 | Master pump reservoir seal | 47255-16010 |
| 47265 | Master pump dust jacket | 47265-20050 |
| 47275 | brake master cylinder gasket | 47275-12020 |
| 47287 | brake fluid information label | 47287-20010 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 |
