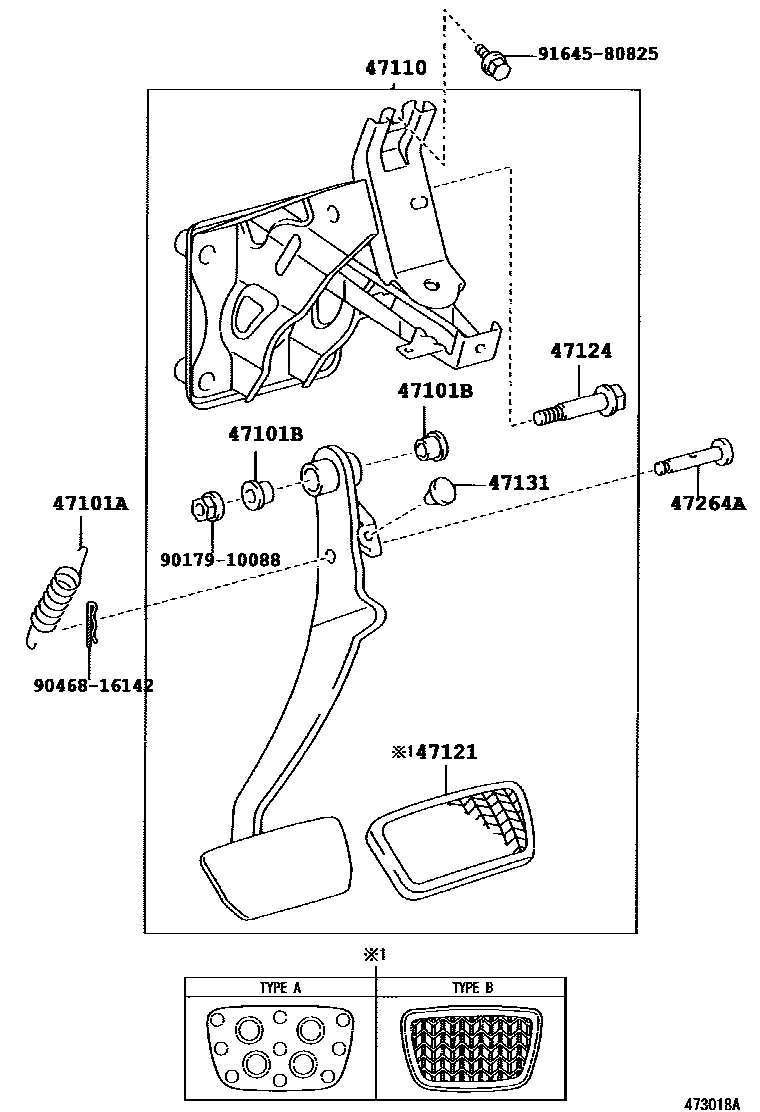

Toyota CAMRY Brake Pedal & Bracket — Figure 4701
Toyota CAMRY EPC diagram 4701, Brake Pedal & Bracket, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101A | Spring (for brake pedal return) | 90507-14051 |
| 47101B | Bushing (for brake pedal) | 90089-38004 |
| 47110 | Brake pedal bracket assembly | 47110-06070 · 47110-06080 · 47110-06090 · 47110-06100 · 47110-06110 · 47110-06120 |
| 47121 | brake pedal pad | 31321-52010 · 31321-53010 · 47121-50020 · 47121-53010 |
| 47124 | brake pedal shaft | 90109-10167 |
| 47131 | Bump pad (for brake light switch) | 90541-06036 |
| 47264A | Pin (for push rod) | 47148-33020 |
