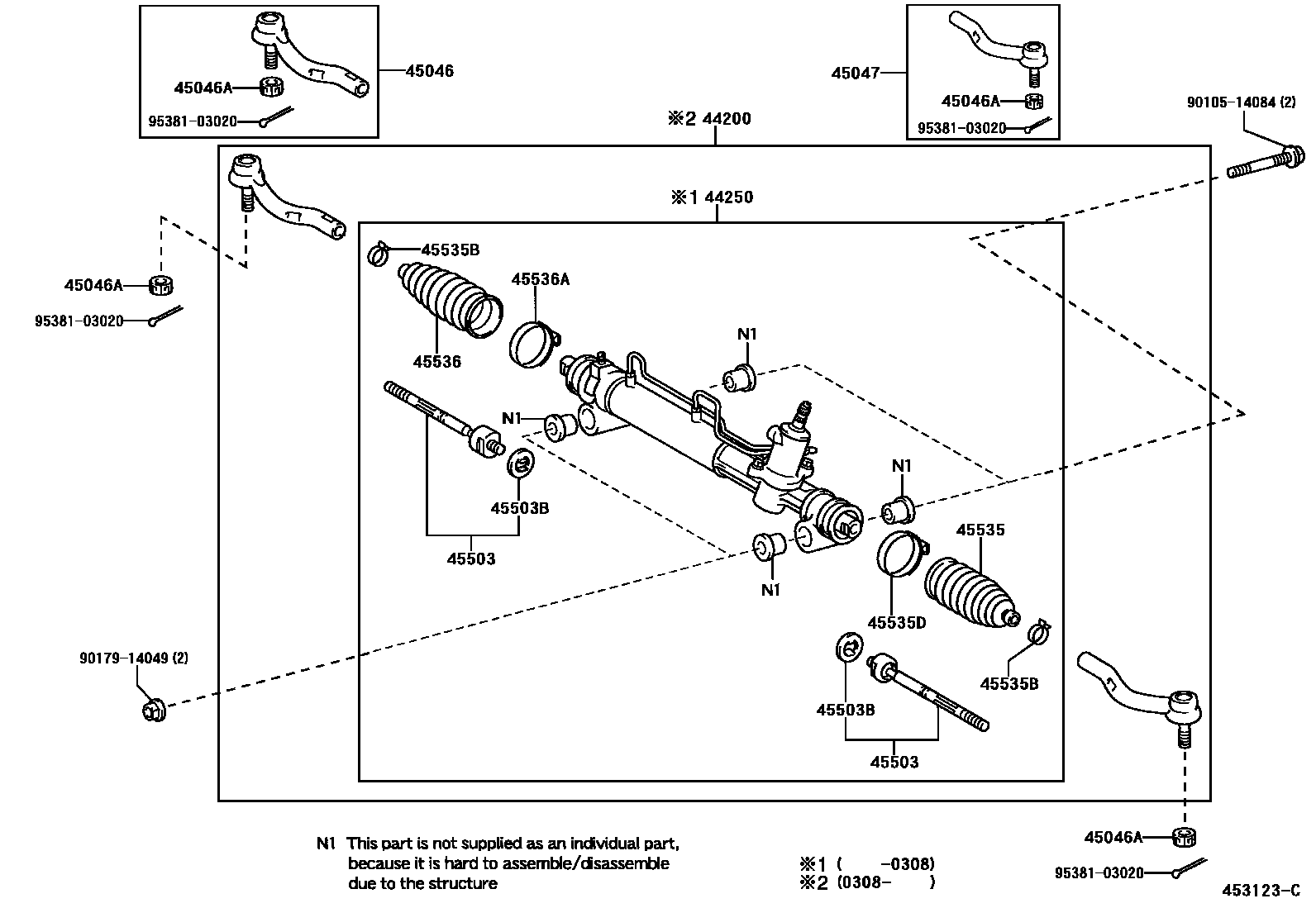

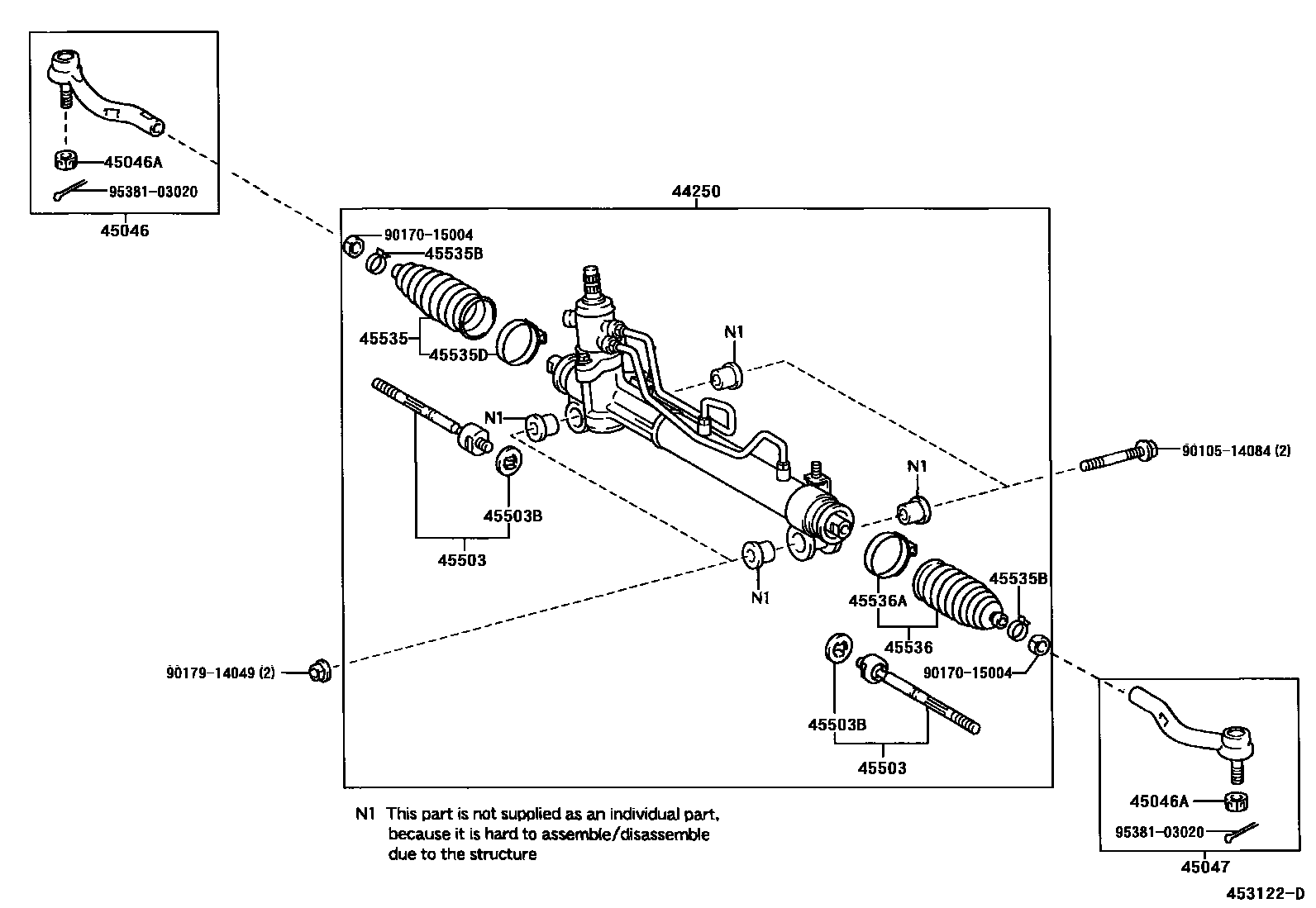

Toyota CAMRY 前转向齿轮和连杆 — Figure 4505
Toyota CAMRY EPC diagram 4505, 前转向齿轮和连杆, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

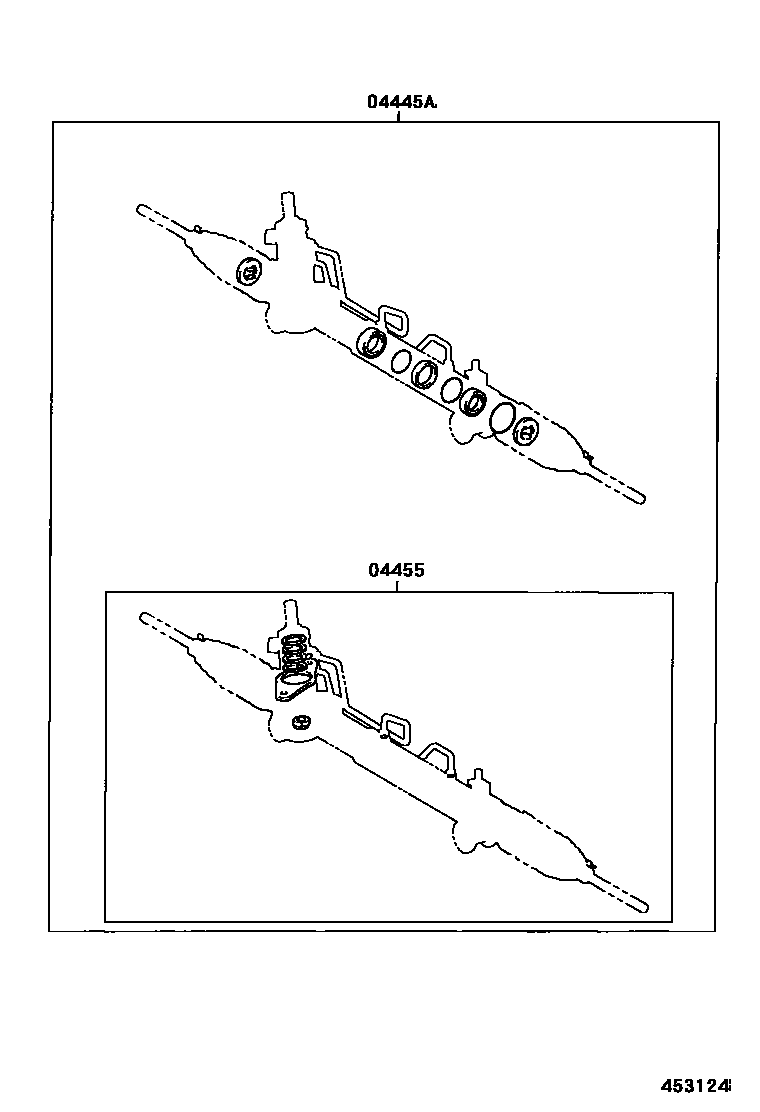

| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-33090 · 04445-8Y002 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-33030 · 04455-8Y002 |
| 44200 | Power steering tie rod assembly | 44200-33411 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-06210 · 44250-06211 · 44250-33410 |
| 45046 | Right tie rod end sub-assembly | 45046-29255 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45046-29255 |
| 45503 | Steering rack end sub-assembly | 45503-39135 |
| 45503B | Jaw washer (for steering rack end) | 90214-14002 |
| 45535 | No. 1 steering rack dust cover | 45535-07010 · 45535-09050 · 45535-33020 |
| 45535B | Clamp (for steering rack dust boot) | 90069-48008 · 90080-46153 · 90467-19021 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 90069-48007 · 90460-58006 |
| 45536 | No. 2 steering rack dust cover | 45535-07010 · 45535-09050 · 45535-33020 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90069-48007 · 90460-58006 |
