Toyota CAMRY 动力转向配管 — Figure 4503

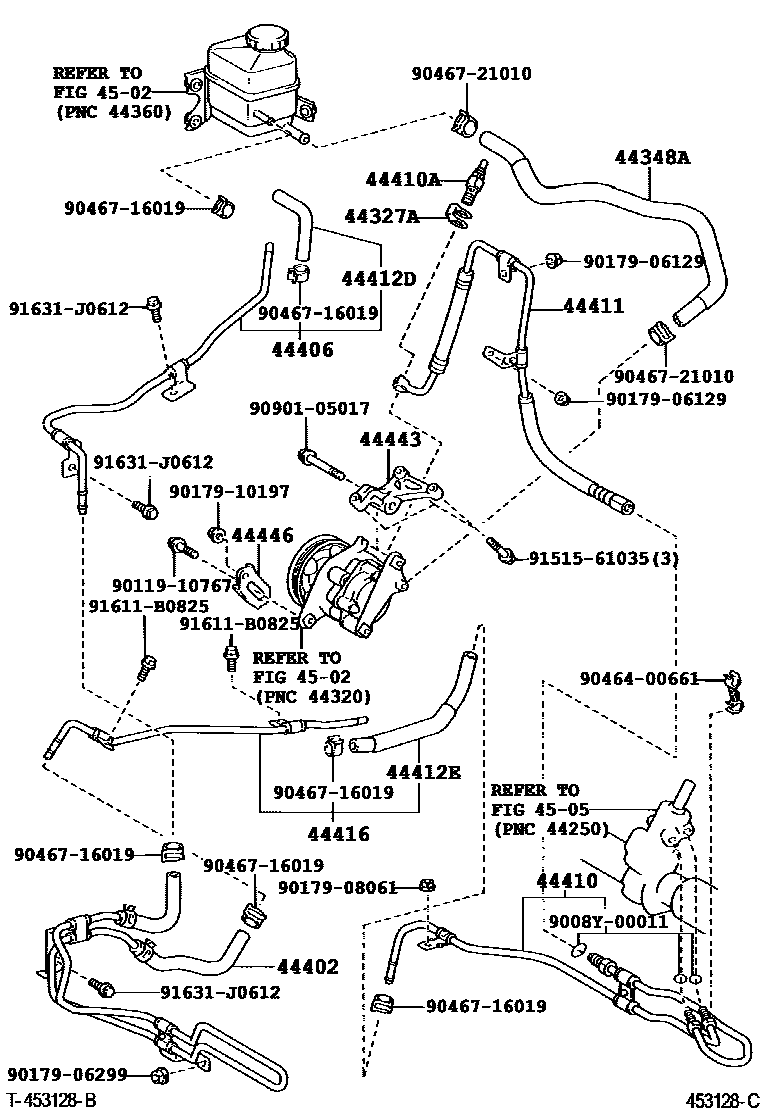

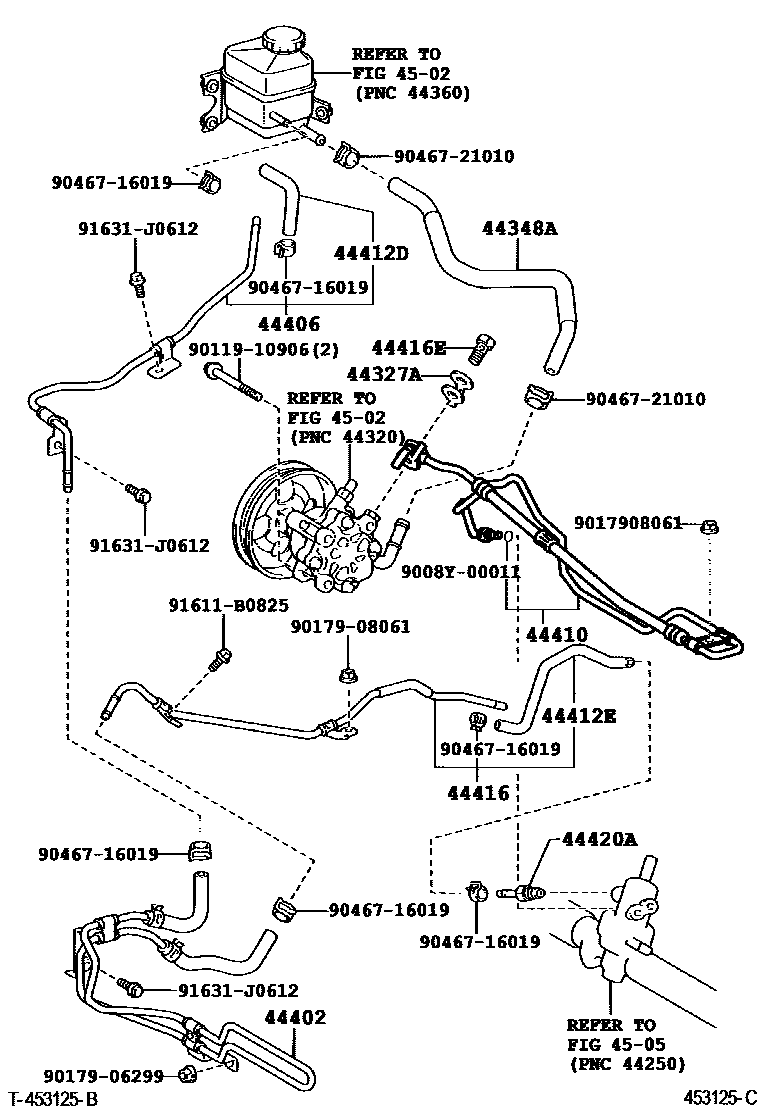

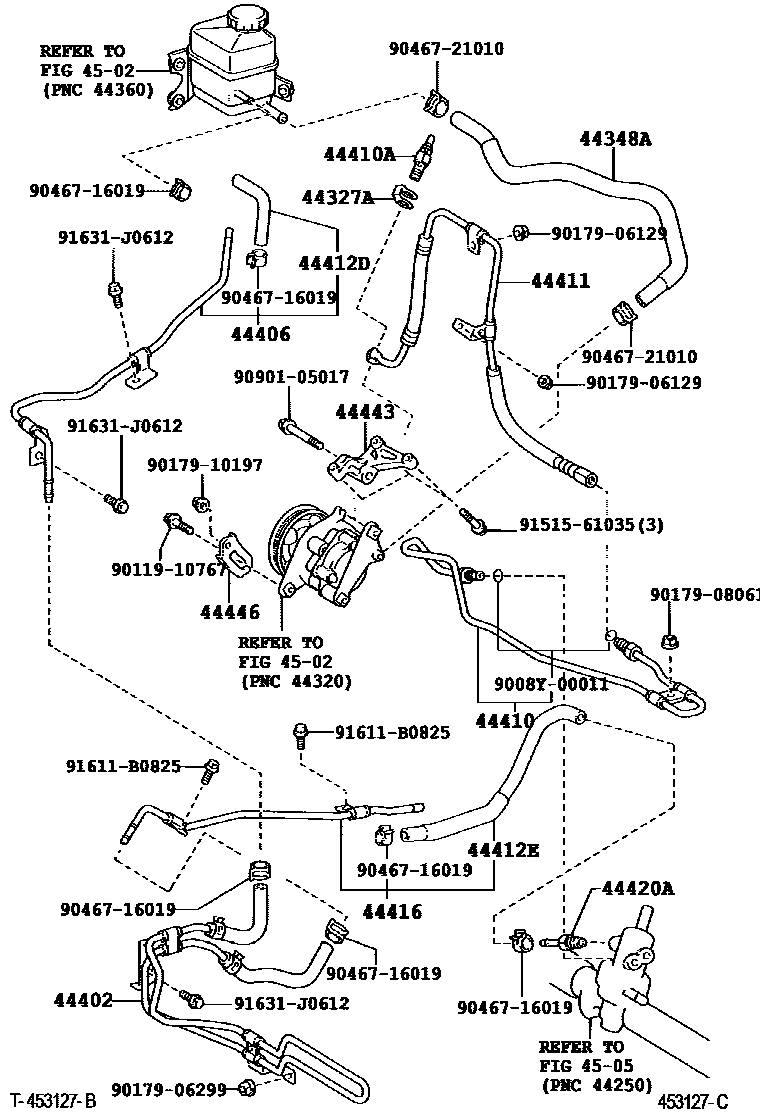

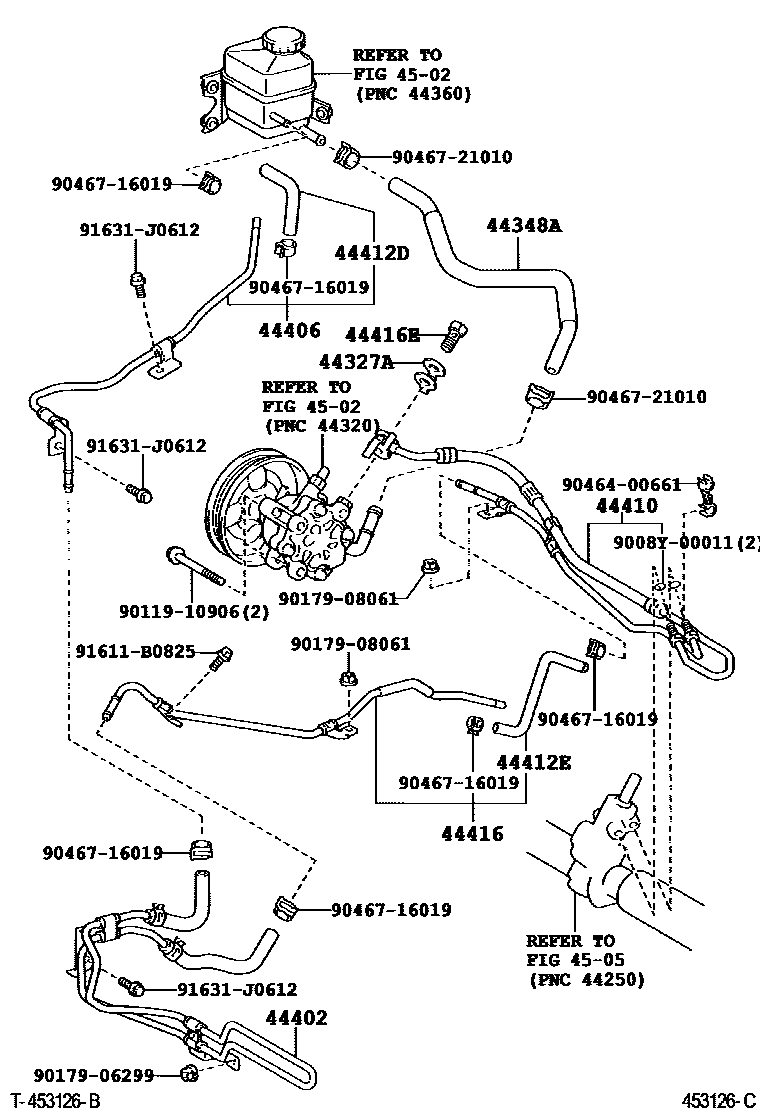

Toyota CAMRY EPC diagram 4503, 动力转向配管, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-30030 |
| 44348A | No. 1 hose (tank to pump) | 44348-06210 · 44348-06220 · 44348-06230 |
| 44402 | No. 1 power steering oil cooler sub-assembly | 44402-06060 |
| 44406 | Oil return pipe sub-assembly | 44406-06140 |
| 44410 | Pressure supply pipe assembly | 44410-06180 · 44410-06190 · 44410-06200 · 44410-06210 |
| 44410A | Connector bolt (for pressure supply pipe) | 44338-33090 |
| 44411 | pressure supply hose | 44411-06090 · 44411-06100 |
| 44412D | No. 1 oil return hose | 44412-8Y005 |
| 44412E | No. 2 oil return hose | 44412-8Y001 · 44412-8Y002 · 44412-8Y003 · 44412-8Y004 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-06090 · 44416-06110 · 44416-06140 · 44416-07050 |
| 44416E | Joint bolt (for oil return pipe) | 96341-41603 |
| 44420A | Oil return pipe assembly | 44420-06010 |
| 44443 | pump bracket | 44443-33041 · 44443-YC041 |
| 44446 | Adjust the stand | 44446-33010 · 44446-AC010 |
