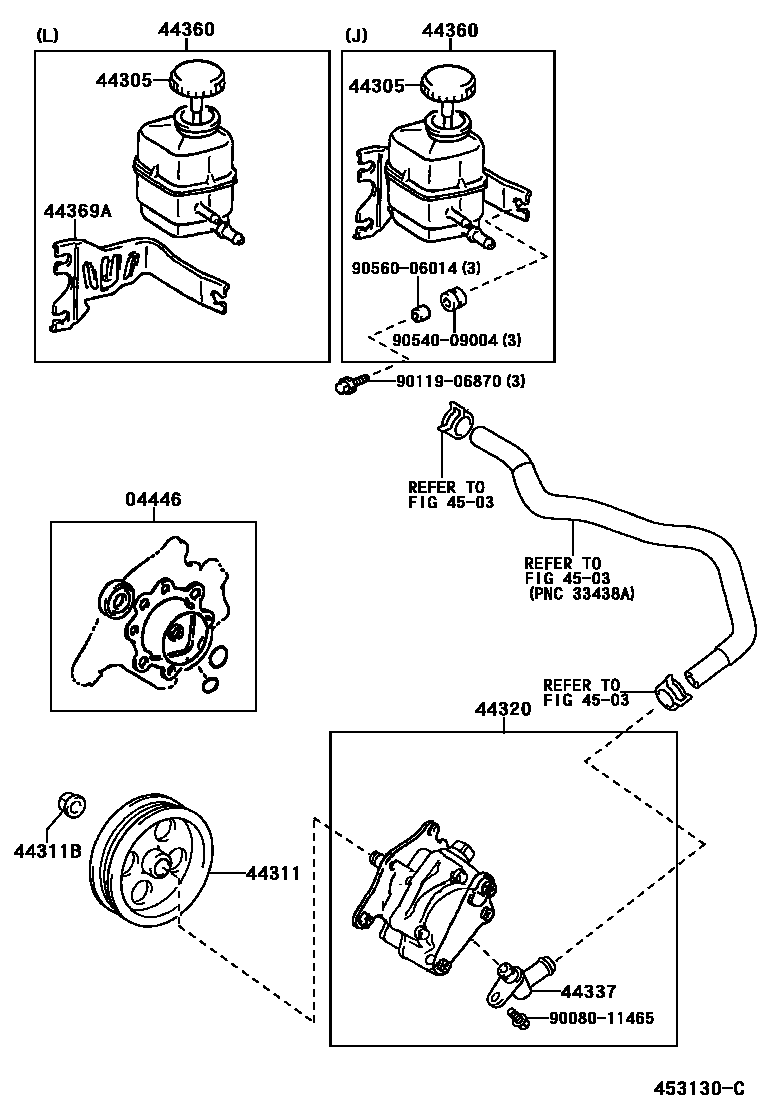

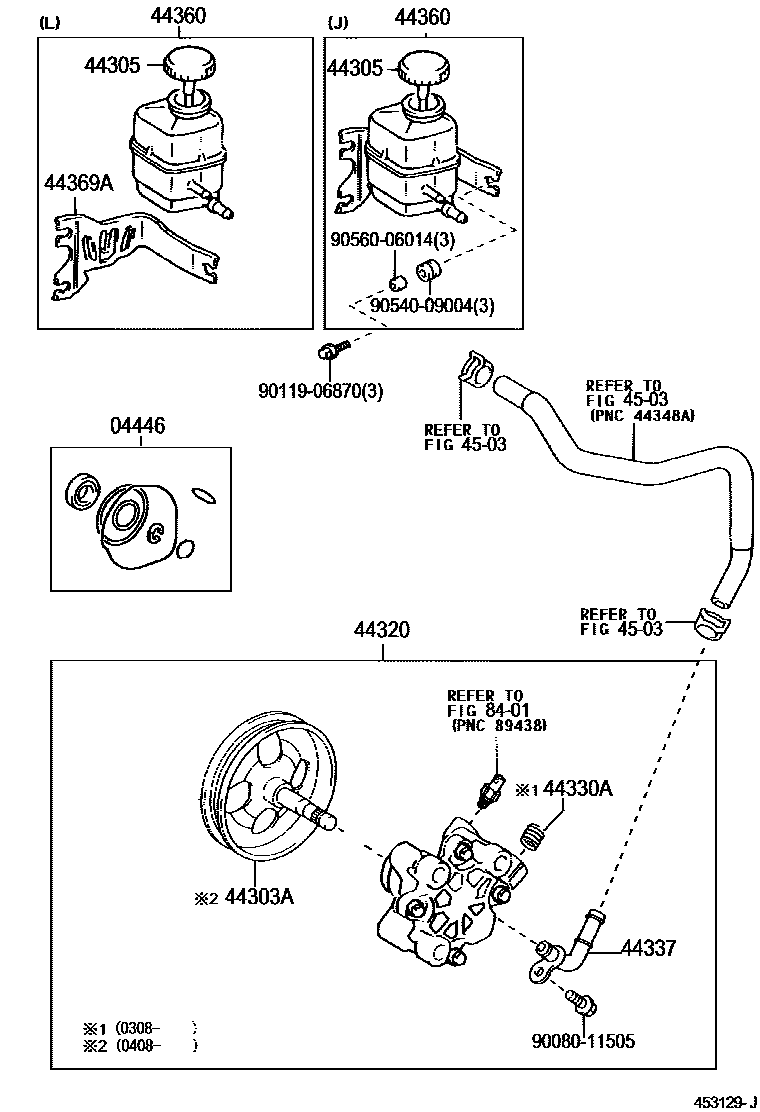

Toyota CAMRY 叶片泵和储油罐(动力转向) — Figure 4502
Toyota CAMRY EPC diagram 4502, 叶片泵和储油罐(动力转向), with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-06060 · 04446-06070 · 04446-0B030 |
| 44303A | Shaft sub-assembly with pulley | 44303-06040 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-06030 · 44305-32020 |
| 44311 | vane pump pulley | 44311-06030 |
| 44311B | Nut (for vane pump pulley) | 90080-17158 |
| 44320 | Vane pump assembly | 44310-06130 · 44320-06080 |
| 44330A | Compression spring (for flow control valve) | 90501-T0001 |
| 44337 | Power steering suction port connector | 44337-06030 · 44337-06060 |
| 44360 | Vane pump oil storage tank assembly | 44360-06010 · 44360-33020 |
| 44369A | No. 1 oil storage tank bracket | 44390-06010 |
