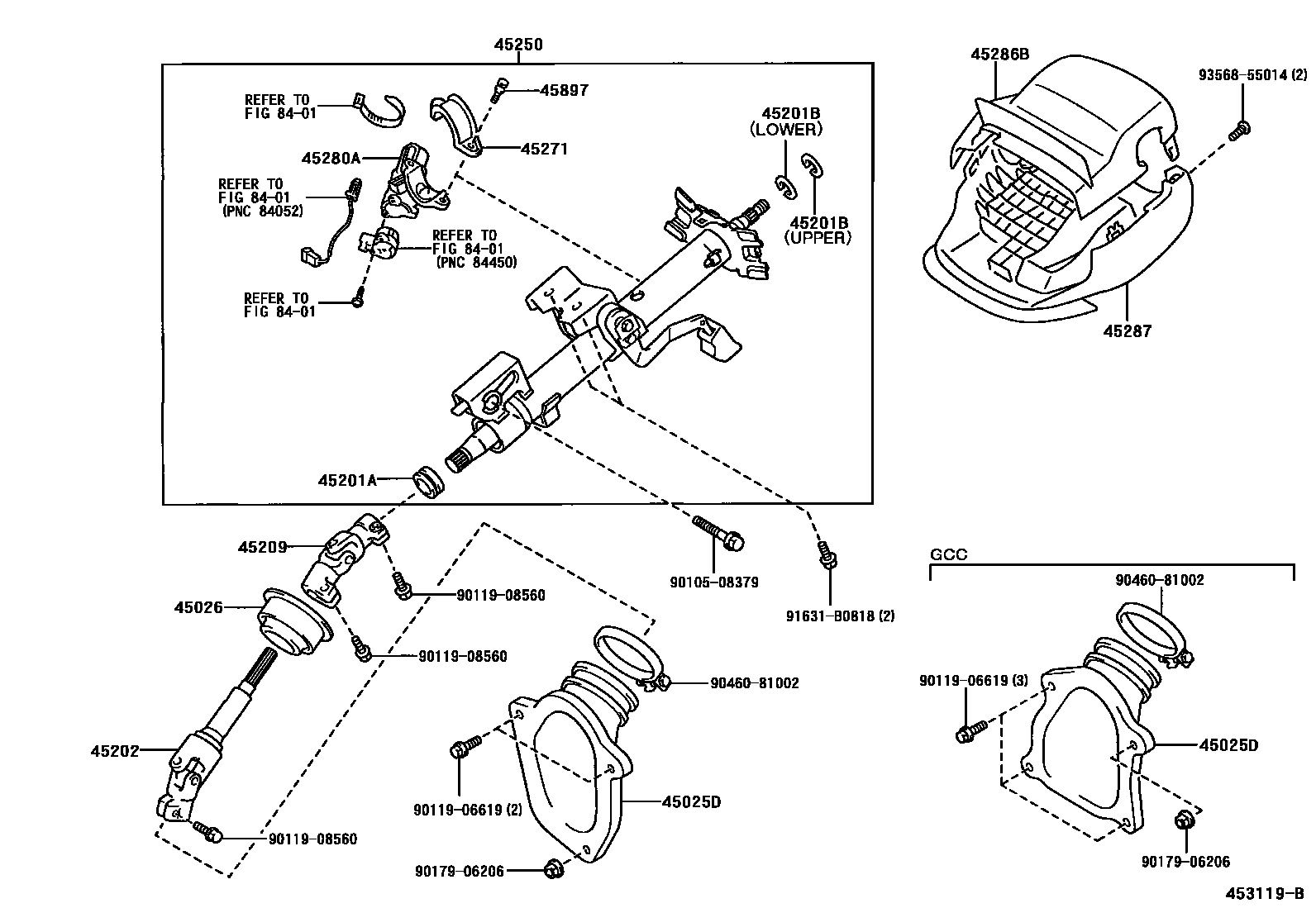

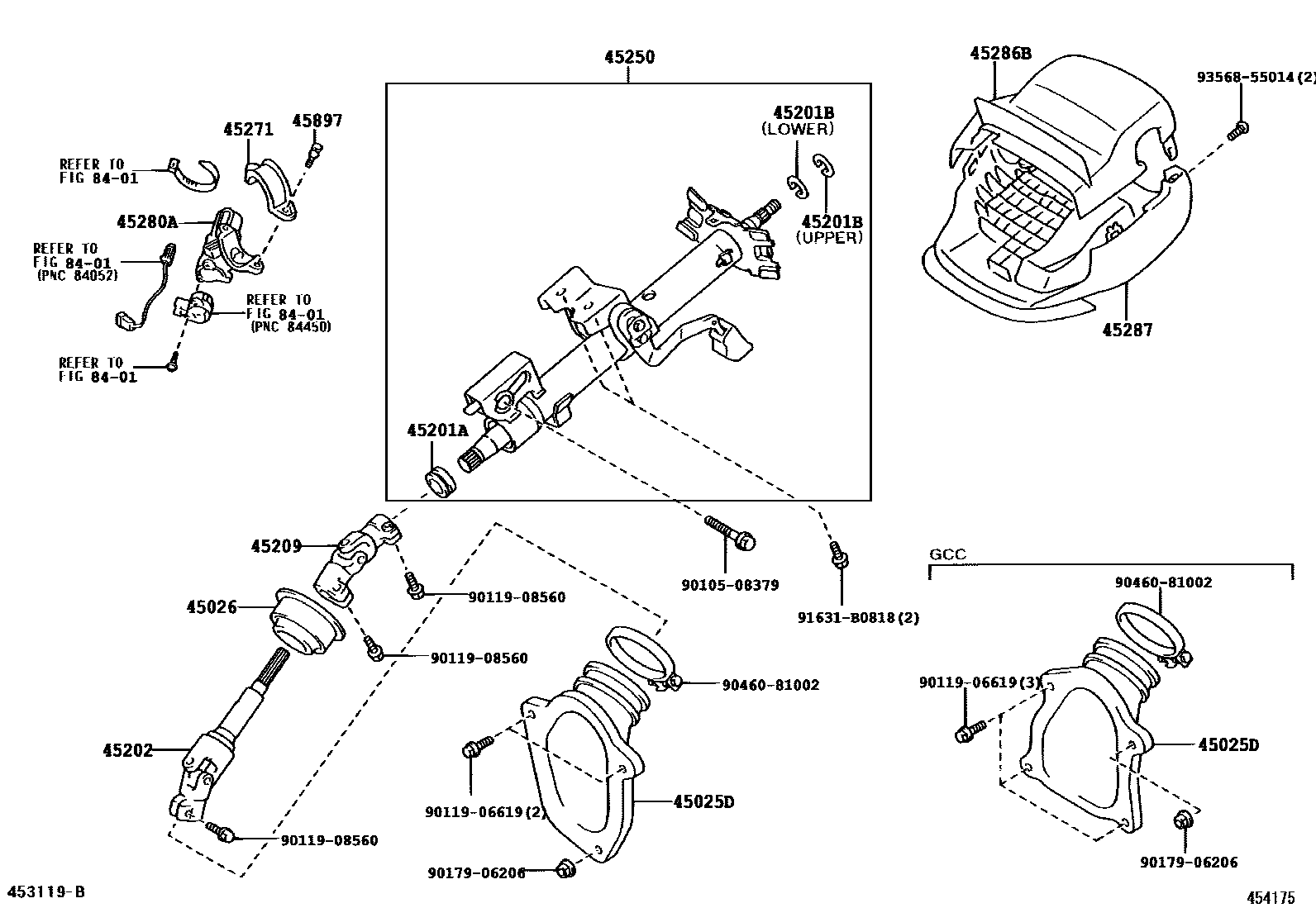

Toyota CAMRY Steering Column & Shaft — Figure 4501
Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-06030 · 45025-06040 |
| 45026 | No. 2 steering column hole cover sub-assembly | 45026-06040 · 45026-33050 |
| 45201A | Bearings (for steering spindle) | 45274-33040 · 45274-42010 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 · 90520-17269 |
| 45202 | Steering intermediate shaft sub-assembly | 45202-06020 · 45202-06030 · 45202-33120 · 45202-33130 |
| 45209 | Steering slip fork sub-assembly | 45209-33020 · 45209-33030 |
| 45250 | Steering column assembly | 45250-06370 · 45250-33590 |
| 45271 | Clamp on steering column | 45271-16020 |
| 45280A | Steering column upper bracket assembly | 45280-06040 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
