Toyota CAMRY Front Axle Hub — Figure 4303

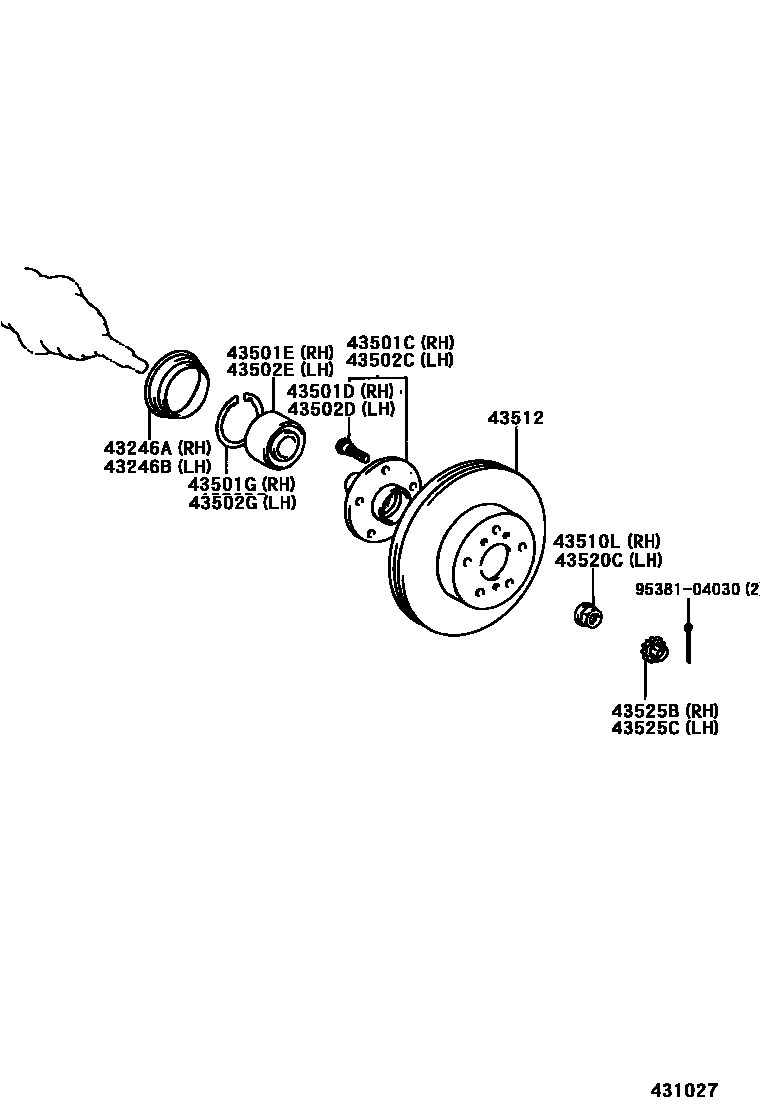

Toyota CAMRY EPC diagram 4303, Front Axle Hub, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43246A | No. 1 right front wheel bearing dust cover | 43246-YC010 · 43246-YC020 |
| 43246B | No. 1 left front wheel bearing dust cover | 43246-YC010 · 43246-YC020 |
| 43501C | Right front axle hub sub-assembly | 43502-YC010 · 43502-YC020 |
| 43501D | Hub bolt (for right front axle) | 90089-11034 |
| 43501E | Bearing (for right front axle hub) | 90080-36177 · 90369-43008 |
| 43501G | Hole snap ring (for right front axle hub) | 90521-88001 |
| 43502C | Left front axle wheel hub sub-assembly | 43502-YC010 · 43502-YC020 |
| 43502D | Hub bolt (for left front axle) | 90089-11034 |
| 43502E | Bearing (for left front axle hub) | 90080-36177 · 90369-43008 |
| 43502G | Hole snap ring (for left front axle hub) | 90521-88001 |
| 43510L | Nut (for right steering knuckle) | 90178-22001 |
| 43512 | front brake disc | 43512-06080 · 43512-33042 |
| 43520C | Nut (for left steering knuckle) | 90178-22001 |
| 43525B | Right front wheel adjustment lock cover | 43525-YB010 |
| 43525C | Left front wheel adjustment lock cover | 43525-YB010 |
