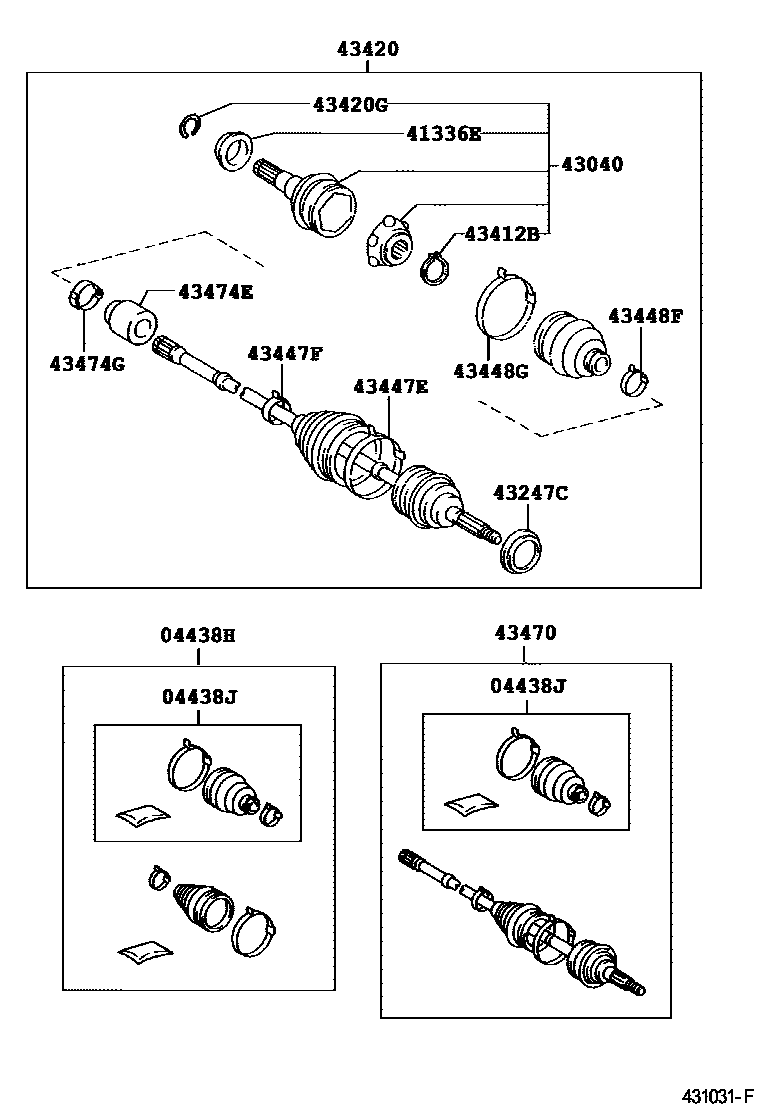

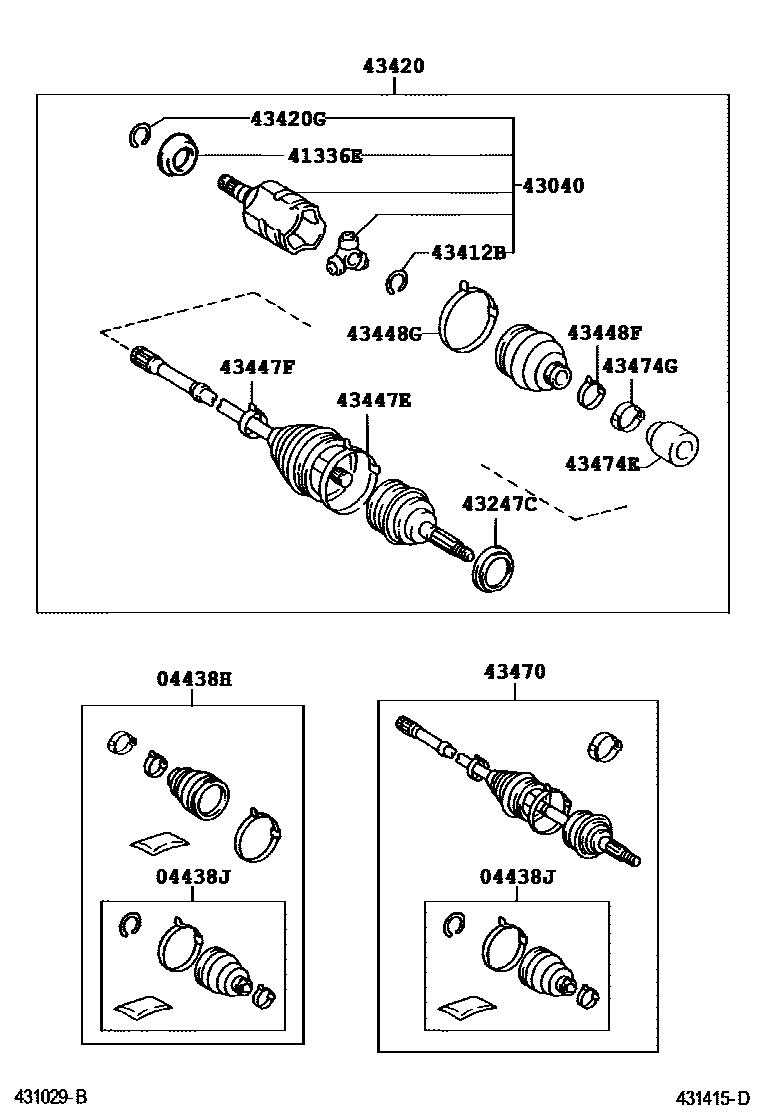

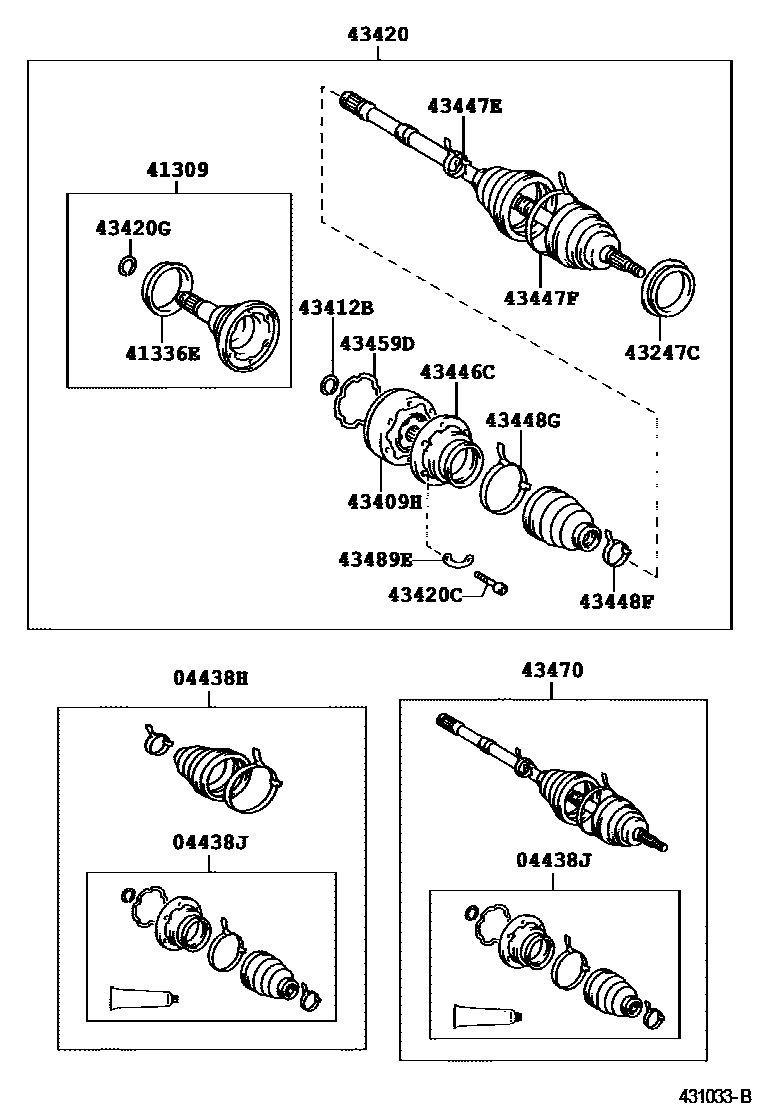

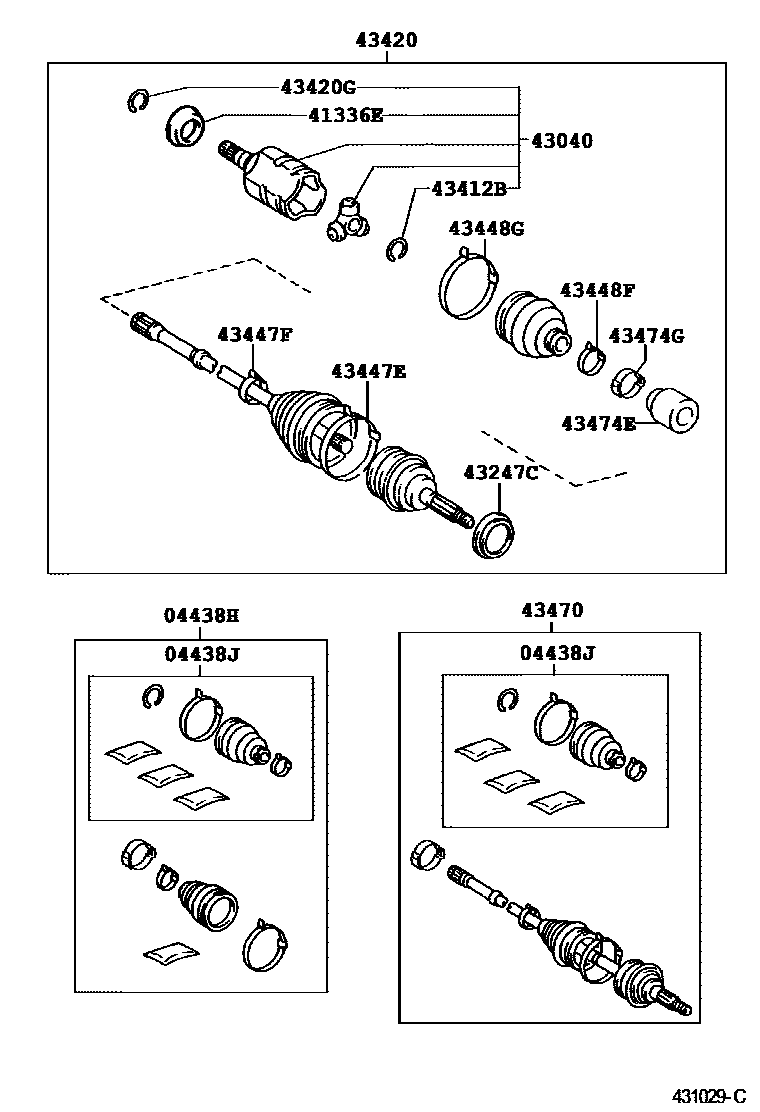

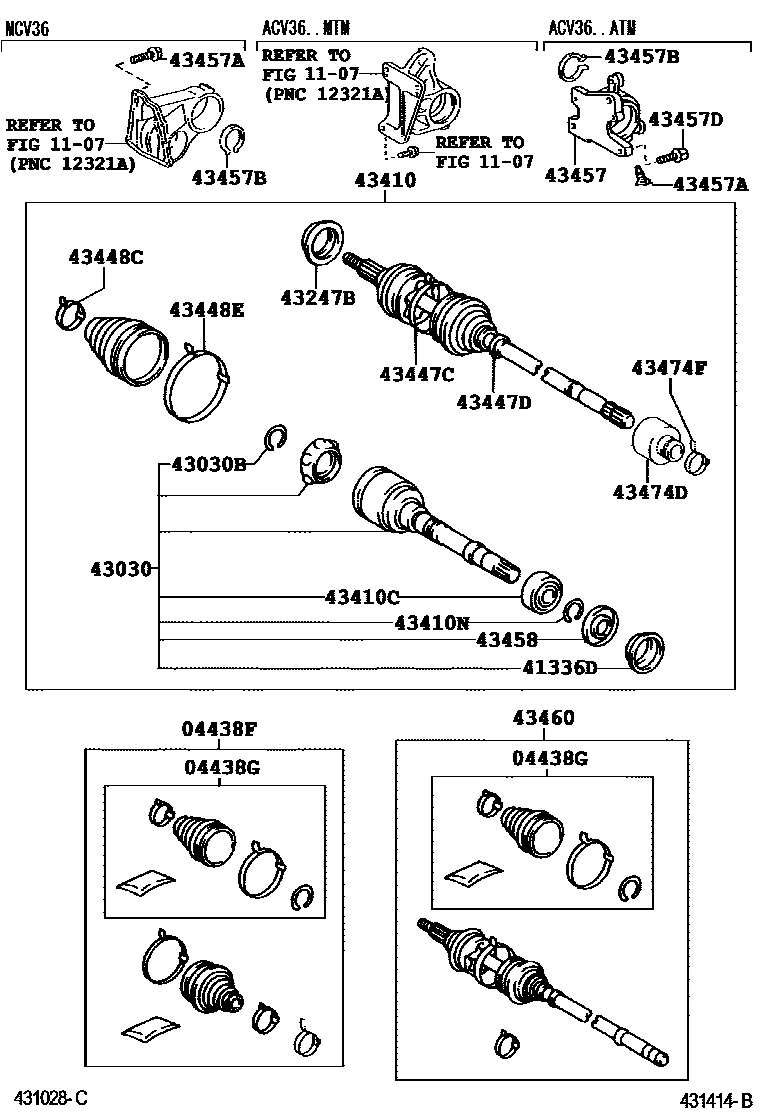

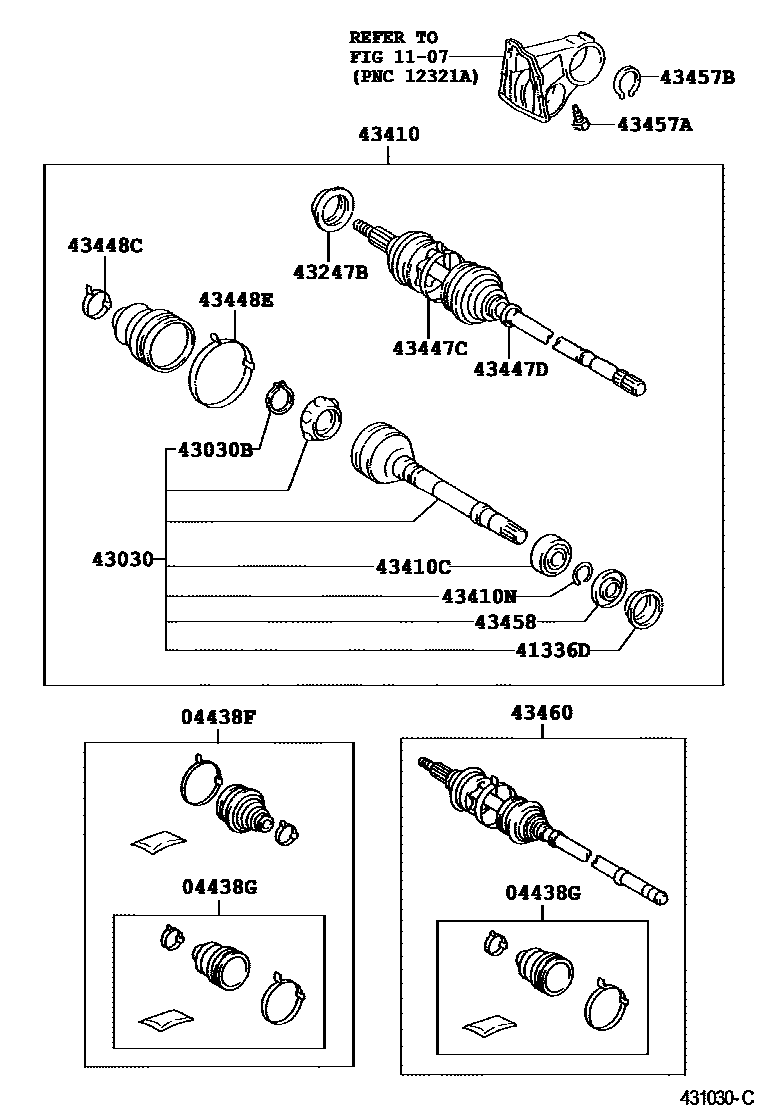

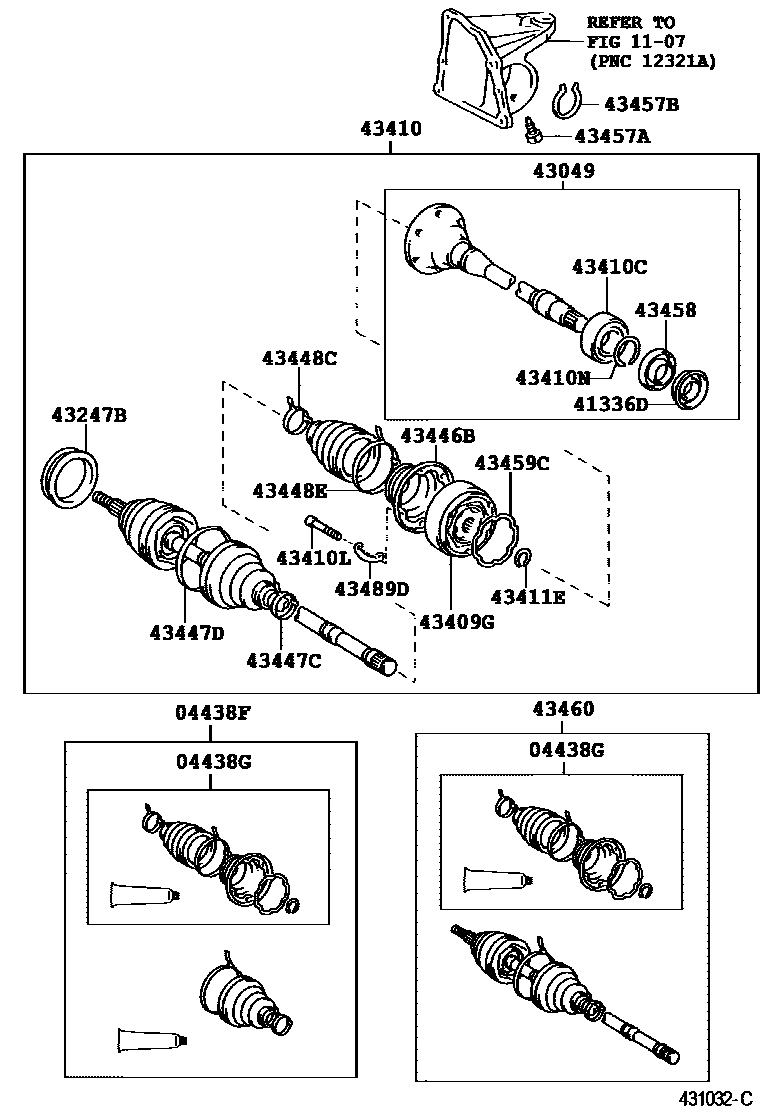

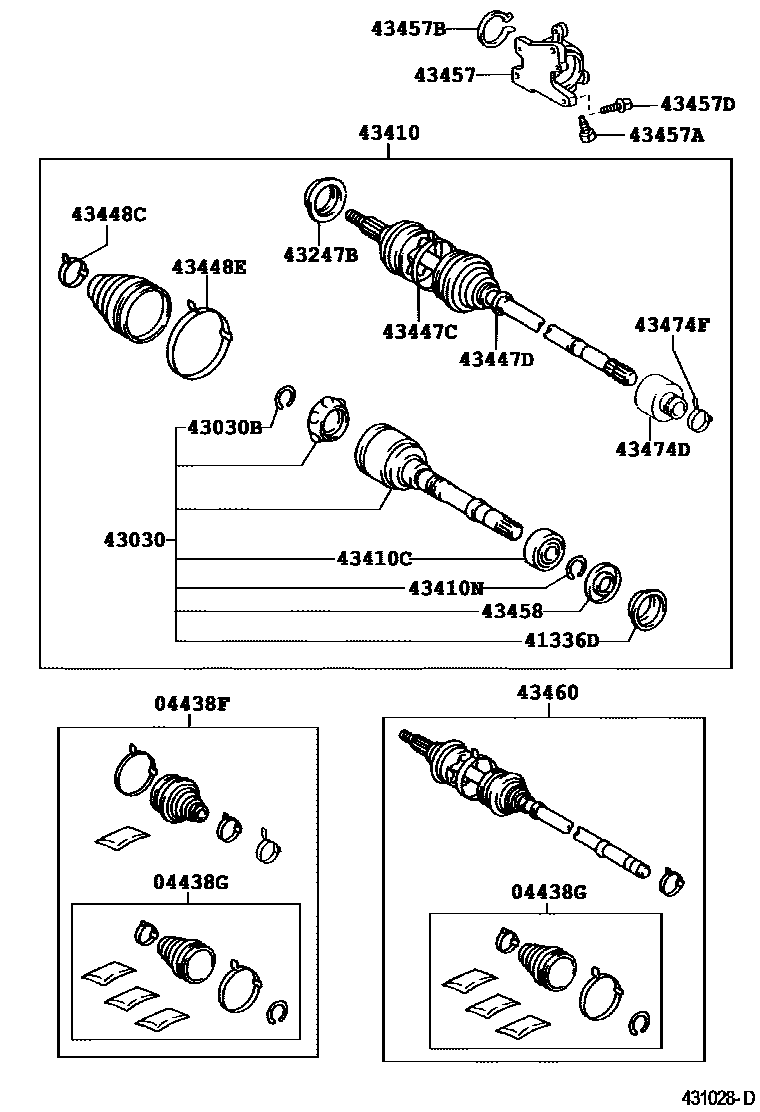

Toyota CAMRY Front Drive Shaft — Figure 4302
Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 8 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-06050 · 04427-06110 · 04427-06130 · 04427-06140 · 04427-06150 · 04438-06250 · 04438-06260 · 04438-06280 · 04438-06290 · 04438-33090 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-06040 · 04437-06060 · 04438-06250 · 04438-33012 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-06120 · 04428-06170 · 04428-06190 · 04438-06250 · 04438-06260 · 04438-06280 · 04438-06290 · 04438-33090 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-06250 · 04438-06530 · 04438-33012 |
| 41309 | Left differential side gear shaft sub-assembly | 41309-28030 · 41309-33020 |
| 41336D | Right front driveshaft dust cover | 41336-06070 · 41336-12020 |
| 41336E | Left front driveshaft dust cover | 41336-06050 · 41336-06080 · 41336-17020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-09020 · 43030-09040 · 43030-09050 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 43425-06020 · 43425-06060 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-09030 · 43040-09040 · 43040-09050 |
| 43049 | Front drive flange shaft sub-assembly | 43049-33040 · 43049-33050 |
| 43247B | No. 2 right front wheel bearing dust cover | 43247-06050 · 43247-06060 · 43247-12010 · 43247-33010 |
| 43247C | No. 2 left front wheel bearing dust cover | 43247-06050 · 43247-06060 · 43247-12010 · 43247-33010 |
| 43409G | Right front drive shaft cross-slot universal joint sub-assembly | 43409-28010 |
| 43409H | Left front drive shaft cross-slot universal joint sub-assembly | 43409-28010 |
| 43410 | Right front driveshaft assembly | 43410-06380 · 43410-06390 · 43410-06410 · 43410-06430 · 43410-06510 · 43410-06520 · 43410-06530 · 43410-06540 · 43410-33182 · 43410-33192 · 43410-33202 · 43410-33212 |
| 43410C | Bearings (for front driveshaft) | 90080-36200 · 90363-41002 |
| 43410L | Bolt (for right front driveshaft cross-recessed universal joint) | 90110-10015 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-06050 · 90520-38015 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 90520-26028 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-06020 · 43425-06060 · 90520-26028 |
| 43420 | Left front drive shaft assembly | 43420-06370 · 43420-06390 · 43420-06410 · 43420-06431 · 43420-06540 · 43420-06570 · 43420-06580 · 43420-33162 · 43420-33172 · 43420-33192 · 43420-48042 |
| 43420C | Bolt (for left front driveshaft cross-recessed universal joint) | 90110-10015 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-06010 · 90521-33002 |
| 43446B | Right front axle inner universal joint cover | 43446-28010 |
| 43446C | Left front axle inner universal joint cover | 43446-28010 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-06150 · 42345-06170 · 42345-06200 · 42345-48030 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-06140 · 42345-06160 · 42345-06210 · 42345-44020 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-06150 · 42345-06170 · 42345-06200 · 42345-48030 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-06140 · 42345-06160 · 42345-06210 · 42345-44020 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-06120 · 42345-06190 · 42345-14010 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-06130 · 42345-06180 · 90949-01340 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-06120 · 42345-06190 · 42345-14010 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-06130 · 42345-06180 · 90949-01340 |
| 43457 | drive shaft bearing bracket | 43457-06010 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-78002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43458 | Front drive shaft dust cover | 43458-06030 · 43458-12010 |
| 43459C | Right front driveshaft cross-recessed universal joint gasket | 43459-17010 |
| 43459D | Left front driveshaft cross-recessed universal joint gasket | 43459-17010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09R50 · 43460-09R60 · 43460-09R70 · 43460-09R90 · 43470-09U10 · 43470-39346 · 43470-39366 |
| 43470 | Left front outer drive universal joint shaft assembly | 43460-09R80 · 43460-09R90 · 43470-09T80 · 43470-09U00 · 43470-09U10 · 43470-39346 · 43470-39366 |
| 43474D | Right front driveshaft shock absorber | 43474-06030 |
| 43474E | Left front driveshaft shock absorber | 43474-06040 · 43474-06070 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-06110 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-06110 |
| 43489D | Right front driveshaft cross-recessed universal joint washer | 43489-17010 |
| 43489E | Left front driveshaft cross-recessed universal joint washer | 43489-17010 |
