Toyota CAMRY 前桥壳和差速器 — Figure 4301

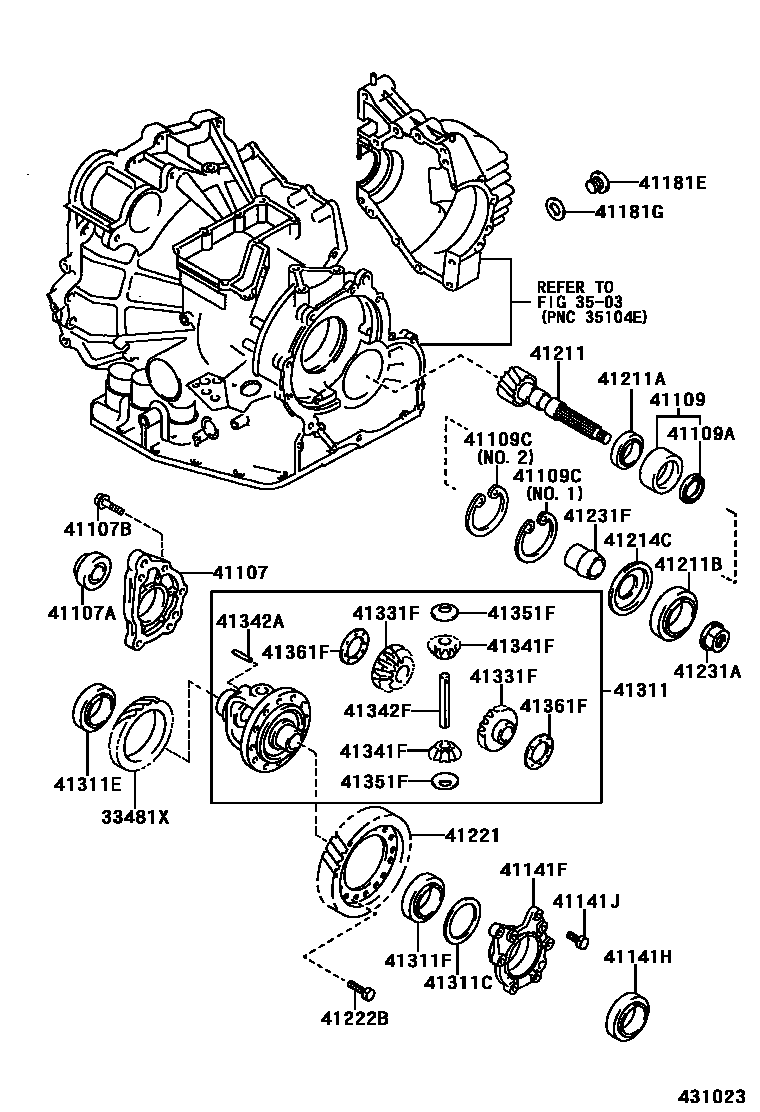

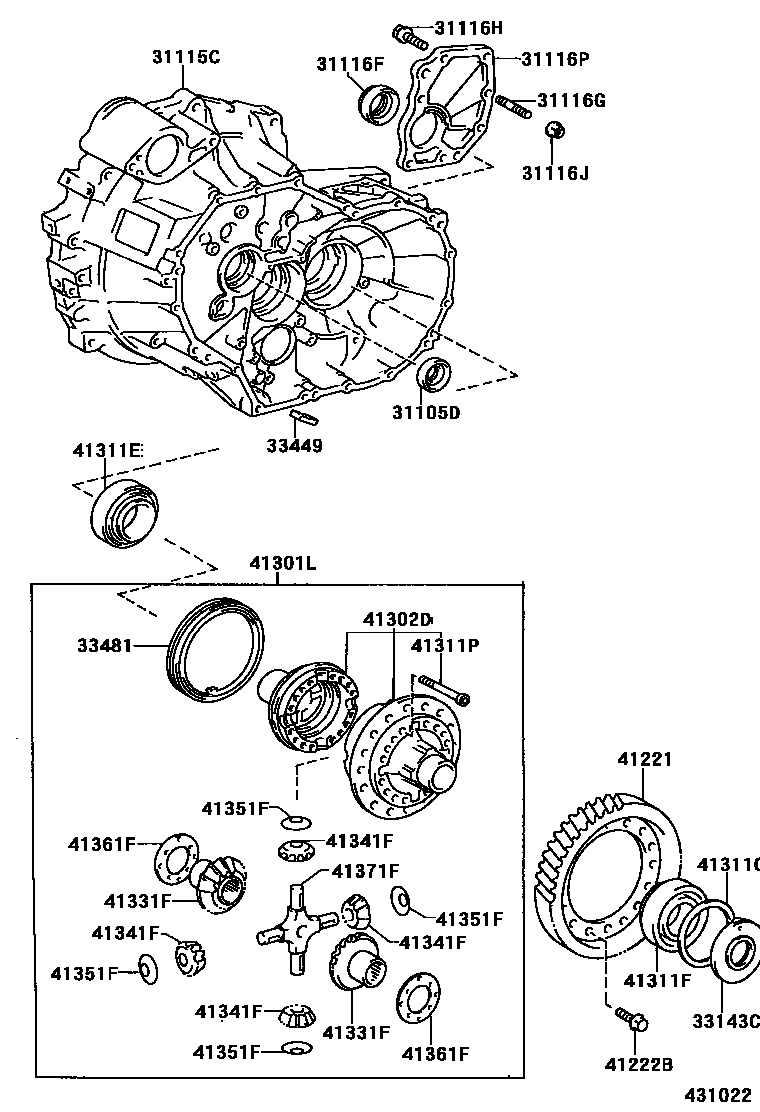

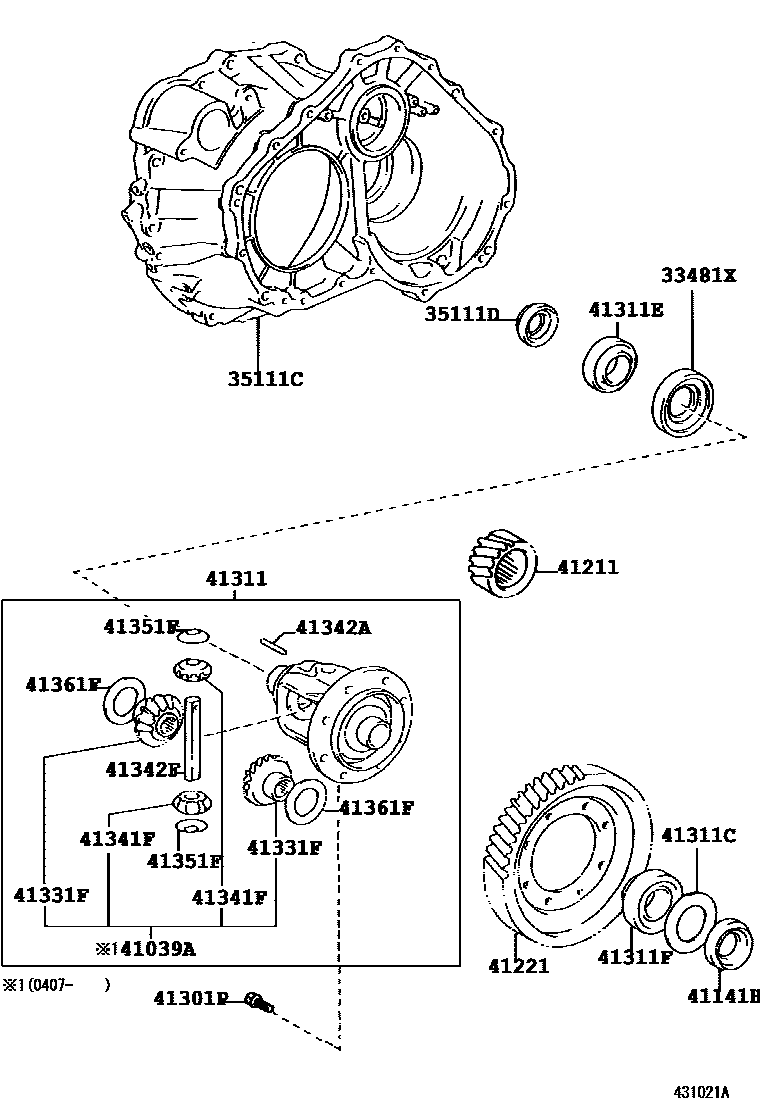

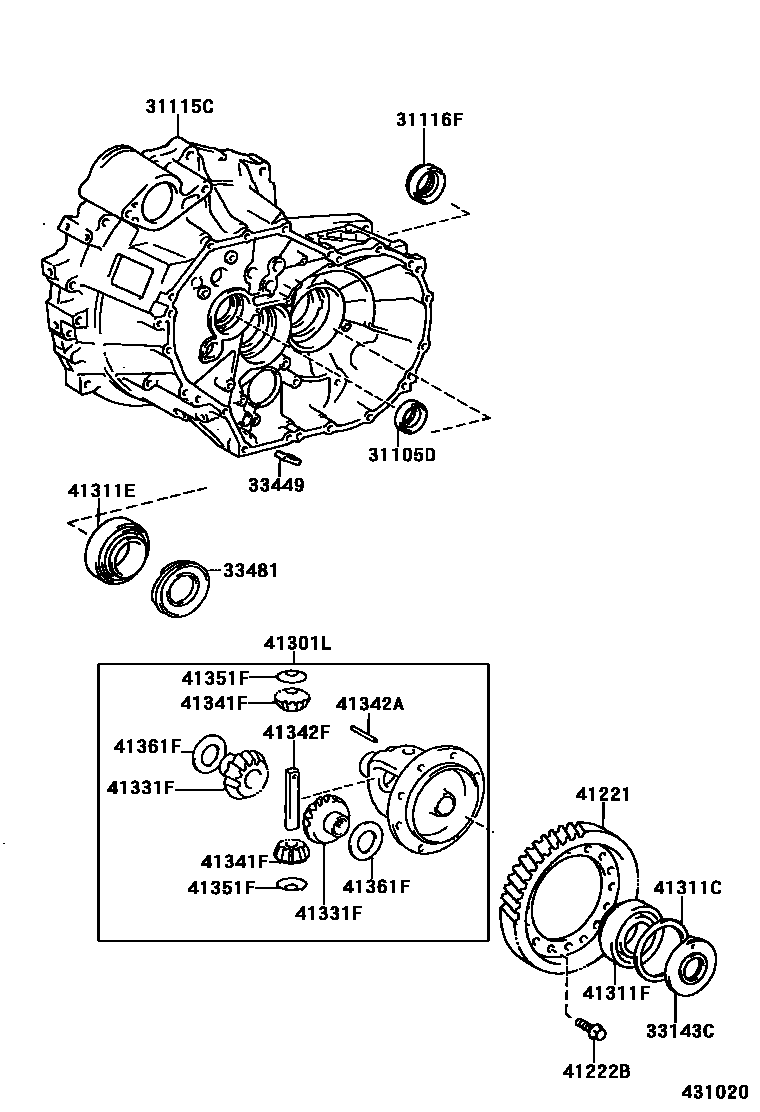

Toyota CAMRY EPC diagram 4301, 前桥壳和差速器, with 4 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-30006 · 90311-30017 |
| 31115C | Front transmission axle housing (MTM) | 31115-20071 · 31115-28021 · 31115-33014 |
| 31116F | Oil seal (for front transmission axle housing cover) | 90311-40004 · 90311-40025 · 90311-40030 |
| 31116G | Stud bolts (for front transaxle housing cover) | 90116-12019 |
| 31116H | Bolts (for front transaxle housing cover) | 90105-12135 |
| 31116J | Nut (for transaxle housing cover) | 90179-12068 |
| 31116P | Transmission axle housing cover | 31116-17010 |
| 33143C | Front differential oil baffle | 33143-20040 · 33143-28010 |
| 33449 | derailleur magnet | 33449-20010 |
| 33481 | Speedometer driving gear (MTM) | 33481-28050 · 33481-33011 |
| 33481X | speedometer drive gear | 33481-28060 · 33481-33030 |
| 35111C | Transmission axle housing | 35105-44011 · 35105-44030 · 35105-44060 |
| 35111D | Oil seal (for transaxle housing) | 90311-40026 · 90311-40031 |
| 41039A | Differential gear assembly | 41039-28020 |
| 41107 | Front differential oil seal race sub-assembly | 41107-33030 |
| 41107A | Oil seal (for front differential oil seal race) | 90311-40028 |
| 41107B | Bolt (for front differential oil seal race) | 90105-08331 |
| 41109 | Differential driving pinion bearing cover sub-assembly | 41109-33020 |
| 41109A | Oil seal (for differential drive pinion bearing housing) | 90310-35007 |
| 41109C | Hole snap ring (for differential drive pinion bearing housing) | 90521-79008 · 90521-83002 |
| 41141F | Front differential side bearing retainer | 41101-33050 |
| 41141H | Oil seal (for differential side bearing retainer) | 90311-50028 · 90311-50029 · 90311-50033 |
| 41141J | Bolt (for front differential side bearing retainer) | 90105-08050 · 90105-08062 · 90109-08242 |
| 41181E | Screw plug (for front differential drain port) | 90341-18021 |
| 41181G | Gasket (for front differential drain plug) | 90430-18008 |
| 41211 | Differential drive pinion | 41211-33040 · 41211-33110 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-36003 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-40074 |
| 41214C | Front differential drive pinion oil retaining ring | 41214-33010 |
| 41221 | Front differential ring gear | 41221-12240 · 41221-20400 · 41221-28130 · 41221-33040 · 41221-33110 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-12154 · 90105-12319 |
| 41231A | Drive pinion lock nut | 90179-24006 |
| 41231F | Front differential drive pinion bearing spacer | 41231-33010 |
| 41301L | No. 1 front differential housing sub-assembly | 41301-28070 · 41301-33010 |
| 41301P | Screw (for front differential case) | 90105-12303 |
| 41302D | No. 2 front differential housing sub-assembly | 41302-20040 |
| 41311 | front differential case | 41301-33020 · 41301-33070 · 41301-33110 |
| 41311C | Rear gasket (for front differential case) | 90564-56055 · 90564-56056 · 90564-56057 · 90564-56058 · 90564-56059 · 90564-56060 · 90564-56061 · 90564-56062 · 90564-56063 · 90564-56064 · 90564-56065 · 90564-56066 · 90564-56067 · 90564-56068 · 90564-56069 · 90564-56070 · 90564-56071 · 90564-56072 · 90564-68006 · 90564-68007 · 90564-68008 · 90564-68009 · 90564-68010 · 90564-68011 · 90564-68012 · 90564-68013 · 90564-68014 · 90564-68015 · 90564-68016 · 90564-68017 · 90564-68018 · 90564-68019 · 90564-68020 · 90564-68021 · 90564-68022 · 90564-68023 · 90564-68024 · 90564-68025 · 90564-68026 · 90564-68027 · 90564-68028 · 90564-68029 · 90564-68030 · 90564-68031 · 90564-68032 · 90564-68033 · 90564-68034 · 90564-68035 · 90564-68036 · 90564-68037 · 90564-68038 · 90564-68039 · 90564-68040 · 90564-68041 · 90564-68042 · 90564-68043 · 90564-76001 · 90564-76002 · 90564-76003 · 90564-76004 · 90564-76005 · 90564-76006 · 90564-76007 · 90564-76008 · 90564-76009 · 90564-76010 · 90564-76011 · 90564-76012 · 90564-76013 · 90564-76014 · 90564-76015 · 90564-76016 · 90564-76017 · 90564-76018 |
| 41311E | Roller cone bearing (for front differential housing) | 90366-50084 · 90366-57001 · 90366-57026 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-50014 · 90366-50030 · 90366-50072 · 90366-50078 |
| 41311P | Bolt (for front differential case) | 90149-10003 |
| 41331F | Front differential side gear | 41331-17010 · 41331-28020 · 41331-33030 |
| 41341F | Front differential planetary gear | 41341-14041 · 41341-20020 · 41341-24010 · 41341-28010 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-28010 · 41342-33010 · 41342-33040 |
| 41351F | Front differential planetary gear thrust washer | 41351-20010 · 41351-28010 · 41351-30060 · 41351-33011 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-28230 · 41361-28240 · 41361-28250 · 41361-28260 · 41361-33010 · 41362-17010 · 41362-17020 · 41362-17030 · 41362-17040 · 41362-17050 · 41362-17060 · 41362-17070 · 41362-33080 · 41363-33010 |
| 41371F | Front differential cross shaft | 41371-32010 |
