Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

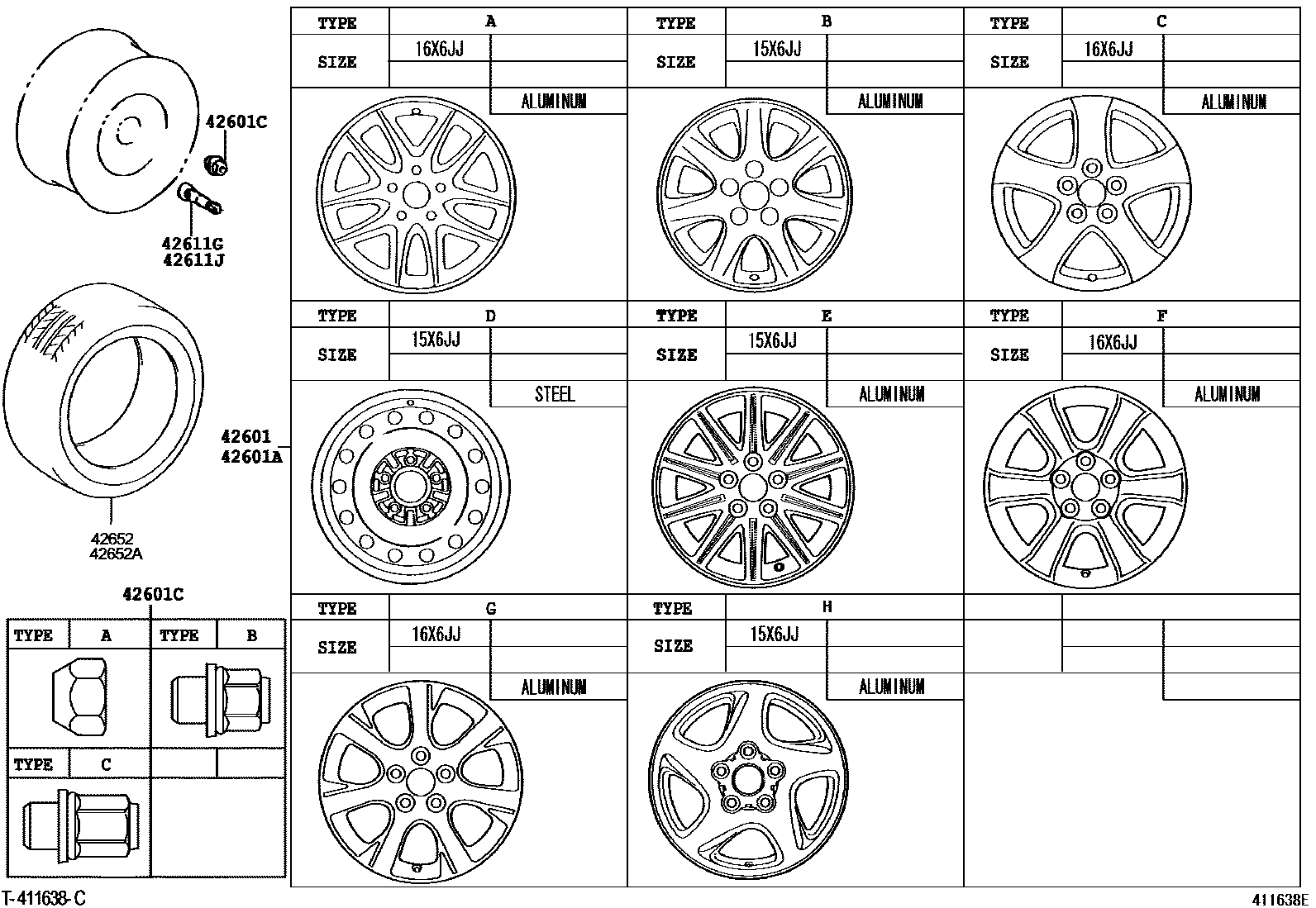

| 42601 | spoke wheel | 42611-YC090 · 42611-YC100 · 42611-YC110 · 42611-YC120 · 42611-YC130 · 42611-YC140 · 42611-YC150 · 42611-YF070 |
| 42601A | Spoke wheel (for spare tire) | 42611-YC090 · 42611-YC100 · 42611-YC110 · 42611-YC120 · 42611-YC130 · 42611-YC140 · 42611-YC150 · 42611-YF070 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 · 90942-01058 |

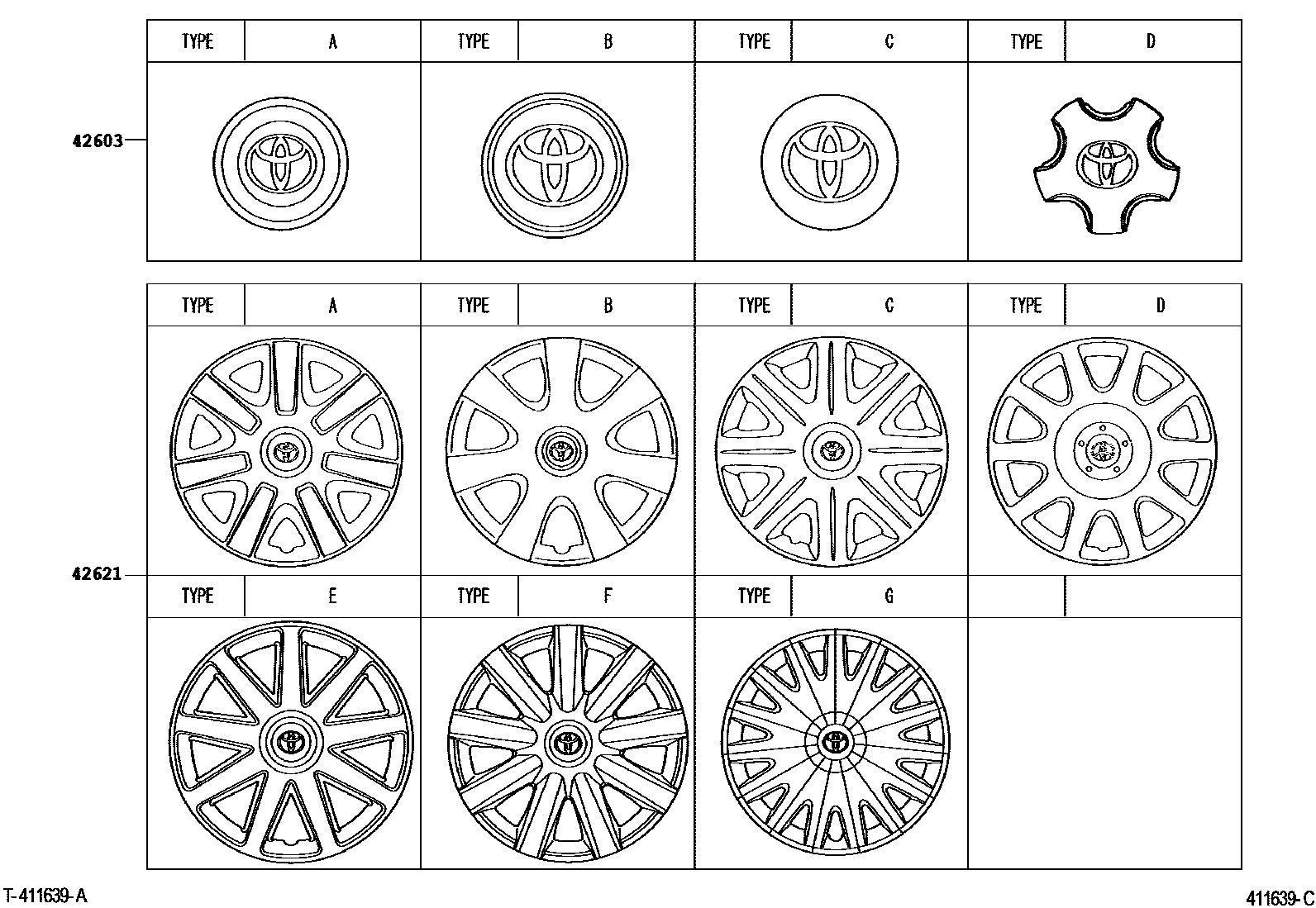

| 42603 | Wheel hub decorative parts sub-assembly | 42603-33070 · 42603-33140 · 42603-YC040 · 42603-YF020 · 42603-YF050 |
| 42611G | Valve (for tubeless tires) | 90942-05004 |
| 42611J | Valve (for tubeless spare tire) | 90942-05004 |
| 42621 | wheel cover | 42621-YC260 · 42621-YC270 · 42621-YC310 · 42621-YC320 · 42621-YC330 · 42621-YF030 · 42621-YF040 |
| 42652 | tires | 42652-06571 · 42652-06590 · 42652-06610 · 42652-06620 · 42652-06630 · 42652-YC160 |
| 42652A | Tire (for Spare Wheel) | 42652-06571 · 42652-06590 · 42652-06610 · 42652-06620 · 42652-06630 · 42652-YC160 |
